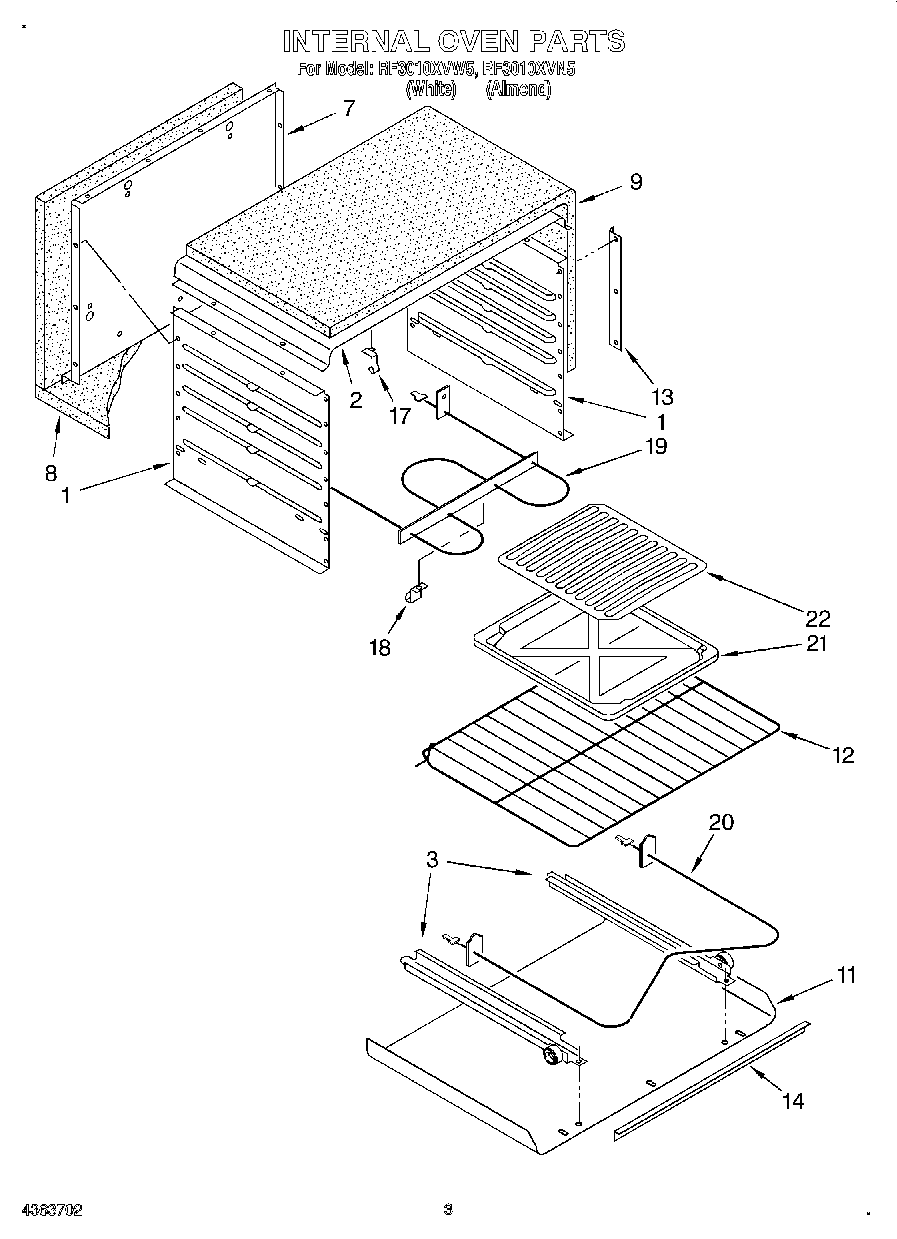

RF3010XVN5 02 – INTERNAL OVEN

Products

Position	Product
1	Liner, Oven Side (2)
2	Oven, Top
3	Track, Broiler (Left Hand)
3	Track, Broiler (Right Hand)
7	Backliner, Oven
8	WPW10208653 Whirlpool Insulation
9	Insulation
11	Bottom, Oven
12	Rack, Oven (2)
13	Support, Liner
14	Support, Oven
17	98005642 Whirlpool Clip
18	Support, Element
18	Screw
18	WP308685 Whirlpool Microwave Screw
20	Screw, 10-32 X 1/2 (1)
20	WP4314958 Whirlpool Bake Element
21	4396923 Whirlpool Broil Pan Set Gray Porcelain
22	Grid
