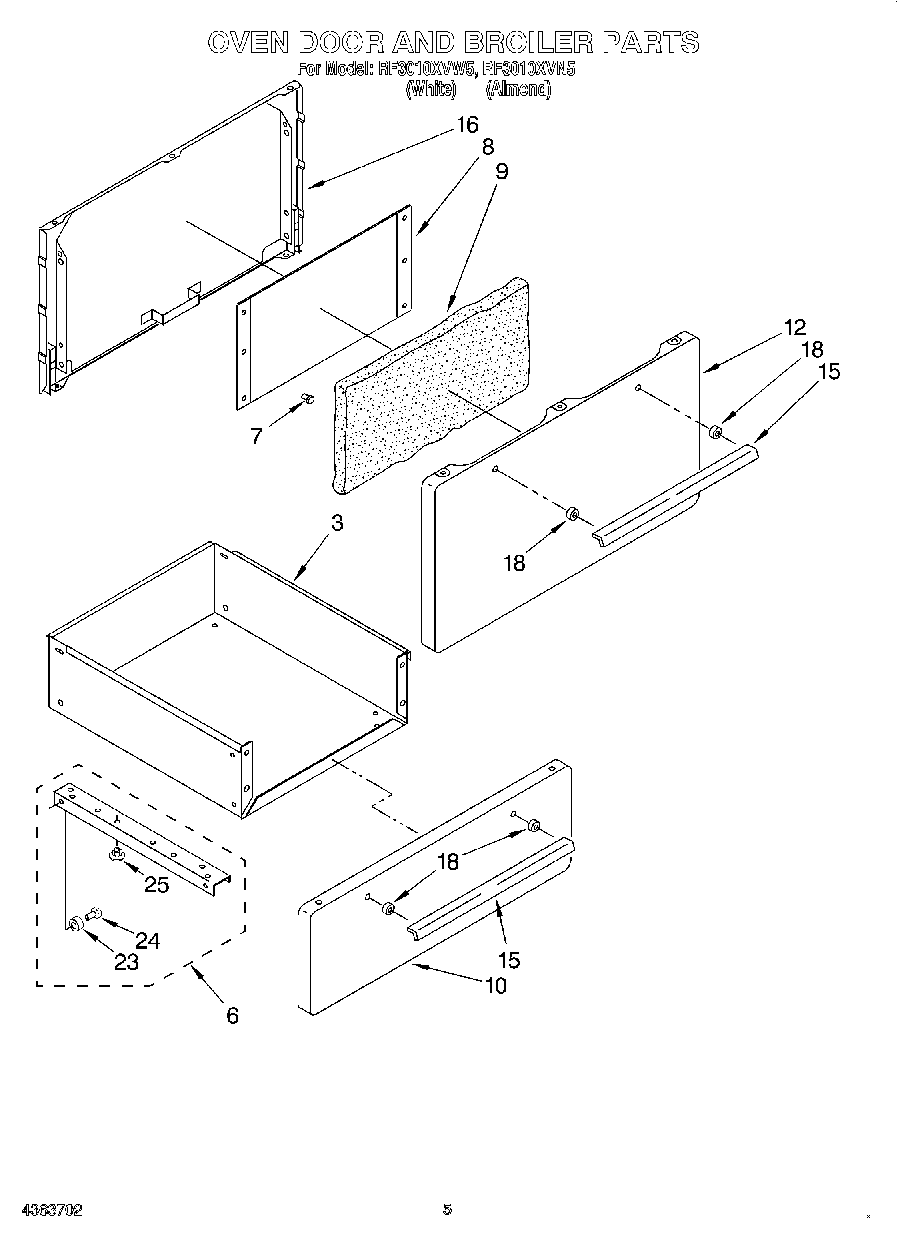

RF3010XVN5 03 – OVEN DOOR AND BROILER

Products

Position	Product
3	Drawer, Storage
6	Track, Upper (Left)
6	Track, Upper (Right)
7	Bumper, Rubber (6)
8	Baffle, Oven Door
8	SCREW
9	Insulation
10	WP308685 Whirlpool Microwave Screw
10	Drawer, Front (Almond)
10	Drawer, Front (White)
12	Panel, Oven Door (White)
12	Panel, Broiler (Screw)
12	Panel, Oven Door (Almond)
15	Screw
15	Handle, Door (2)
16	Liner, Oven Door
18	Spacer (4)
23	Roller (2)
24	Roller Pin (2)
25	Bumper, Nylon (4)
