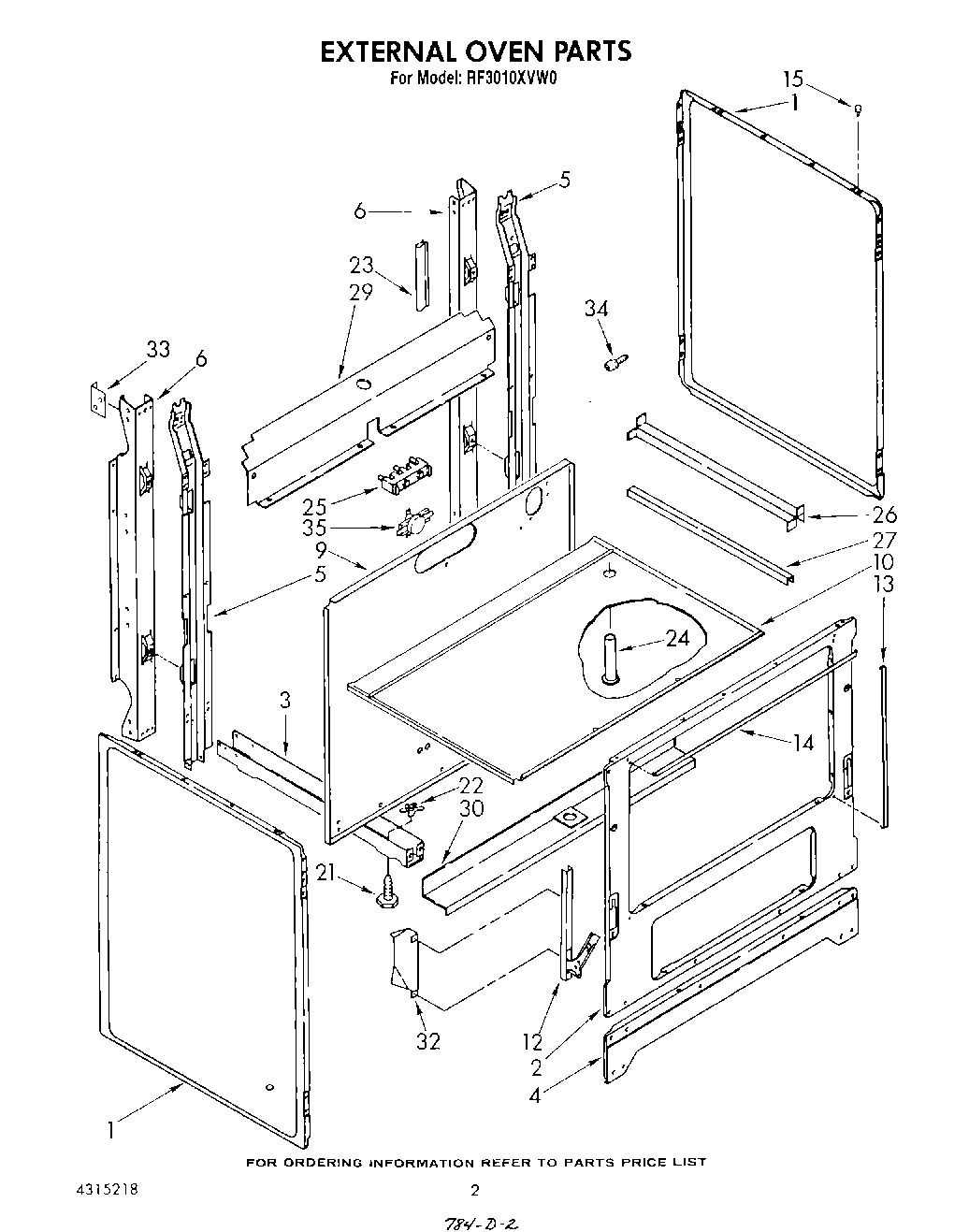

RF3010XVW0 02 – EXTERNAL OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	Instuctions, Installation
	Guide, Use & Care
	List, Repair Parts
	WPL LIT313358
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
6	SCREW
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
12	Hinge, Door (2)
12	Screw, 10-24 X 3/8 (2)
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Tube, Vent
25	WP8203546 Whirlpool Terminal Block
26	Channel, Wire
27	Ignitor (L.H.)
29	Cover, Rear
30	Cover, Wire
32	Shield, Insulation
33	Bracket, Mounting (R.H.)
33	Bracket, Mounting (L.H.)
34	Locator Stud (2)
35	FOIL, ALUMINUM OVEN (18“ X 25 )
35	Disc, Thermo
35	WPW10208653 Whirlpool Insulation
