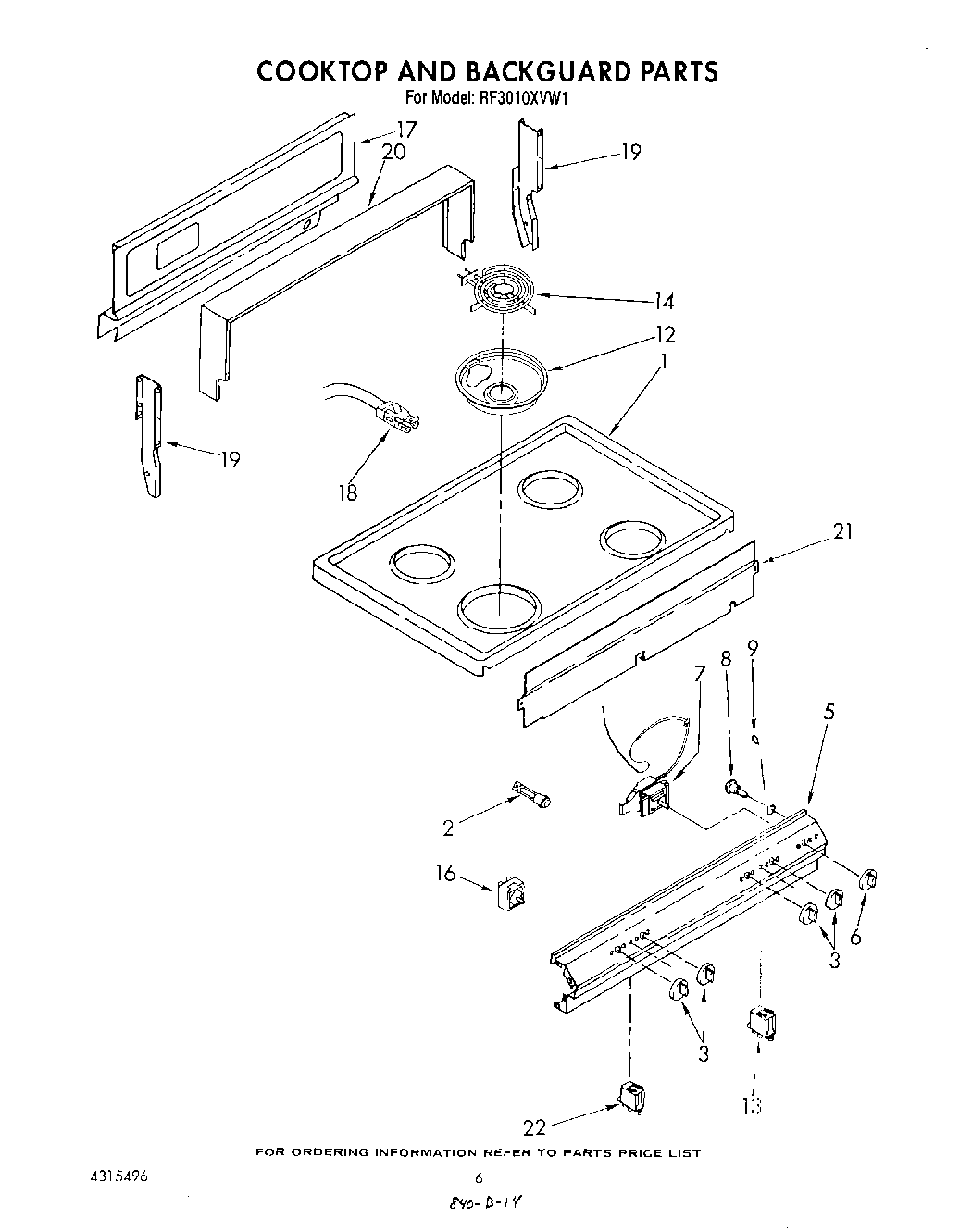

RF3010XVW1 05 – COOK TOP AND BACK GUARD

Products

PositionProduct
1Cooktop (Almond)
1Cooktop (White)
2Light, Indicator
3Knob, Burner (4)
5Panel, Manifold
6Knob, Thermostat
7Thermostat
8Screw
9Rod, Support
12WPW10196406 Whirlpool 6" Chrome Drip Bowl
12DRIP BOWL 8" W/HOLE CHROME
13Light, Indicator (4)
14Unit, Surface (8“)
14Unit, Surface (6“)
16W10900107 Whirlpool Oven Surface Element Switch
17Panel, Backguard (Almond)
17Panel, Backguard (White)
18BURNER RECEPTACLE KIT
19Support, Backguard (Right Hand)
19Screw, 10-32 X 1/2 (1)
19Support, Backguard (Left Hand)
20Frame
20Screw, 10-12 X 3/8 (2)
21Cover, Switch
22Light, Indicator (2)
