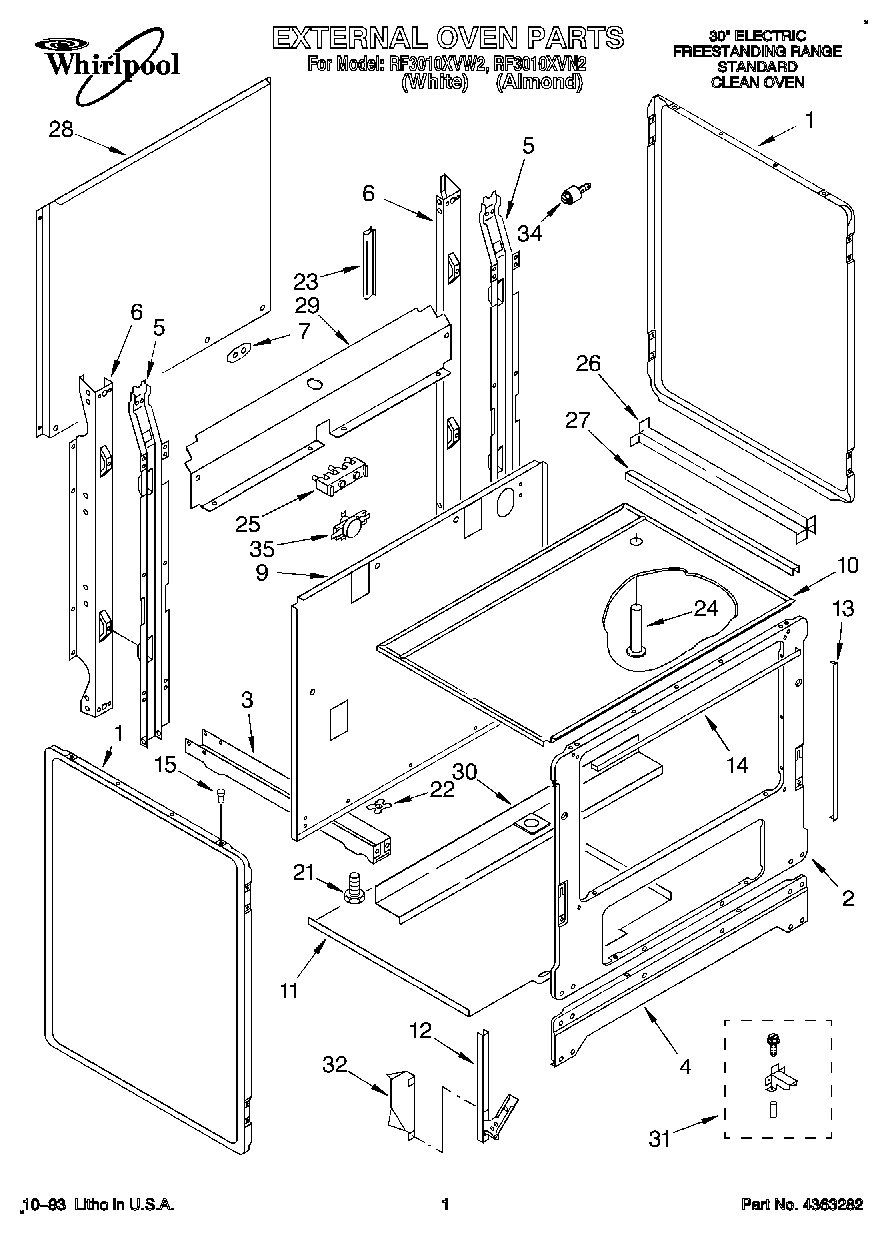

RF3010XVW2 01 – EXTERNAL, LIT/OPTIONAL

Products

Position	Product
	Instuctions, Installation
	Guide, Use & Care
	WPL LIT677973
	WPL LIT313358
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
6	SCREW
7	Mounting Plate
9	Main Back
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
11	Retainer Lower
12	Screw, 10-24 X 3/8 (2)
12	Hinge, Door (2)
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Tube, Vent
25	WP8203546 Whirlpool Terminal Block
26	Channel, Wire
27	Ignitor (L.H.)
28	Wire Shield
29	Cover, Rear
30	Shield, Wire
31	Anti-Tip Kit
32	Shield, Insulation
34	Stud Screw (2)
34	Locator stud (2)
35	72017 Whirlpool Appliance Touch-Up Paint White
35	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
35	FOIL, ALUMINUM OVEN (18“ X 25 )
35	WP72107 Whirlpool Touchup
35	Disc, Thermo
