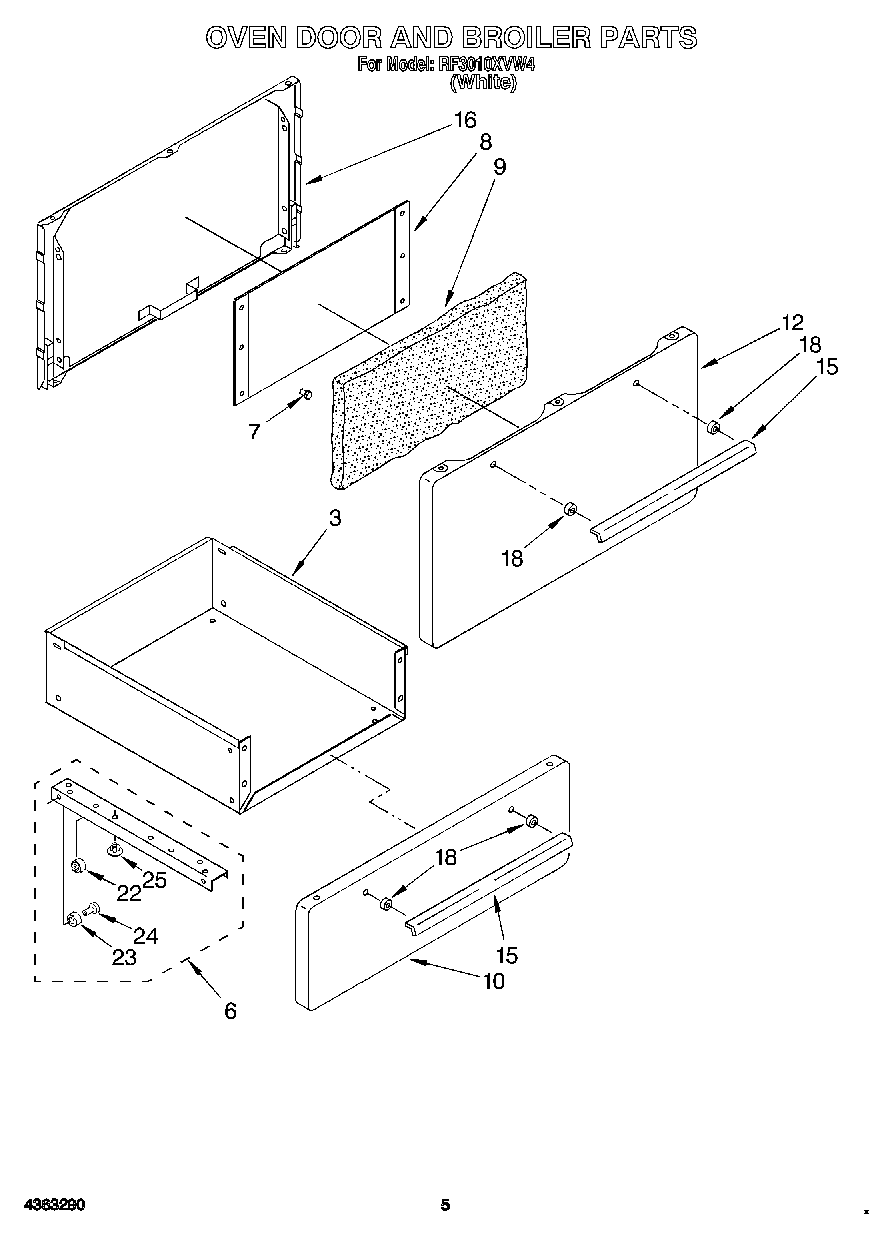

RF3010XVW4 03 – OVEN DOOR AND BOILER

Products

Position	Product
3	Drawer, Storage
6	Track, Upper (Right)
6	Track, Upper (Left)
7	Bumper, Rubber (6)
8	SCREW
8	Baffle, Oven Door
9	Insulation
10	Drawer, Front (White)
10	WP308685 Whirlpool Microwave Screw
12	Panel, Oven Door (White)
12	Panel, Broiler (Screw)
15	Screw
15	Handle, Door (2)
16	Liner, Oven Door
18	Spacer (4)
22	Bumper, Nylon (4)
23	Roller (2)
24	Roller Pin (2)
25	Hole Plug (2)
