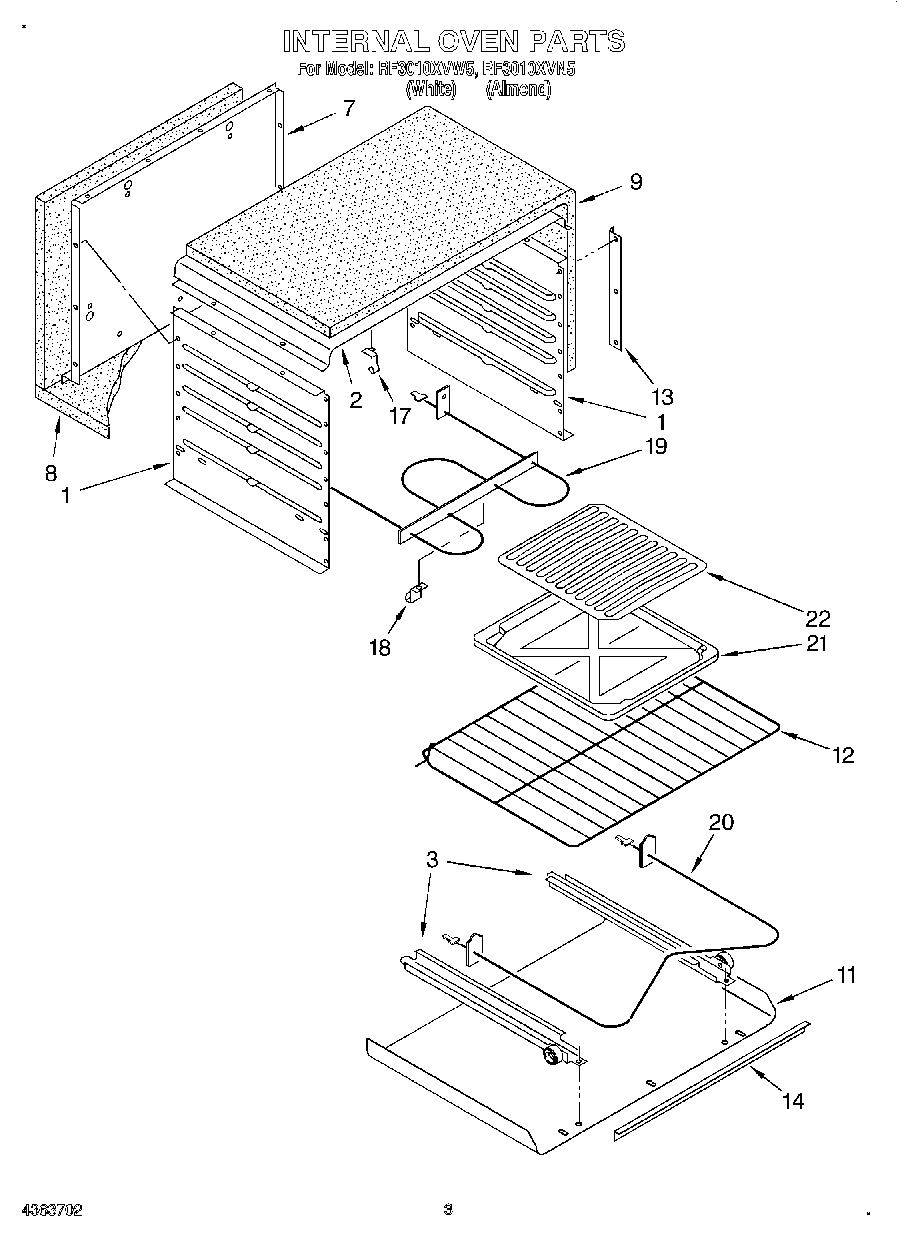

RF3010XVW5 02 – INTERNAL OVENadmin2025-04-26T12:52:15+00:00RF3010XVW5 02 – INTERNAL OVEN
Products
| Position | Product |
|---|
| 1 | Liner, Oven Side (2) |
| 2 | Oven, Top |
| 3 | Track, Broiler (Left Hand) |
| 3 | Track, Broiler (Right Hand) |
| 7 | Backliner, Oven |
| 8 | WPW10208653 Whirlpool Insulation |
| 9 | Insulation |
| 11 | Bottom, Oven |
| 12 | Rack, Oven (2) |
| 13 | Support, Liner |
| 14 | Support, Oven |
| 17 | 98005642 Whirlpool Clip |
| 18 | Support, Element |
| 18 | Screw |
| 18 | WP308685 Whirlpool Microwave Screw |
| 20 | Screw, 10-32 X 1/2 (1) |
| 20 | WP4314958 Whirlpool Bake Element |
| 21 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 22 | Grid |
