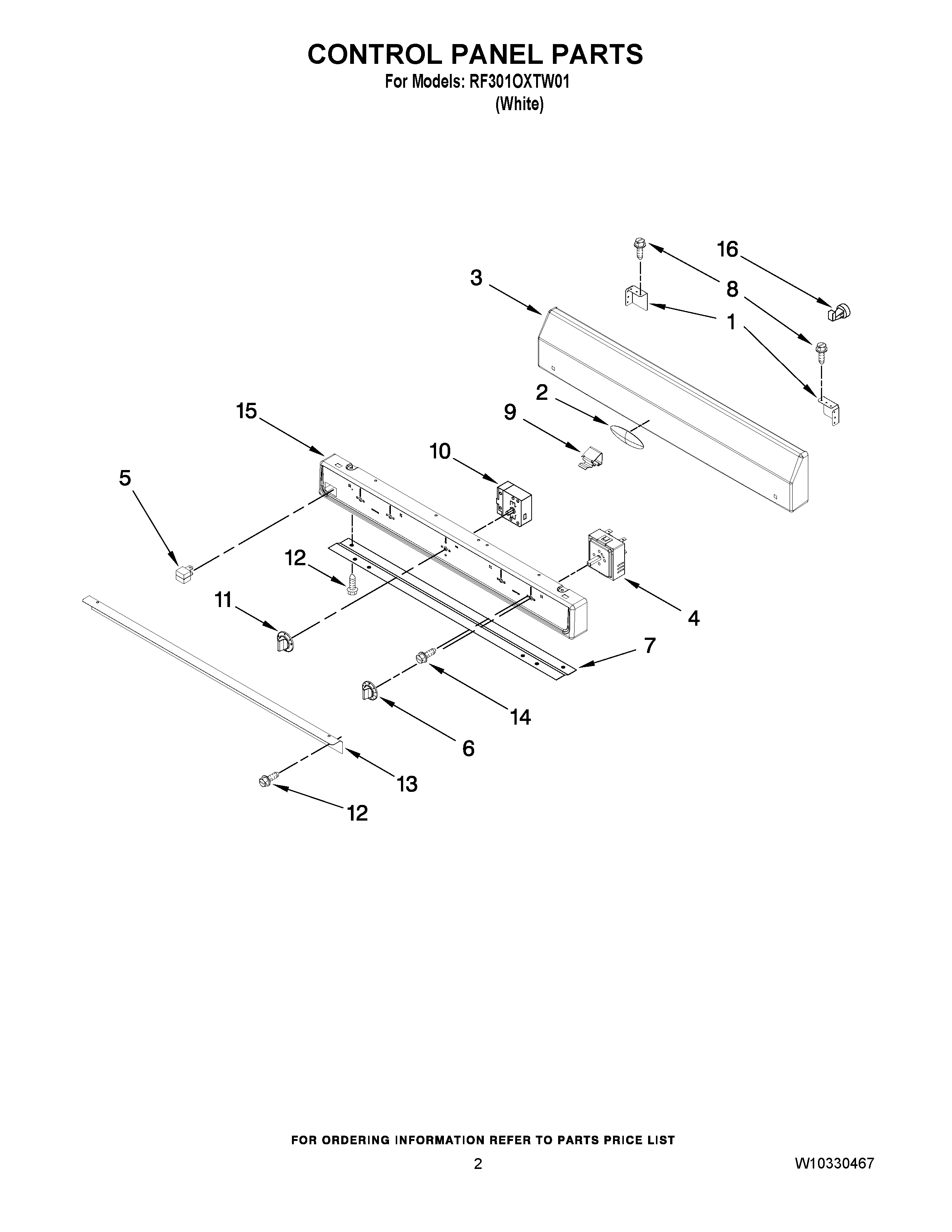

RF301OXTW01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1BRACKET, BACKGUARD
2BADGE
3PANEL, BACKGUARD
4SWITCH, INFINITE (RIGHT FRONT)
4SWITCH, INFINITE (RIGHT REAR)
5LIGHT, INDICATOR
6KNOB, INFINITE (4)
7BRACKET, CONTROL CONTROL PANEL
8SCREW
9CLIP
10THERMOSTAT
11KNOB, THERMOSTAT
12SCREW
13SUPPORT, UPPER FRONT PANEL
14WPL 7101P30960
15PANEL, UPPER FRONT
16SPACER
