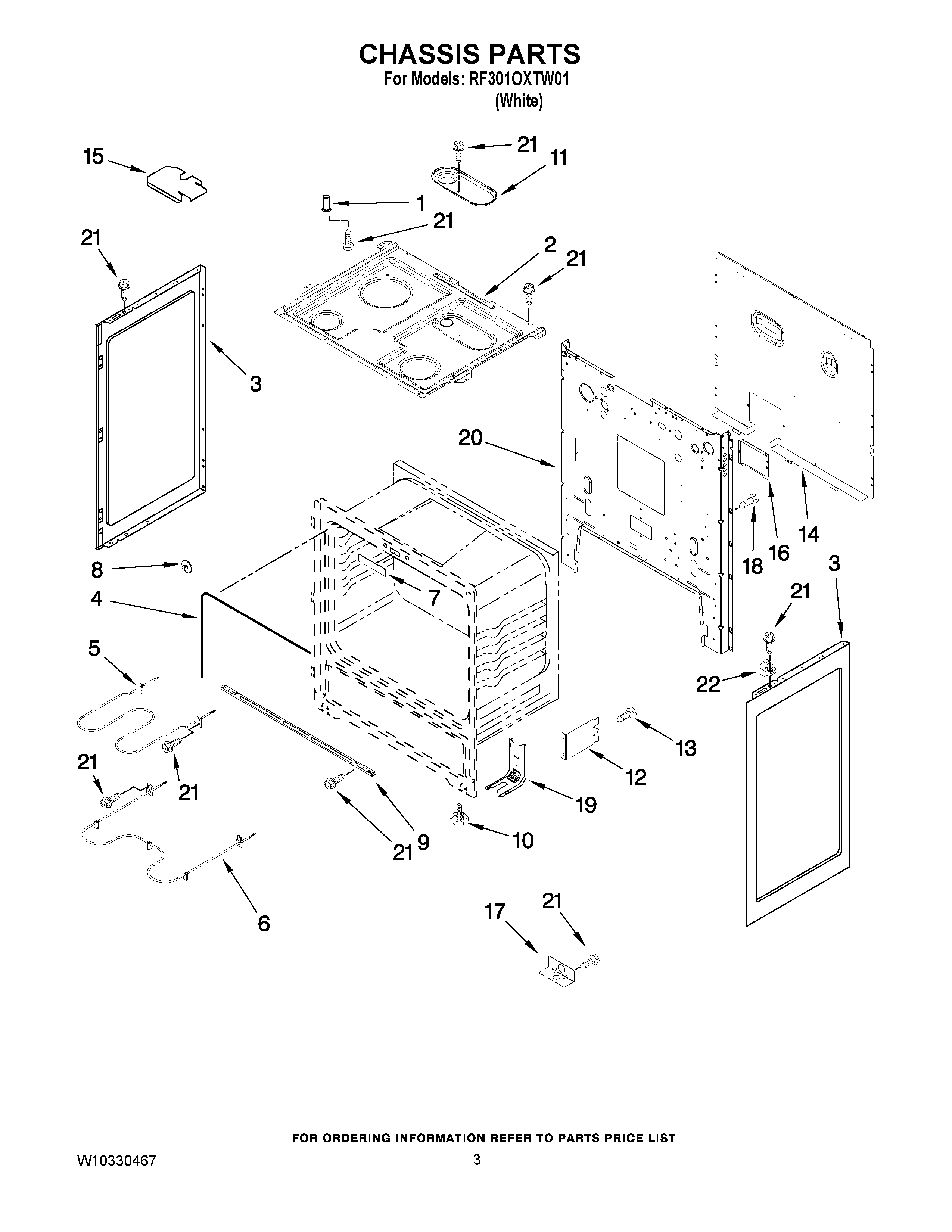

RF301OXTW01 03 – CHASSIS PARTS

Products

PositionProduct
NIINSULATION, BACK
NIINSULATION, WRAP
1VENT TUBE
2BOX, BURNER (BOTTOM)
3PANEL, SIDE (WHITE (2))
4SEAL, OVEN DOOR
5WPW10310249 Whirlpool Broil Element
6ELEMENT, BAKE
7PLUG, DOOR
8SPACER, SIDE PANEL
9Support, Element
10FOOT, LEVELER
11COVER, BOX
12SUPPORT, OVEN REAR
13Screw
14COVER, MAIN
15COVER, LOCK HOLE
16COVER, ACCESS
17W10190166 Whirlpool Service Bracket
18SCREW
19BRACKET, ANTI TIP
20BACK, MAIN
21SCREW
22SPACER, TOP (RIGHT)
22SPACER, TOP (LEFT)
