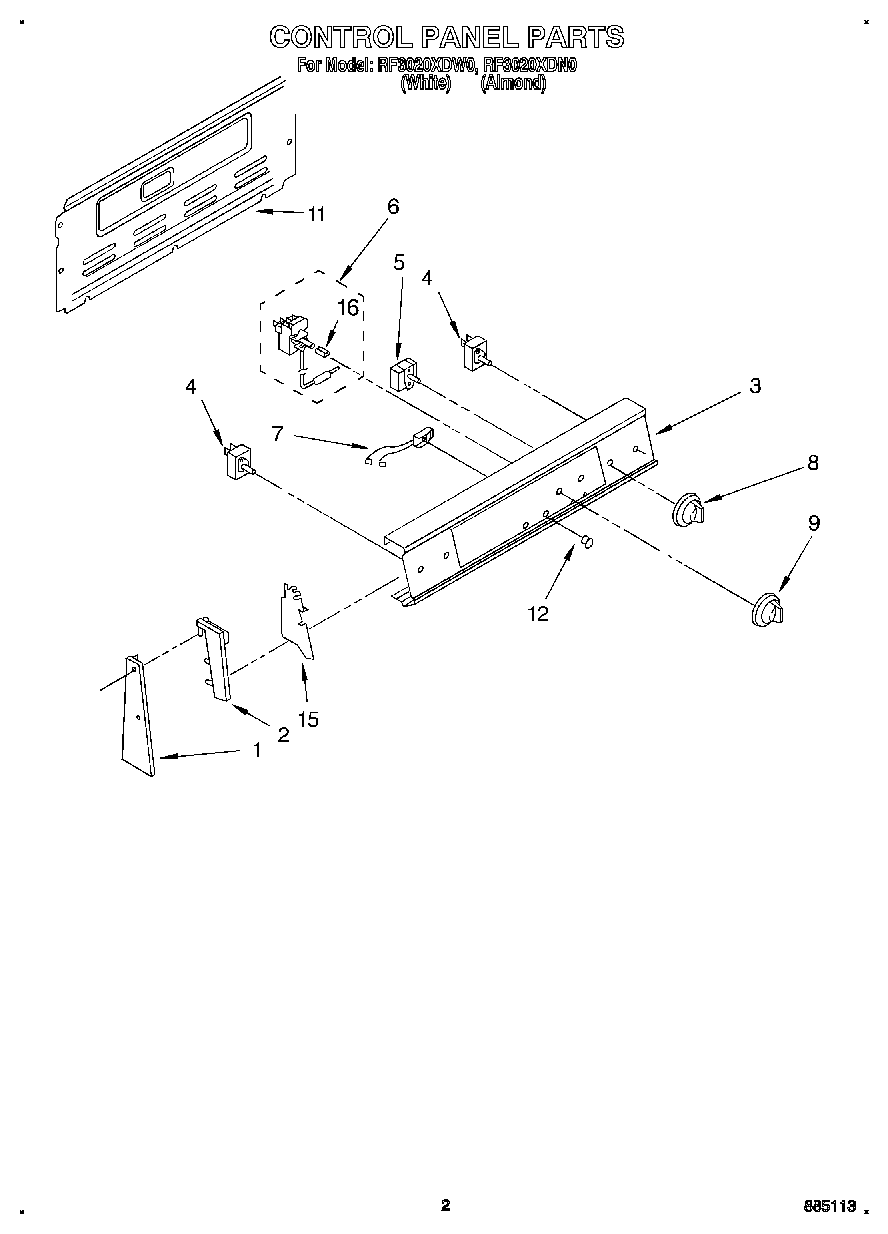

RF3020XDN0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim R.H. (Black)
1	End Trim (LH, Black)
2	End Cap L.H. (Black)
2	End Cap, R.H. (Black)
2	Screw,
3	Panel, Control (Black)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	WP3188987 Whirlpool Oven Switch
5	Screw, 8-32 x 3/16 (2)
6	Thermostat, 0ven
6	WP313808 Whirlpool Screw
7	Light, Indicator (250V)
7	Indicator Light (Surface Unit On)
8	WP3196231 Whirlpool Knob
9	Knob, Thermostat (Black)
11	Rear Cover Contr
11	SCREW
12	Lens, Amber
15	WP965173 Whirlpool Dishwasher Screw
15	Shield (2)
16	WPL 3169525
