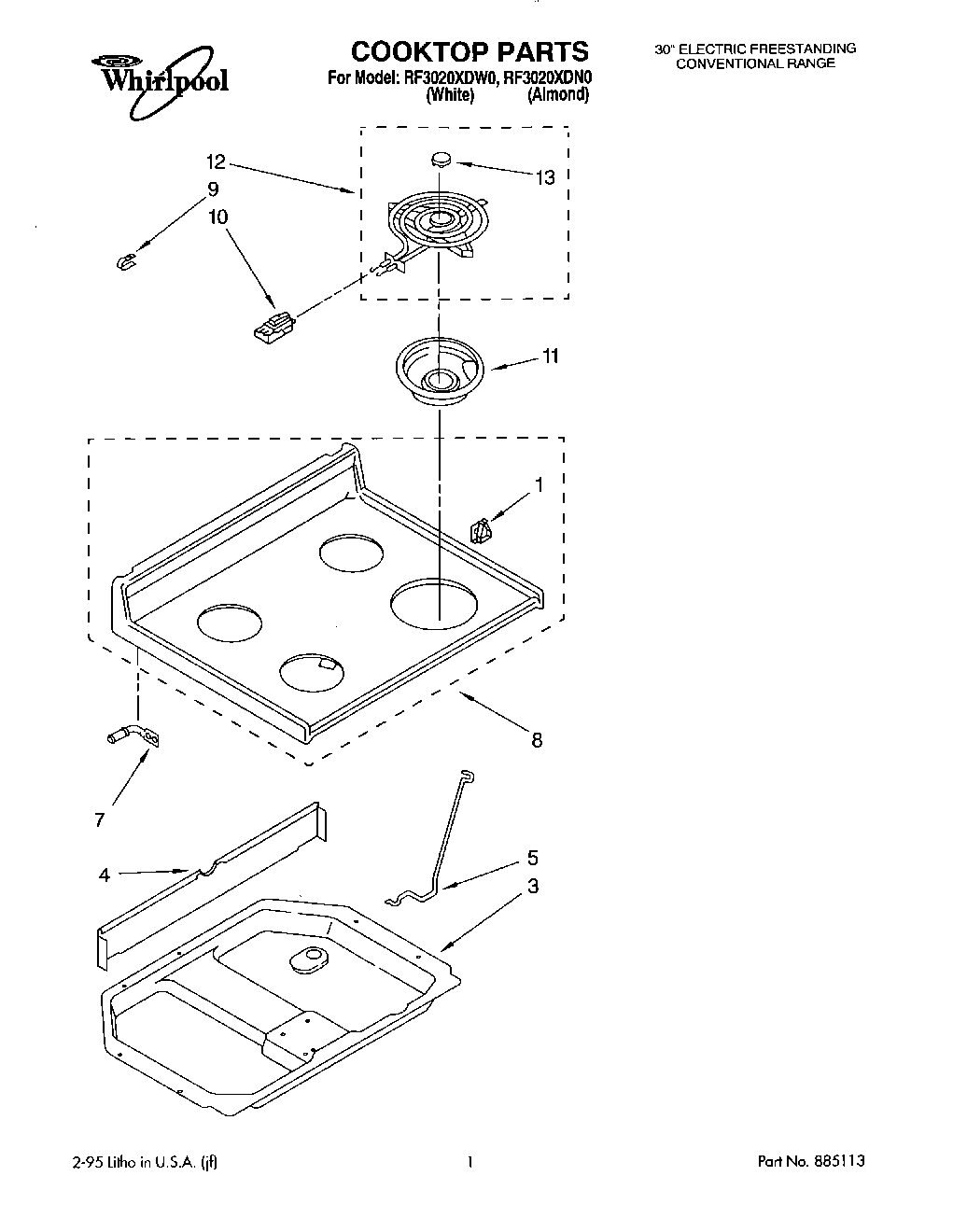

RF3020XDW0 01 – COOKTOP, LITERATURE

RF3020XDW0 01 – COOKTOP, LITERATURE

Written by

in

RF3020XDW0 01 – COOKTOP, LITERATURE

Products

PositionProduct
Instructions, Installation
Wiring Diagram
Guide, Use & Care
WPL LIT3150400
1WP487887 Whirlpool Refrigerator Screw
1814103 Whirlpool Clip
1Nut (4)
3Box, Burner
3WP3390631 Whirlpool Screw
4Shield, Wiring
5Rod, Cooktop
7Pin, Cooktop (2)
8Cooktop (Almond)
8Cooktop (White)
9SCREW
9WP308605 Whirlpool Refrigerator Clamp
10WP313808 Whirlpool Screw
10WP4332752 Whirlpool Clip
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP660532 Whirlpool Oven Surface Element
12WP660533 Whirlpool Oven 8" Surface Element
13Medallion (4)
