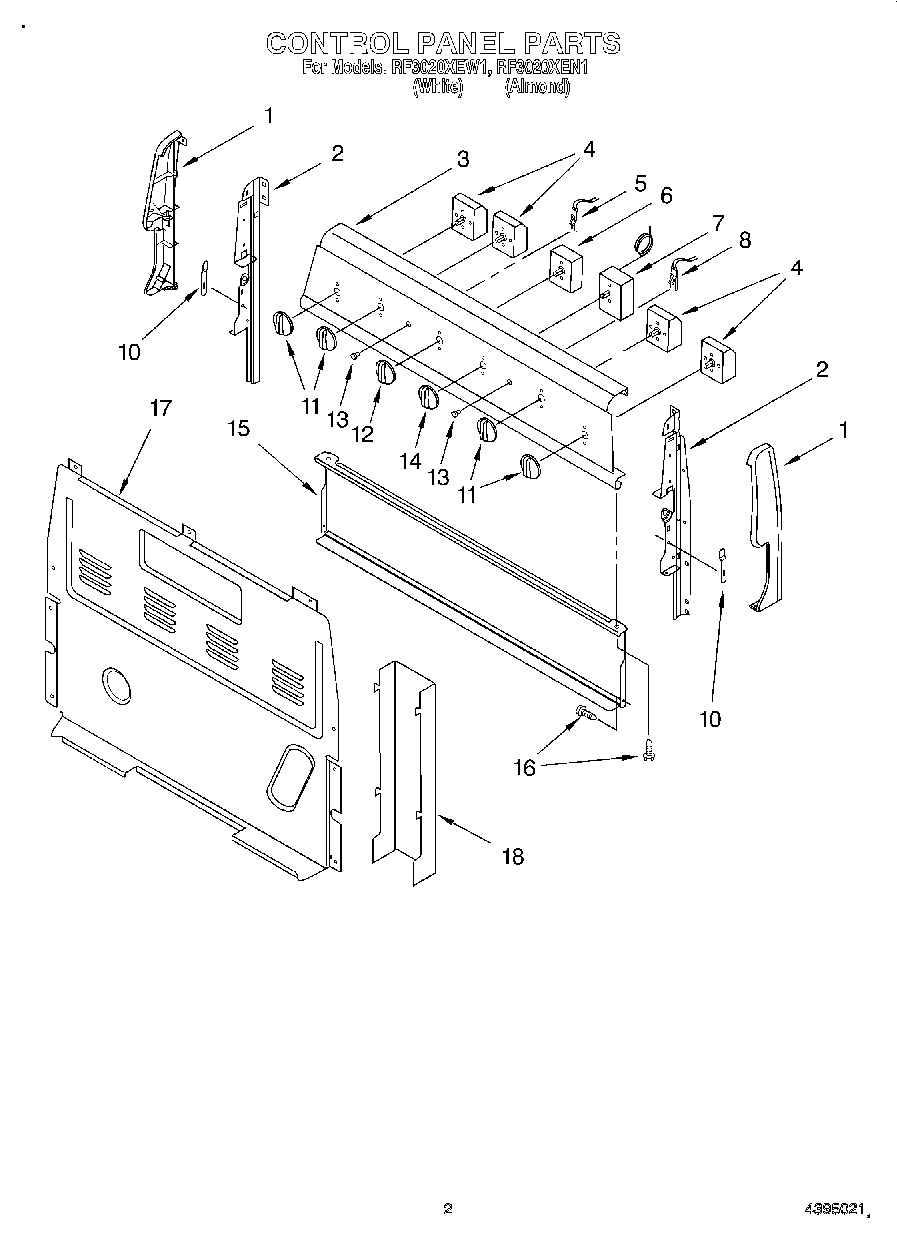

RF3020XEN1 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (Black)
4	SWITCH-INF
4	WP3149404 Whirlpool Oven Surface Element Switch
5	Indicator, Surface
6	Switch, Infinite (Screw (8))
6	WP3188987 Whirlpool Oven Switch
7	WP3196803 Whirlpool Oven Thermostat
7	WP3196170 Whirlpool Screw
8	Light, Indicator (250V)
10	3196200 Whirlpool Clip
12	WP3196231 Whirlpool Knob
13	WP3196068 Whirlpool Light Lens
14	Knob, Thermostat
15	Shield, Heat
16	Screw
17	WP8272473 Whirlpool Rear Cover
18	WPW10326122 Whirlpool Black Cover
18	SCREW
