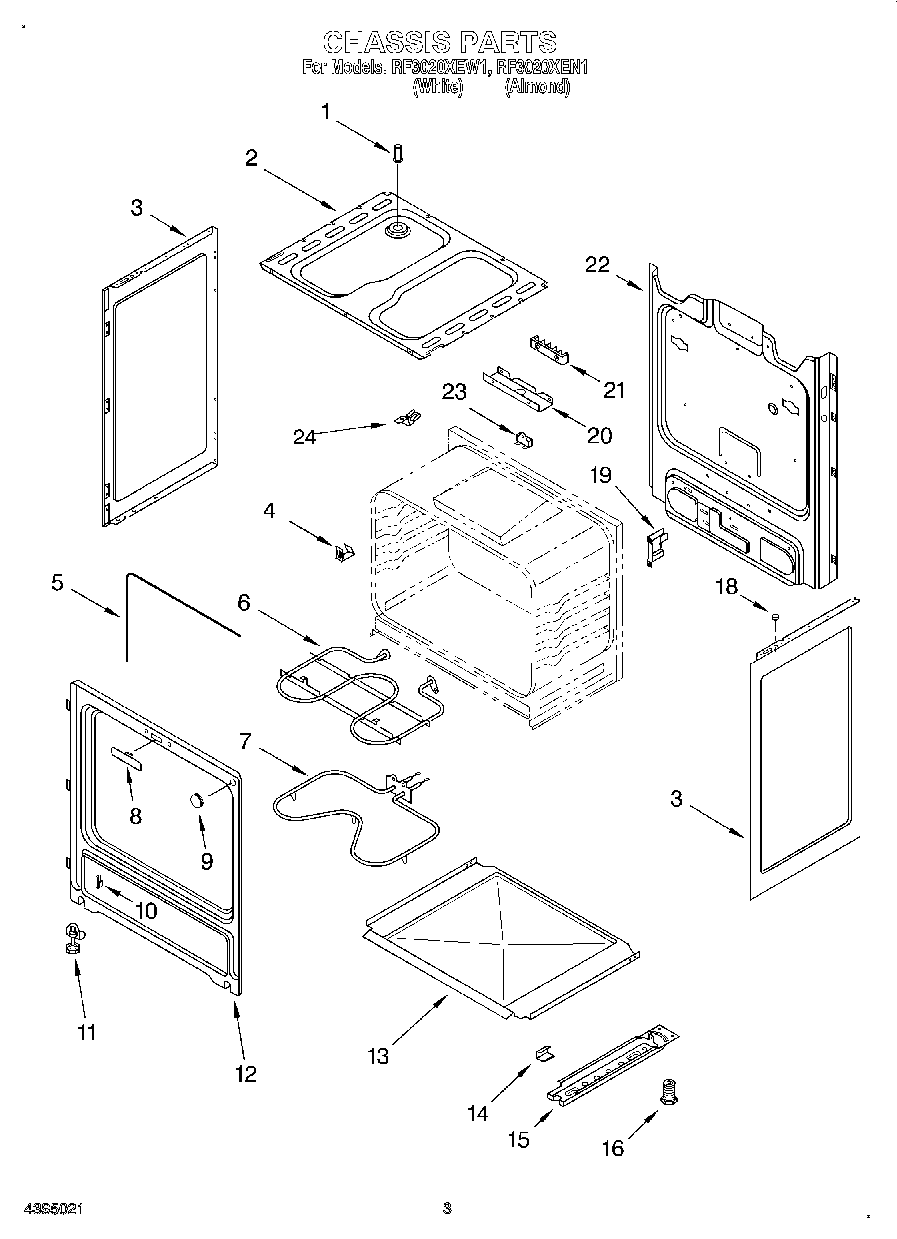

RF3020XEN1 03 – CHASSIS

Products

Position	Product
1	9755804 Whirlpool Oven Vent Tube
1	WP3196567 Whirlpool Screw
2	WP3400832 Whirlpool Screw
2	W11699791 Whirlpool Burner Box
3	Panel, Side (2) (Almond)
3	Panel, Side (2) (White)
4	98005642 Whirlpool Clip
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
7	WP3196174 Whirlpool Screw
8	Plug, Frame
9	Plug Button
10	WP3195546 Whirlpool Drawer Glide
11	Screw
11	WP3196037 Whirlpool Leveling Foot
12	Frame, Front
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
18	238614 Whirlpool Bumper Hinge
19	WP3196175 Whirlpool Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP3196163 Whirlpool Screw
21	WP8203546 Whirlpool Terminal Block
22	SCREW
22	Back, Main
23	3196172 Whirlpool Oven Screw
23	WP3196548 Whirlpool Thermal Fuse
24	WP8272612 Whirlpool Insulation
24	W11244557 Whirlpool Screw
24	Ground Strap
24	WPW10208653 Whirlpool Insulation
24	WP112432 Whirlpool Nut Assembly
