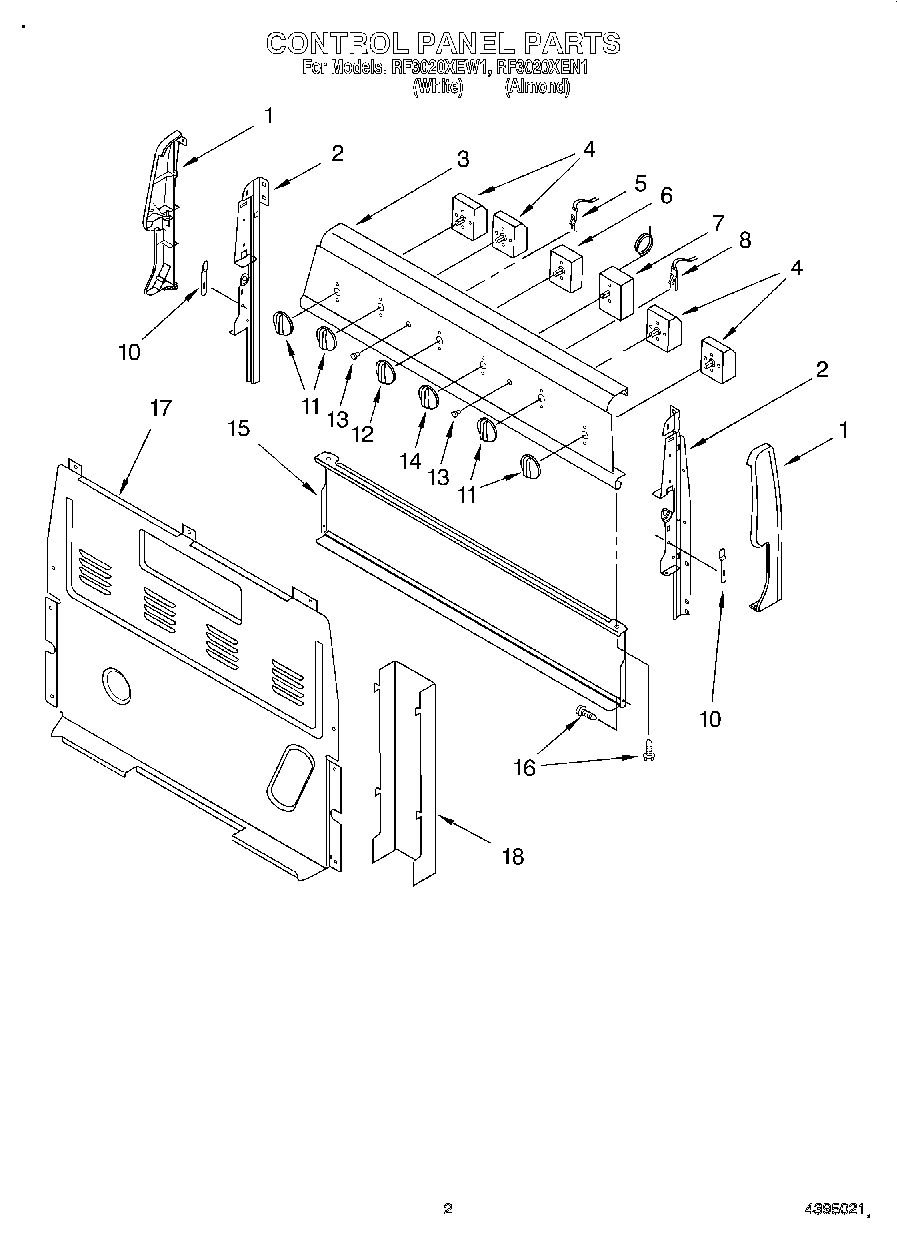

RF3020XEW1 02 – CONTROL PANEL
Written by
in
RF3020XEW1 02 – CONTROL PANEL
Products
Position
Product
1
Endcap (Black Left Hand)
1
Endcap, Right Hand (Black)
2
Support, Endcap (Left Hand)
2
Support, Endcap (Right Hand)
3
Panel, Backguard (Black)
4
SWITCH-INF
4
WP3149404 Whirlpool Oven Surface Element Switch
5
Indicator, Surface
6
Switch, Infinite (Screw (8))
6
WP3188987 Whirlpool Oven Switch
7
WP3196803 Whirlpool Oven Thermostat
7
WP3196170 Whirlpool Screw
8
Light, Indicator (250V)
10
3196200 Whirlpool Clip
12
WP3196231 Whirlpool Knob
13
WP3196068 Whirlpool Light Lens
14
Knob, Thermostat
15
Shield, Heat
16
Screw
17
WP8272473 Whirlpool Rear Cover
18
WPW10326122 Whirlpool Black Cover
18
SCREW
←
