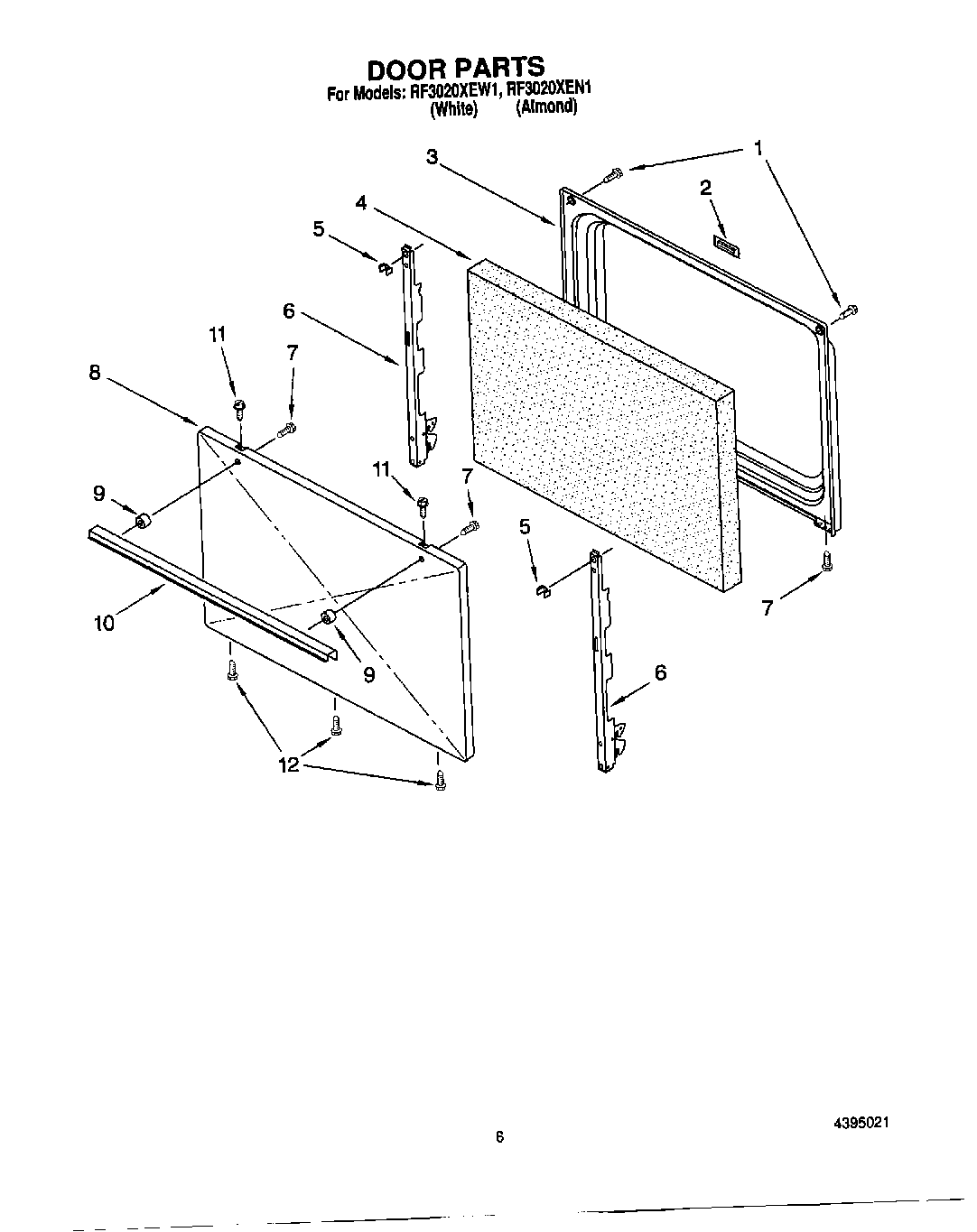

RF3020XEW1 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL LIT3195944
	Literature (Installation, Instructions (Template))
	WPL LIT3195946
	WP3196154 Whirlpool Screw Assembly
	3184020 Whirlpool Oven Wire
	3400964 Whirlpool Oven Clip
	Clip, Ground Wire
	WPL LIT3196804
	WPL 3196801
1	Screw
2	Plug, Door
3	Liner, Door
4	Insulation, Door
5	Bracket, Saddle (2)
6	Hinge, Door (2)
7	WP3196163 Whirlpool Screw
8	W10903447 Whirlpool Door Panel Assembly
8	Panel, Door (Almond)
9	WP3196143 Whirlpool Spacer Assembly
9	Spacer, Handle (2) (Almond)
10	WP3195263 Whirlpool Door Handle
10	Handle, Oven Door (Almond)
11	3196558 Whirlpool Oven Screw
11	Screw, Panel (2) (Almond)
12	Wire (12 Ga. 150 c Black)
12	Wire (14 Ga. 150 c Yellow)
12	Wire (14 Ga. 150 c Orange)
12	18 Ga. 80~c Rating (Red)
12	Wire (14 Ga. 200 c Brown)
12	1
12	8212471 Whirlpool Oven Paint
12	Grease
12	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
12	72113 Whirlpool Touch-Up Paint
12	Wire (14 Ga. 150 c Green)
12	Wire (14 Ga. 150 c Brown)
12	WPL 72112
12	Platinum (Uncut)
12	Enamal, Toast (1 Qt. Uncut)
12	Paint, Spray (13 Oz.) (Platinum)
12	Toast
12	Golden Harvest (Uncut)
12	Golden Harvest
12	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
12	Almond (Uncut)
12	W10491985 Whirlpool Screw
12	WP72107 Whirlpool Touchup
12	799344 Whirlpool Refrigerator Paint
12	72017 Whirlpool Appliance Touch-Up Paint White
12	350956 Whirlpool Spray Assembly
12	350942 Whirlpool Spray Paint
12	511873 Whirlpool Refrigerator Paint
12	Wire (14 Ga. 150 c Blue)
12	242831 Whirlpool Oven Wire
12	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
12	Paint, Spray 13 Oz. (Avocado)
12	paint, spray 13 oz. (coffee)
12	Paint, Touch-Up 1/2 Oz. (Coffee)
12	72109 Whirlpool Dacor Avocado Touch-Up Paint
12	285006 Whirlpool Spray
12	Wire, 25“ Roll (White 14 GA.)
12	Wire, 25` Roll (Red 14 Ga.)
12	Wire, 25` Roll (Black 14 Ga.)
12	FOIL, ALUMINUM OVEN (18“ X 25 )
12	WPW10208653 Whirlpool Insulation
12	WPL 799832
12	350930 Whirlpool White Spray Paint
