RF3020XGN0 02 – CONTROL PANEL

RF3020XGN0 02 – CONTROL PANEL

Written by

in

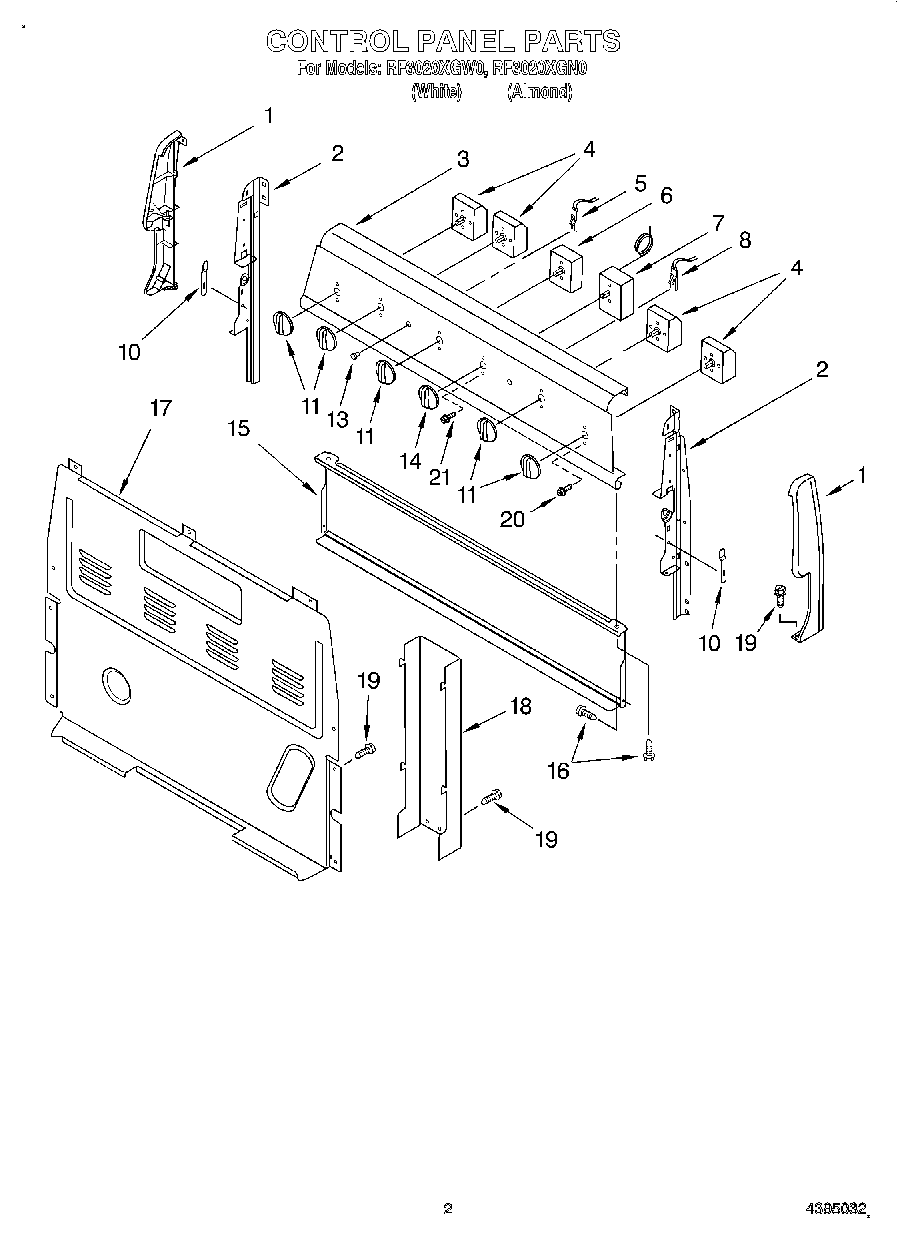

RF3020XGN0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Black)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5Indicator, Surface
6WP3188987 Whirlpool Oven Switch
7WP3196803 Whirlpool Oven Thermostat
8Light, Indicator (250V)
103196200 Whirlpool Clip
11WP3196231 Whirlpool Knob
13WP3196068 Whirlpool Light Lens
14Knob, Thermostat
15Shield, Heat
16Screw
17WP8272473 Whirlpool Rear Cover
18WPW10326122 Whirlpool Black Cover
19SCREW
20Switch, Infinite (Screw (8))
21WP3196170 Whirlpool Screw
