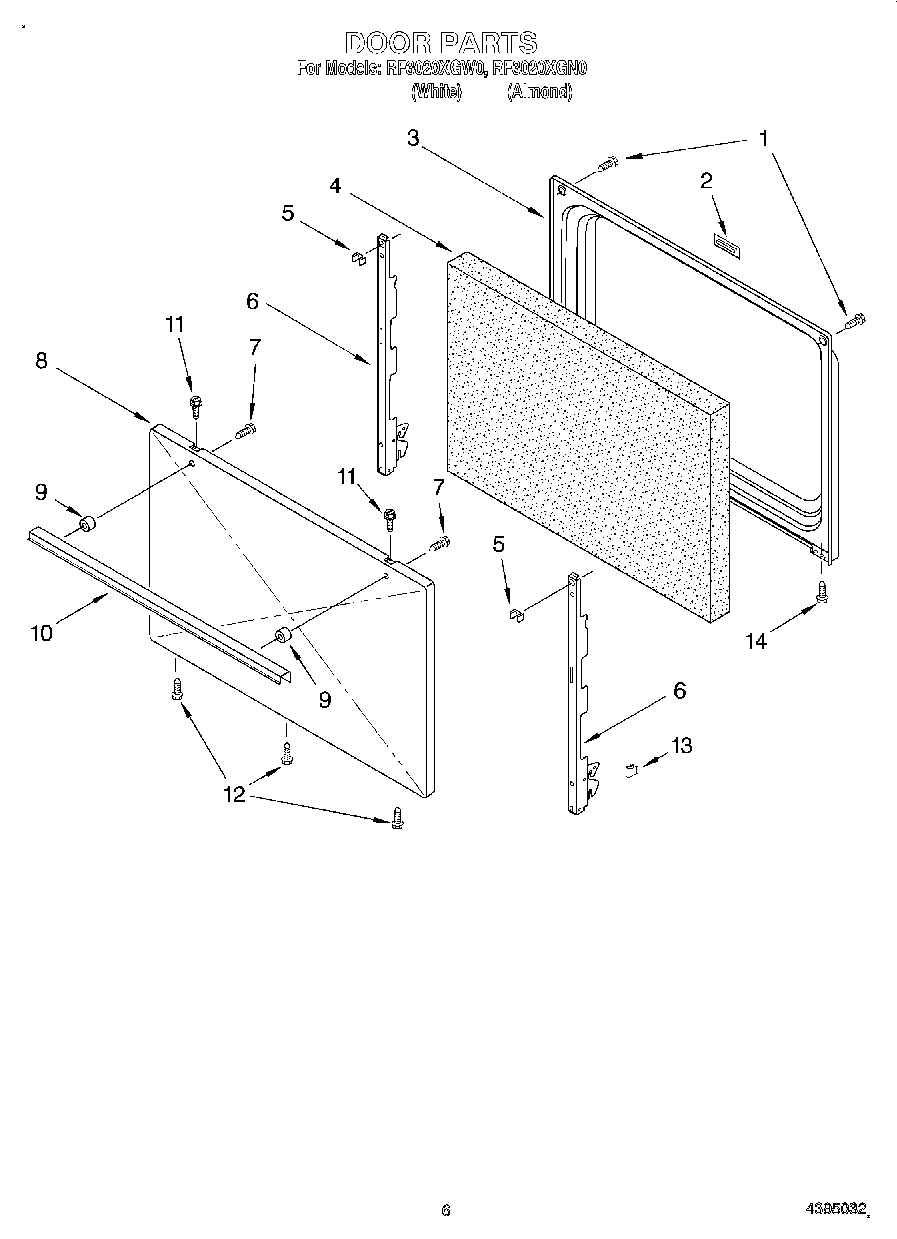

RF3020XGN0 05 – DOOR, LIT/OPTIONAL

RF3020XGN0 05 – DOOR, LIT/OPTIONAL

Written by

in

RF3020XGN0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	Literature (Instruction, Installation)
	WP3196154 Whirlpool Screw Assembly
	Literature (Installation, Instructions (Template))
	Guide, Use & Care
	W11396691 Whirlpool Element Receptacle and Wire Kit
	3184020 Whirlpool Oven Wire
	WP3196174 Whirlpool Screw
	814381 Whirlpool Pin
	3400964 Whirlpool Oven Clip
	WPL 3196801
	WPL LIT3196804
	Safer Cooking Tips
	Clip, Ground Wire
1	Screw
2	Plug, Door
3	Liner, Door
4	Insulation, Door
5	Bracket, Saddle (2)
6	Hinge, Door (2)
7	WP3196163 Whirlpool Screw
8	W10903447 Whirlpool Door Panel Assembly
8	Panel, Door (Almond)
9	WP3196143 Whirlpool Spacer Assembly
9	Spacer, Handle (2) (Almond)
10	Handle, Oven Door (Almond)
10	WP3195263 Whirlpool Door Handle
11	Screw, Panel (2) (Almond)
11	3196558 Whirlpool Oven Screw
12	W10491985 Whirlpool Screw
13	WP3196925 Whirlpool Clip Assembly
14	Wire (12 Ga. 150 c Black)
14	Wire (14 Ga. 150 c Yellow)
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	1
14	8212471 Whirlpool Oven Paint
14	72113 Whirlpool Touch-Up Paint
14	Grease
14	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Brown)
14	350942 Whirlpool Spray Paint
14	WPL 72112
14	Platinum (Uncut)
14	Enamal, Toast (1 Qt. Uncut)
14	Paint, Spray (13 Oz.) (Platinum)
14	Toast
14	Golden Harvest (Uncut)
14	Golden Harvest
14	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
14	Almond (Uncut)
14	WP72107 Whirlpool Touchup
14	799344 Whirlpool Refrigerator Paint
14	72017 Whirlpool Appliance Touch-Up Paint White
14	350956 Whirlpool Spray Assembly
14	511873 Whirlpool Refrigerator Paint
14	WPL 799832
14	Wire (14 Ga. 150 c Blue)
14	242831 Whirlpool Oven Wire
14	285006 Whirlpool Spray
14	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
14	Paint, Spray 13 Oz. (Avocado)
14	paint, spray 13 oz. (coffee)
14	Paint, Touch-Up 1/2 Oz. (Coffee)
14	72109 Whirlpool Dacor Avocado Touch-Up Paint
14	Wire, 25“ Roll (White 14 GA.)
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25` Roll (Black 14 Ga.)
14	WP3196175 Whirlpool Screw
14	FOIL, ALUMINUM OVEN (18“ X 25 )
14	WPW10208653 Whirlpool Insulation
14	350930 Whirlpool White Spray Paint
