RF3020XGW0 01 – COOKTOP

RF3020XGW0 01 – COOKTOP

Written by

in

RF3020XGW0 01 – COOKTOP

Products

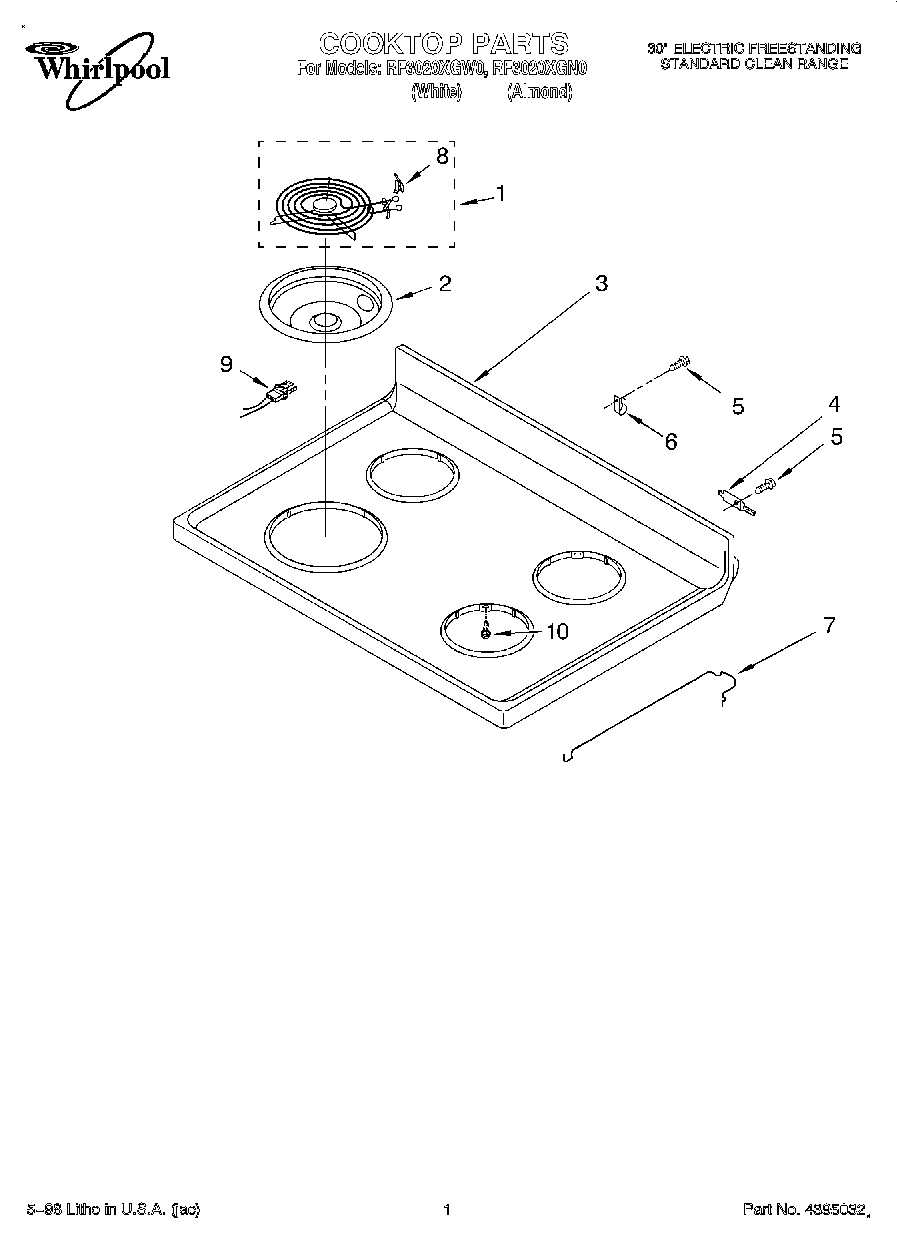

PositionProduct
1WPW10345407 Whirlpool Surface Element
1WP9761346 Whirlpool Stove Surface Burner Element
2DRIP BOWL 8" W/HOLE CHROME
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
3Cooktop (White)
3Cooktop (Almond)
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8WP3195917 Whirlpool Clip Assembly
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
