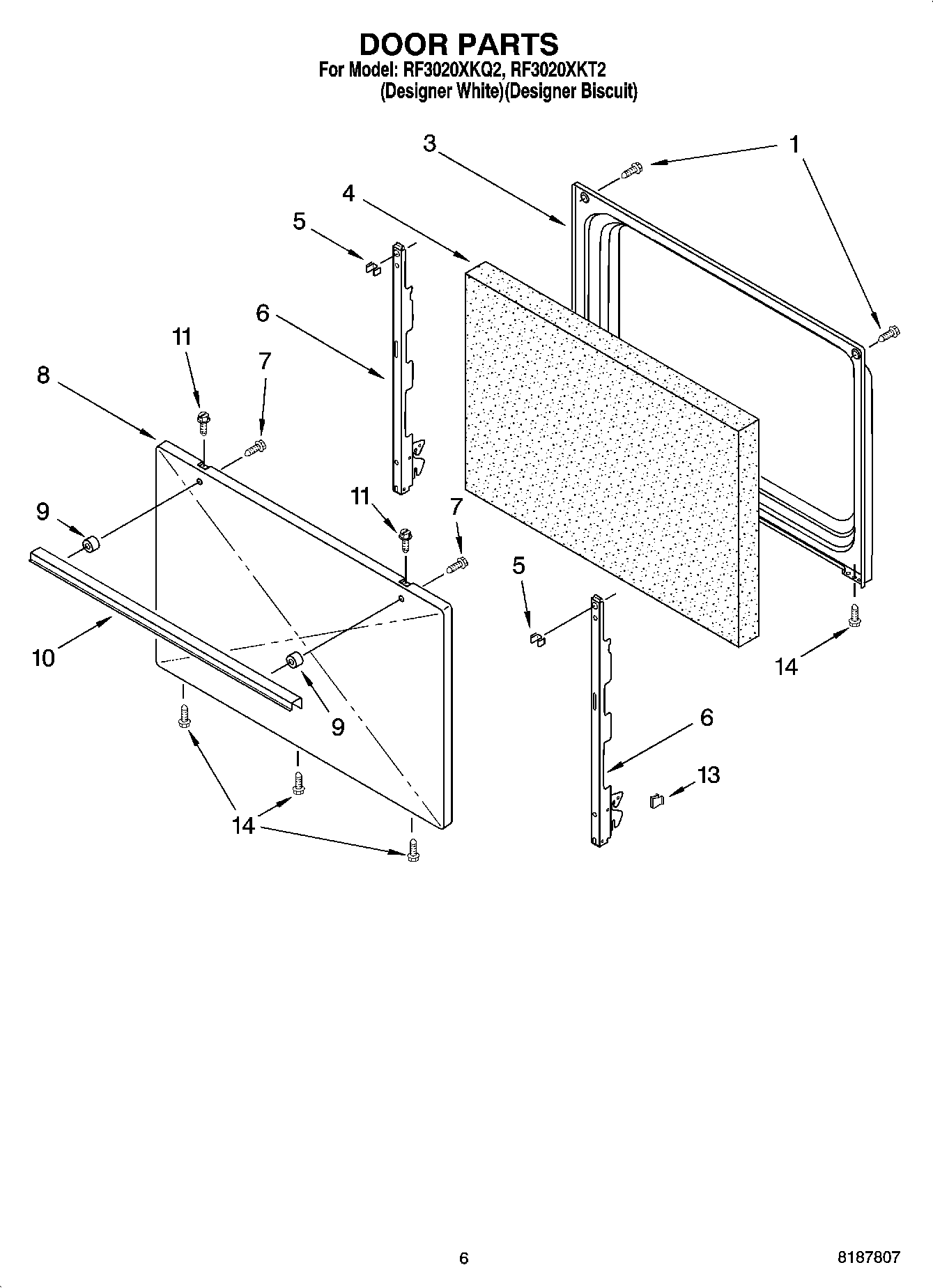

RF3020XKQ2 05 – DOOR PARTS, MISCELLANEOUS PARTSadmin2025-04-26T12:51:15+00:00RF3020XKQ2 05 – DOOR PARTS, MISCELLANEOUS PARTS
Products
| Position | Product |
|---|
| WPL ARI122089A |
| Grease |
| 3184020 Whirlpool Oven Wire |
| 8212471 Whirlpool Oven Paint |
| WP3196174 Whirlpool Screw |
| 1 |
| Wire (14 Ga. 200 c Brown) |
| 18 Ga. 80~c Rating (Red) |
| Wire (12 Ga. 150 c Black) |
| Wire (14 Ga. 150 c Yellow) |
| Wire (14 Ga. 150 c Orange) |
| 8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit |
| WP3196154 Whirlpool Screw Assembly |
| WPL ARI122088A |
| WPL ARI122087A |
| WPL ARI122086A |
| WPL ARI122085A |
| WPL ARI122084A |
| WPL ARI122083A |
| WPL 9757473 |
| WPL ARI122090A |
| W11396691 Whirlpool Element Receptacle and Wire Kit |
| WPL 8316781 |
| Wire (14 Ga. 150 c Green) |
| Wire (14 Ga. 150 c Brown) |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 799344 Whirlpool Refrigerator Paint |
| FOIL, ALUMINUM OVEN (18`` X 25 ) |
| WP72107 Whirlpool Touchup |
| WPW10208653 Whirlpool Insulation |
| Almond (Uncut) |
| 350942 Whirlpool Spray Paint |
| 511873 Whirlpool Refrigerator Paint |
| 350956 Whirlpool Spray Assembly |
| Wire, 25` Roll (Red 14 Ga.) |
| Wire, 25`` Roll (White 14 GA.) |
| Wire (14 Ga. 150 c Blue) |
| 242831 Whirlpool Oven Wire |
| Clip, Ground Wire |
| 3400964 Whirlpool Oven Clip |
| 350930 Whirlpool White Spray Paint |
| 814381 Whirlpool Pin |
| W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| 285006 Whirlpool Spray |
| WPL 799832 |
| 1 | Screw |
| 3 | Liner, Door |
| 4 | WPW10278991 Whirlpool Insulation |
| 5 | Bracket, Saddle (2) |
| 6 | Hinge, Door (2) |
| 7 | WP3196163 Whirlpool Screw |
| 8 | Panel, Steel (Biscuit) |
| 8 | W10903447 Whirlpool Door Panel Assembly |
| 9 | WP3196143 Whirlpool Spacer Assembly |
| 9 | Spacer, Handle (Biscuit) |
| 10 | Handle, Oven Door (Biscuit) |
| 10 | WP3195263 Whirlpool Door Handle |
| 11 | Screw, Panel (2) (Almond) |
| 11 | 3196558 Whirlpool Oven Screw |
| 13 | WP3196925 Whirlpool Clip Assembly |
| 14 | WP3196175 Whirlpool Screw |
