RF3020XKQ4 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF3020XKQ4 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

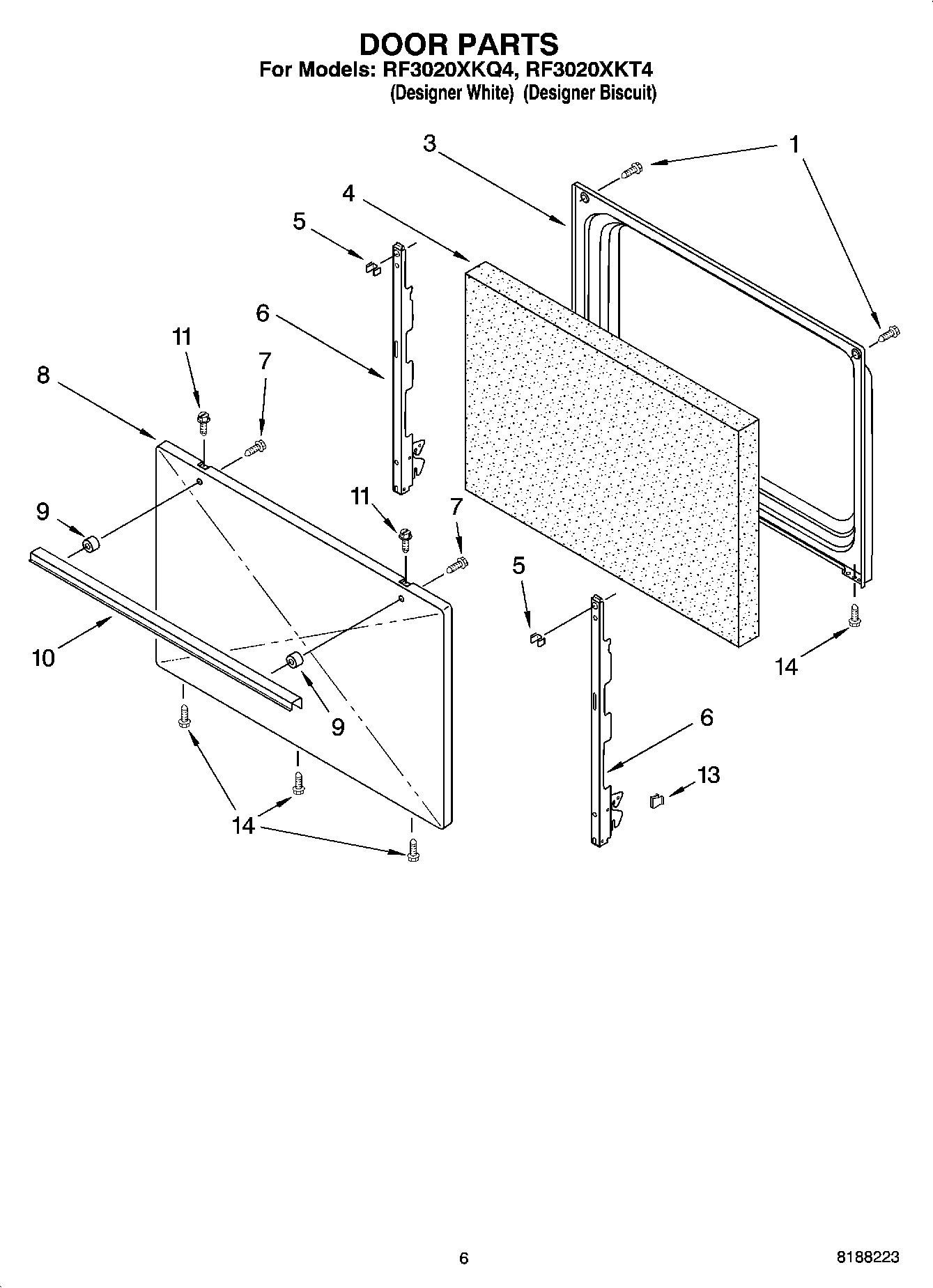

RF3020XKQ4 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI122108A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
3184020 Whirlpool Oven Wire
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI122107A
WPL ARI122106A
WPL ARI122105A
WPL ARI122104A
WPL ARI122103A
WPL ARI122102A
WPL 9757473
WPL ARI122109A
W11396691 Whirlpool Element Receptacle and Wire Kit
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
4396923 Whirlpool Broil Pan Set Gray Porcelain
FOIL, ALUMINUM OVEN (18“ X 25 )
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
WPW10208653 Whirlpool Insulation
Almond (Uncut)
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Clip, Ground Wire
3400964 Whirlpool Oven Clip
350930 Whirlpool White Spray Paint
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPL 799832
1Screw
3Liner, Door
4WPW10278991 Whirlpool Insulation
5Bracket, Saddle (2)
6Hinge, Door (2)
7WP3196163 Whirlpool Screw
8Panel, Steel (Biscuit)
8W10903447 Whirlpool Door Panel Assembly
9WP3196143 Whirlpool Spacer Assembly
9Spacer, Handle (Biscuit)
10WP3195263 Whirlpool Door Handle
10Handle, Oven Door (Biscuit)
113196558 Whirlpool Oven Screw
11Screw, Panel (2) (Almond)
13WP3196925 Whirlpool Clip Assembly
14WP3196175 Whirlpool Screw
