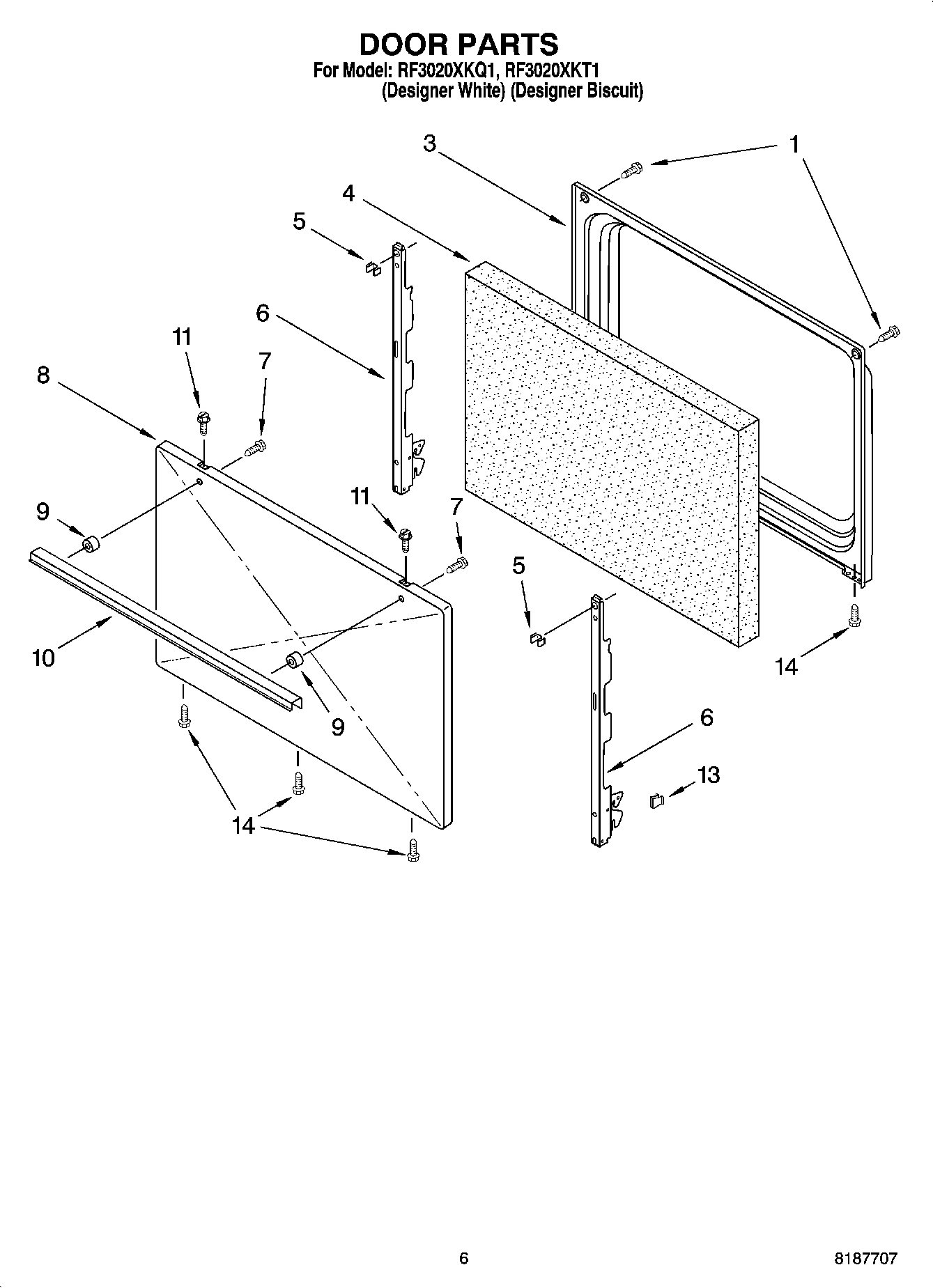

RF3020XKT1 06 – DOOR PARTS

Products

Position	Product
1	Screw
3	Liner, Door
4	WPW10278991 Whirlpool Insulation
5	Bracket, Saddle (2)
6	Hinge, Door (2)
7	WP3196163 Whirlpool Screw
8	W10903447 Whirlpool Door Panel Assembly
8	Panel, Steel (Biscuit)
9	Spacer, Handle (Biscuit)
9	WP3196143 Whirlpool Spacer Assembly
10	Handle, Oven Door (Biscuit)
10	WP3195263 Whirlpool Door Handle
11	3196558 Whirlpool Oven Screw
11	Screw, Panel (2) (Almond)
13	WP3196925 Whirlpool Clip Assembly
14	WP3196175 Whirlpool Screw
