RF3020XKT2 05 – DOOR PARTS, MISCELLANEOUS PARTS

RF3020XKT2 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

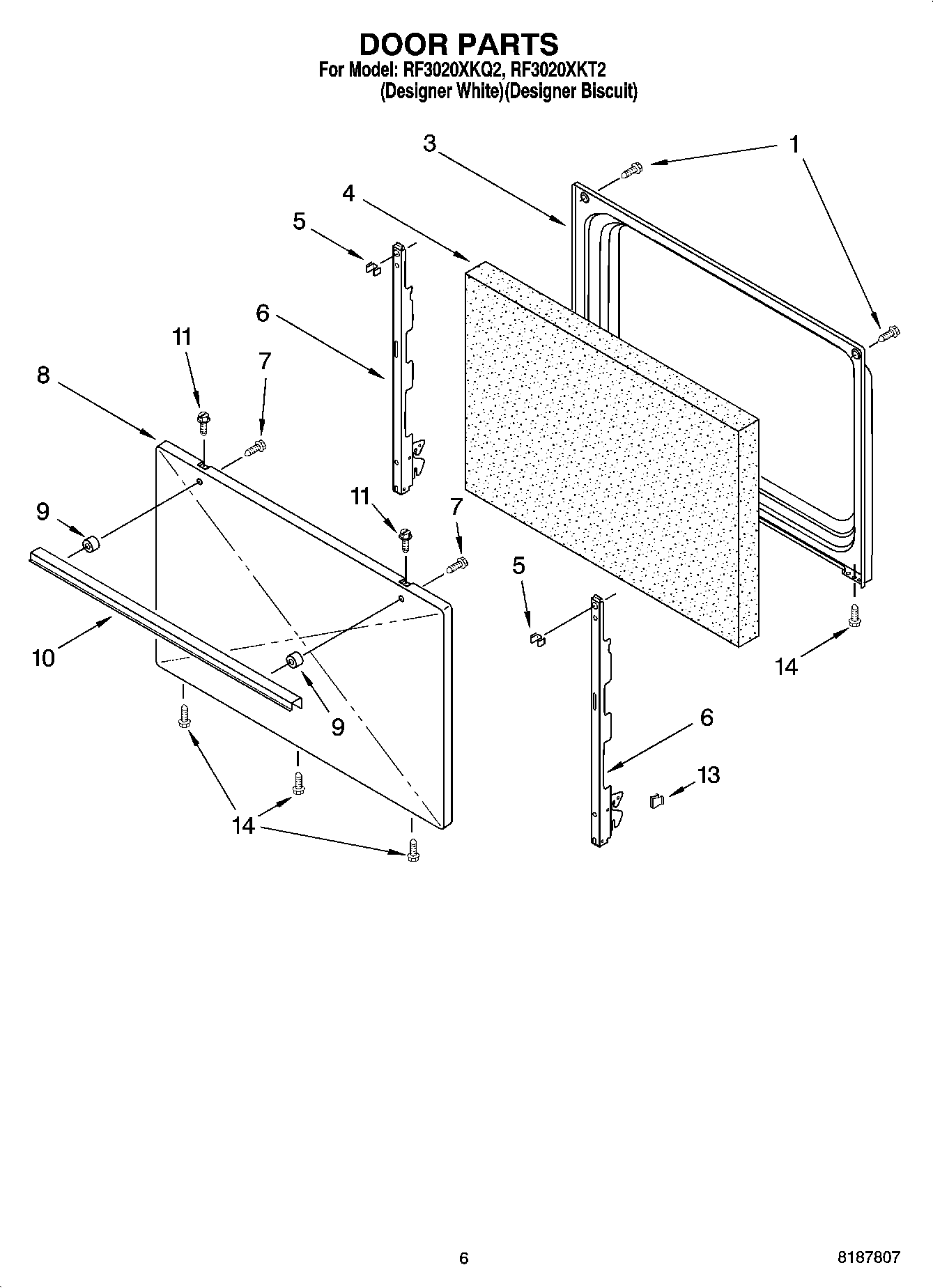

RF3020XKT2 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI122128A
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	WP3196174 Whirlpool Screw
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	WP3196154 Whirlpool Screw Assembly
	WPL ARI122127A
	WPL ARI122126A
	WPL ARI122125A
	WPL ARI122124A
	WPL ARI122123A
	WPL ARI122122A
	WPL 9757473
	WPL ARI122129A
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL 8316781
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WP72107 Whirlpool Touchup
	WPW10208653 Whirlpool Insulation
	Almond (Uncut)
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Clip, Ground Wire
	3400964 Whirlpool Oven Clip
	350930 Whirlpool White Spray Paint
	814381 Whirlpool Pin
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	285006 Whirlpool Spray
	WPL 799832
1	Screw
3	Liner, Door
4	WPW10278991 Whirlpool Insulation
5	Bracket, Saddle (2)
6	Hinge, Door (2)
7	WP3196163 Whirlpool Screw
8	Panel, Steel (Biscuit)
8	W10903447 Whirlpool Door Panel Assembly
9	WP3196143 Whirlpool Spacer Assembly
9	Spacer, Handle (Biscuit)
10	Handle, Oven Door (Biscuit)
10	WP3195263 Whirlpool Door Handle
11	Screw, Panel (2) (Almond)
11	3196558 Whirlpool Oven Screw
13	WP3196925 Whirlpool Clip Assembly
14	WP3196175 Whirlpool Screw
