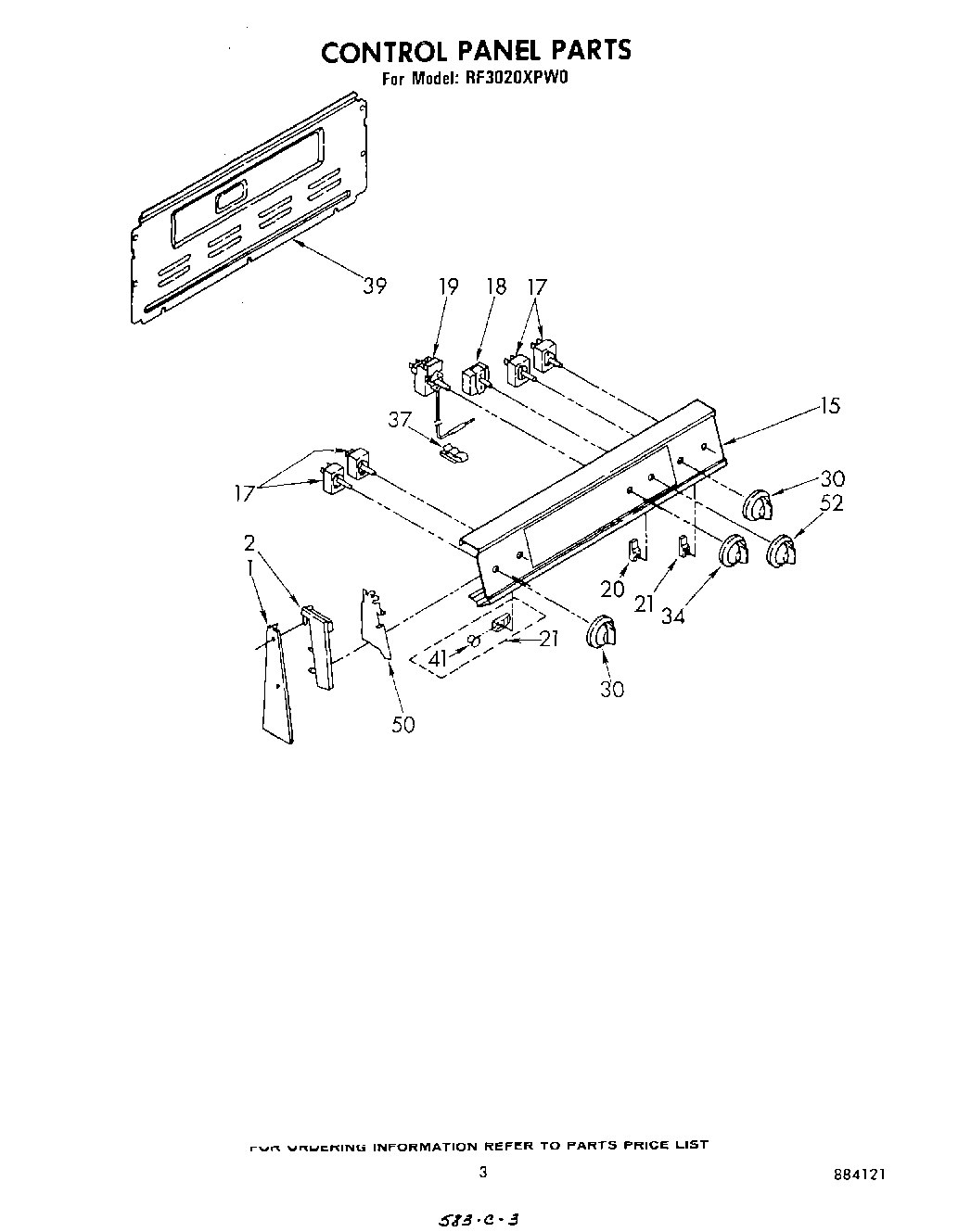

RF3020XPW0 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1WP3390631 Whirlpool Screw
1Screw 10-32×7/16“
1Screw 10-32×1“
2Screw,
2End Cap L.H.
2End Cap R.H.
15Panel, Control (Toast)
15Panel, Control (Gold)
15Panel, Control (Almond)
15Panel, Control (White)
15Panel, Control (Platinum)
15Washer
17WP3149404 Whirlpool Oven Surface Element Switch
17WP3149400 Whirlpool Oven Infinite Switch
18WP486579 Whirlpool Air Conditioner Screw
18Switch, Selector
19Thermostat, Oven
19Thermostat, Oven (Alt.)
19Thermostat, Oven (Alt.)
20Light, Indicator
21Light, Indicator (Surface Unit (2))
30Knob, Switch (4)
34Screw
34Knob, Switch
37Clip, Tube
39SCREW
39Harness-Conduit Asm.
41Lens, Amber
50WP965173 Whirlpool Dishwasher Screw
50Shield (2)
52Knob, Selector
