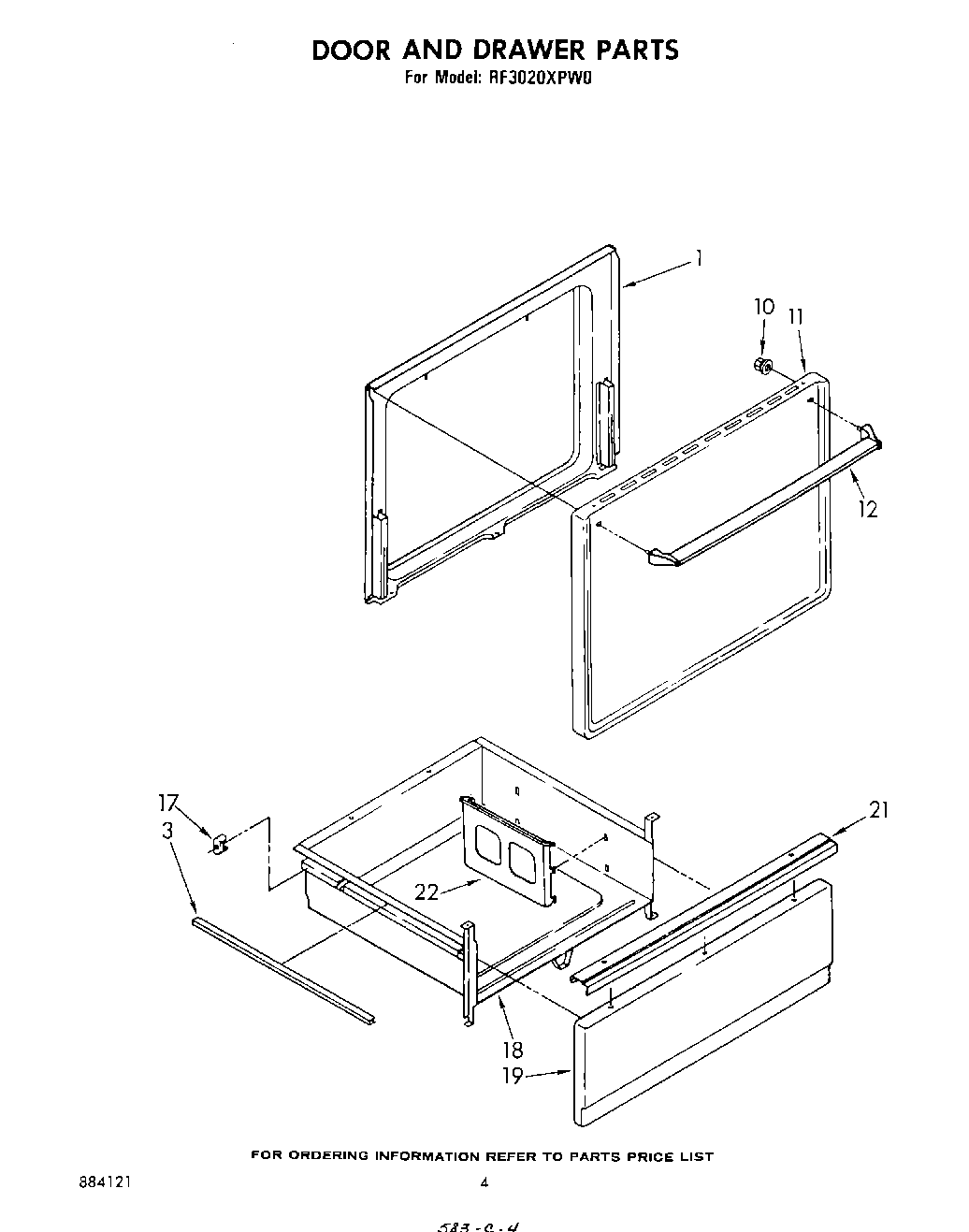

RF3020XPW0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
3	Protector, Drawer (2)
10	WP308499 Whirlpool Nut
11	Panel, Oven Door (White)
11	Panel, Oven Door (Almond)
11	Panel, Door (Harvest Gold)
11	Panel, Door (Toast)
11	Panel, Door (Platinum)
11	Panel, Door (Screw, 8A x 1/2 (2))
12	Handle, Door
17	Glide, Rear (2)
17	Screw, 10A x 1/2 (2) (Black)
18	Drawer, Utility
19	Panel, Drawer (Platinum)
19	Panel, Drawer (Toast)
19	Panel Drawer (Harvest Gold)
19	Panel, Drawer (Almond)
19	Panel Drawer (White)
19	WP488787 Whirlpool Refrigerator Screw
21	Handle, Drawer
21	WP488627 Whirlpool Refrigerator Screw
22	Rack, Literature
