RF3020XVN1 02 – COOKTOP

RF3020XVN1 02 – COOKTOP

Written by

in

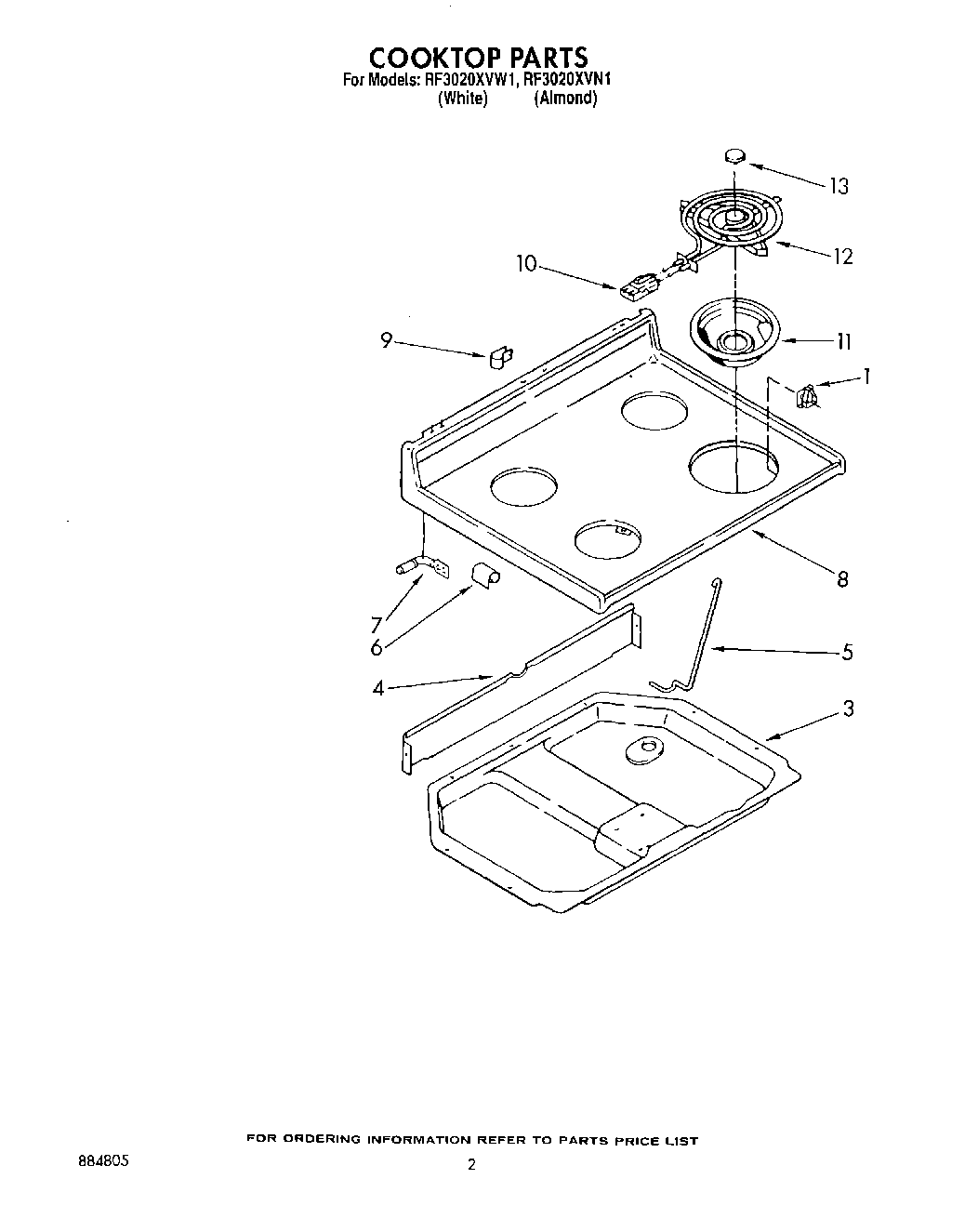

RF3020XVN1 02 – COOKTOP

Products

PositionProduct
1814103 Whirlpool Clip
1Nut (4)
1WP487887 Whirlpool Refrigerator Screw
3WP3390631 Whirlpool Screw
3Box, Burner
4Shield, Wiring
5Rod, Cooktop
6Bracket, Cooktop (2)
7Pin, Cooktop (2)
8Cooktop (White)
8Cooktop (Almond)
9SCREW
9WP308605 Whirlpool Refrigerator Clamp
10WP4332752 Whirlpool Clip
10WP313808 Whirlpool Screw
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP660533 Whirlpool Oven 8" Surface Element
12WP660532 Whirlpool Oven Surface Element
13Medallion (4)
