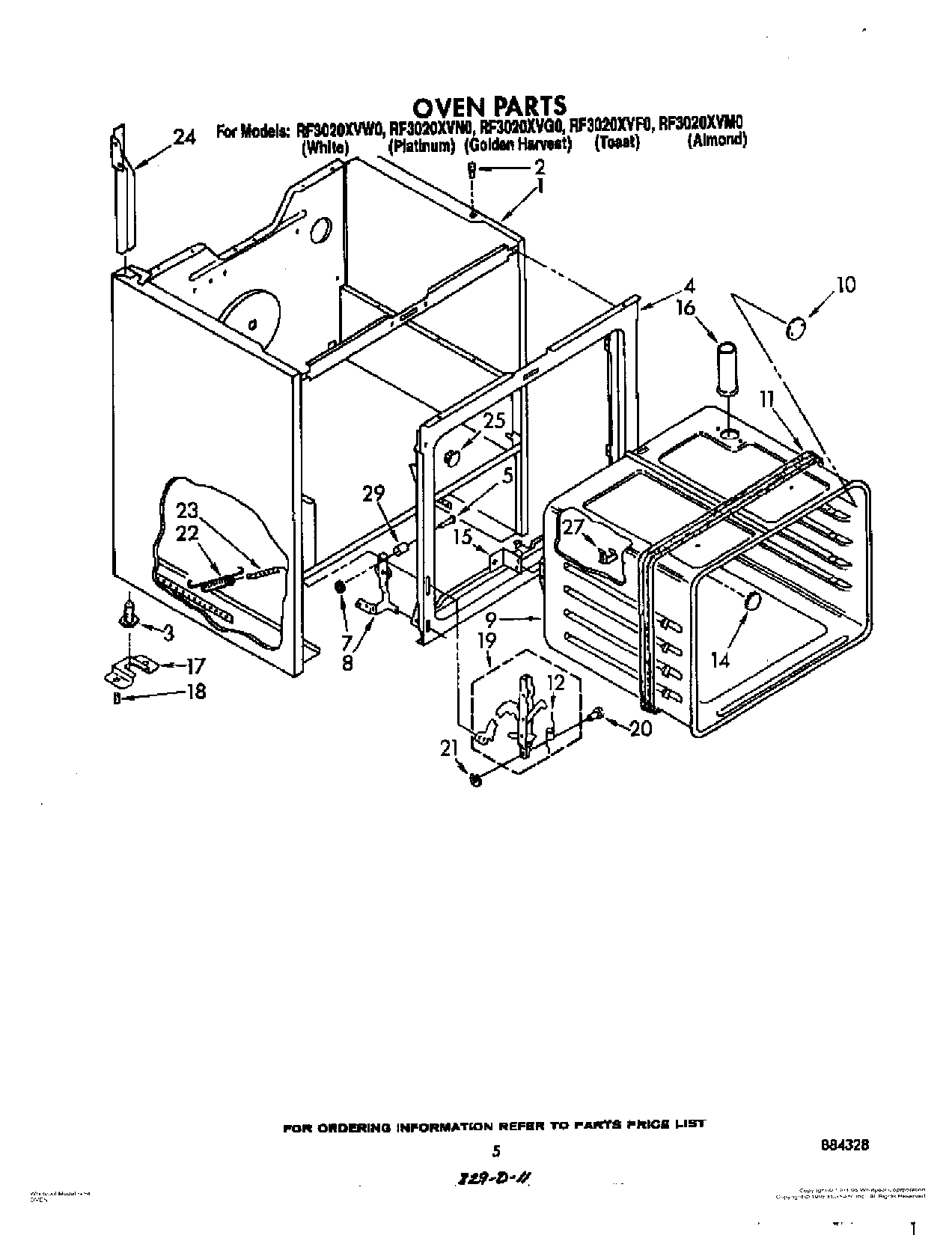

RF3020XVW0 05 – OVEN

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (Platinum)
1	Main Chassis (Toast)
1	Main Chassis (Harvest Gold)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	WPL 329000
10	Screw (3)
10	Cover, Plate
11	Heat Seal
12	Spring, Door Stop
14	Plug Button
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	Screw, 10A x 1/2 (2) (Black)
17	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
17	Screw
18	Anchor, Plastic
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
24	SCREW
25	Plug Button
27	98005642 Whirlpool Clip
29	Snubber, Door (2)
