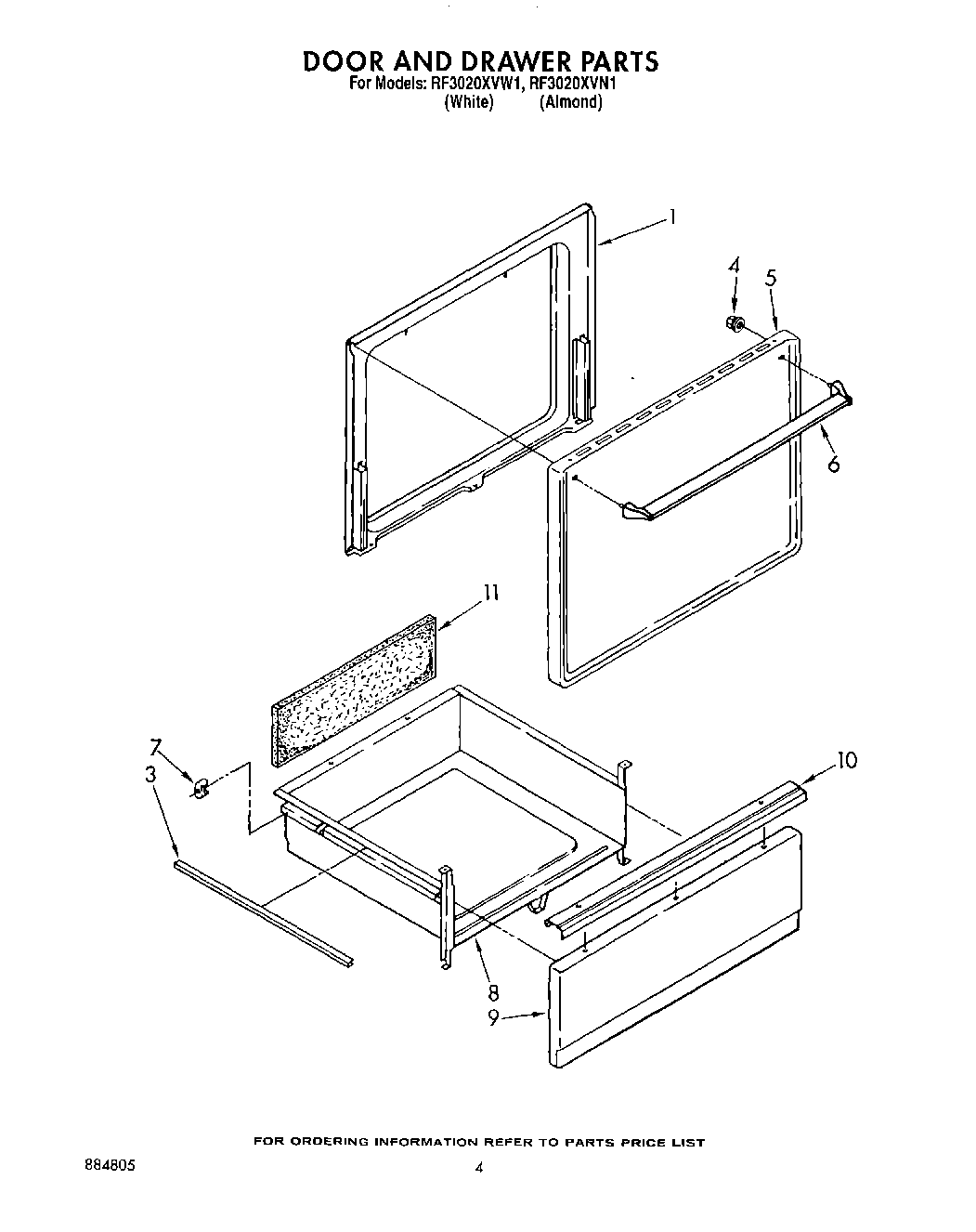

RF3020XVW1 04 – DOOR AND DRAWERadmin2025-04-26T12:51:15+00:00RF3020XVW1 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 3 | Protector, Drawer (2) |
| 4 | WP308499 Whirlpool Nut |
| 5 | Panel, Oven Door (Almond) |
| 5 | Panel, Oven Door (White) |
| 6 | Handle, Door |
| 7 | Screw, 10A x 1/2 (2) (Black) |
| 7 | Glide, Rear (2) |
| 8 | Drawer, Utility |
| 9 | Panel, Drawer (Almond) |
| 9 | Panel Drawer (White) |
| 9 | WP488787 Whirlpool Refrigerator Screw |
| 10 | Handle, Drawer |
| 10 | WP488627 Whirlpool Refrigerator Screw |
| 11 | Pad, Sound |
