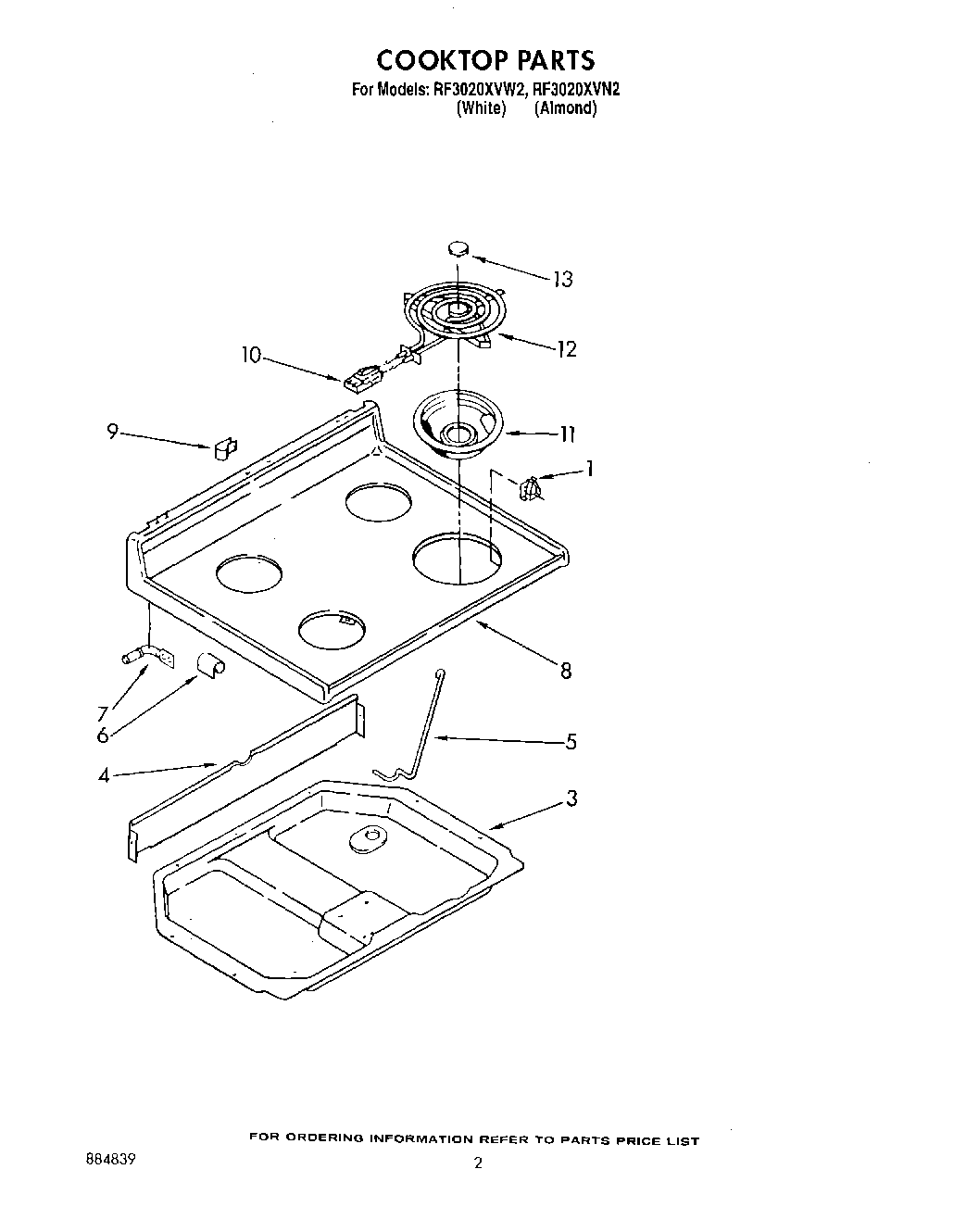

RF3020XVW2 02 – COOKTOP, LIT/OPTIONAL

Products

PositionProduct
List, Parts
Instructions, Installation
Guide, Use & Care
Wiring Diagram
WPL LIT3149507
1814103 Whirlpool Clip
1Nut (4)
1WP487887 Whirlpool Refrigerator Screw
3Box, Burner
3WP3390631 Whirlpool Screw
4Shield, Wiring
5Rod, Cooktop
6Bracket, Cooktop (2)
7Pin, Cooktop (2)
8Cooktop (Almond)
8Cooktop (White)
9WP308605 Whirlpool Refrigerator Clamp
9SCREW
10WP313808 Whirlpool Screw
10WP4332752 Whirlpool Clip
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP660533 Whirlpool Oven 8" Surface Element
12WP660532 Whirlpool Oven Surface Element
13Medallion (4)
