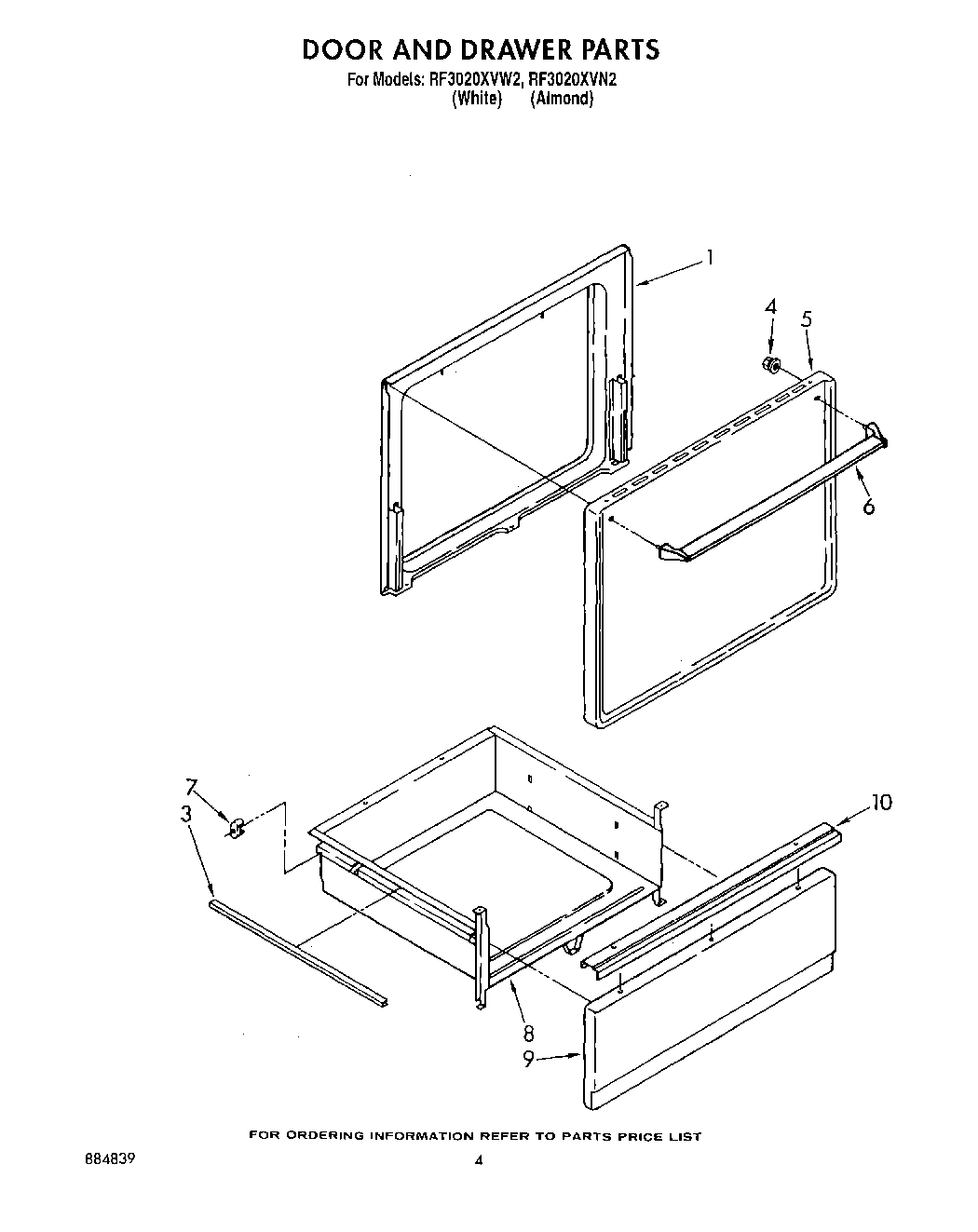

RF3020XVW2 04 – DOOR AND DRAWER

RF3020XVW2 04 – DOOR AND DRAWER

Written by

in

RF3020XVW2 04 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
3Protector, Drawer (2)
4WP308499 Whirlpool Nut
5Panel, Oven Door (Almond)
5Panel, Oven Door (White)
6Handle, Door
7Screw, 10A x 1/2 (2) (Black)
7Glide, Rear (2)
8Drawer, Utility
9Panel, Drawer (Almond)
9Panel Drawer (White)
9WP488787 Whirlpool Refrigerator Screw
10Handle, Drawer
10WP488627 Whirlpool Refrigerator Screw
