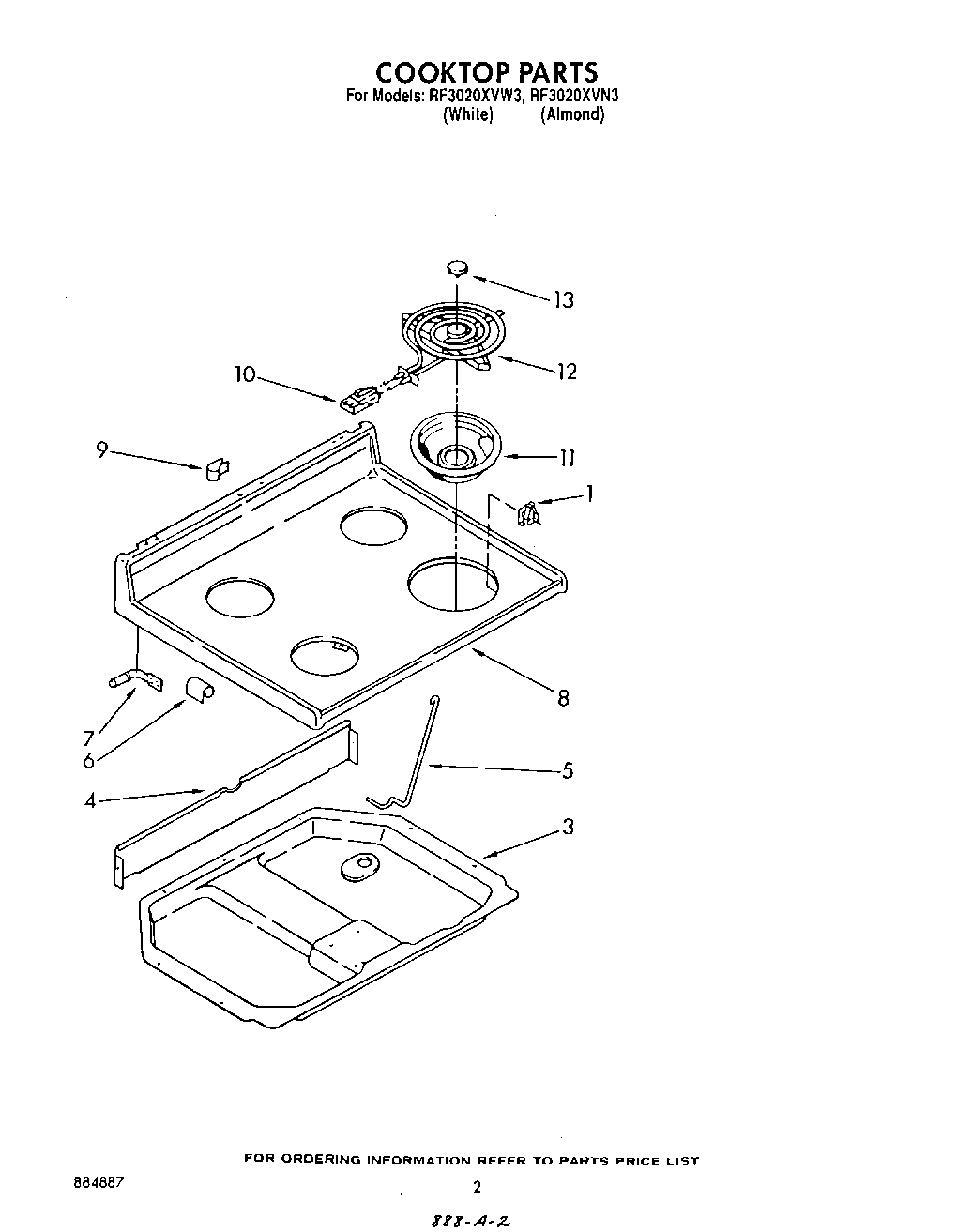

RF3020XVW3 02 – COOK TOP

Products

Position	Product
	List, Parts
	Guide, Use & Care
	Wiring Diagram
	Instructions, Installation
	WPL LIT3149507
	WP660533 Whirlpool Oven 8" Surface Element
1	814103 Whirlpool Clip
1	Nut (4)
1	WP487887 Whirlpool Refrigerator Screw
3	Box, Burner
3	WP3390631 Whirlpool Screw
4	Shield, Wiring
5	Rod, Cooktop
6	Bracket, Cooktop (2)
7	Pin, Cooktop (2)
8	Cooktop (Almond)
8	Cooktop (White)
9	SCREW
9	WP308605 Whirlpool Refrigerator Clamp
10	WP313808 Whirlpool Screw
10	WP4332752 Whirlpool Clip
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WP660532 Whirlpool Oven Surface Element
13	Medallion (4)
