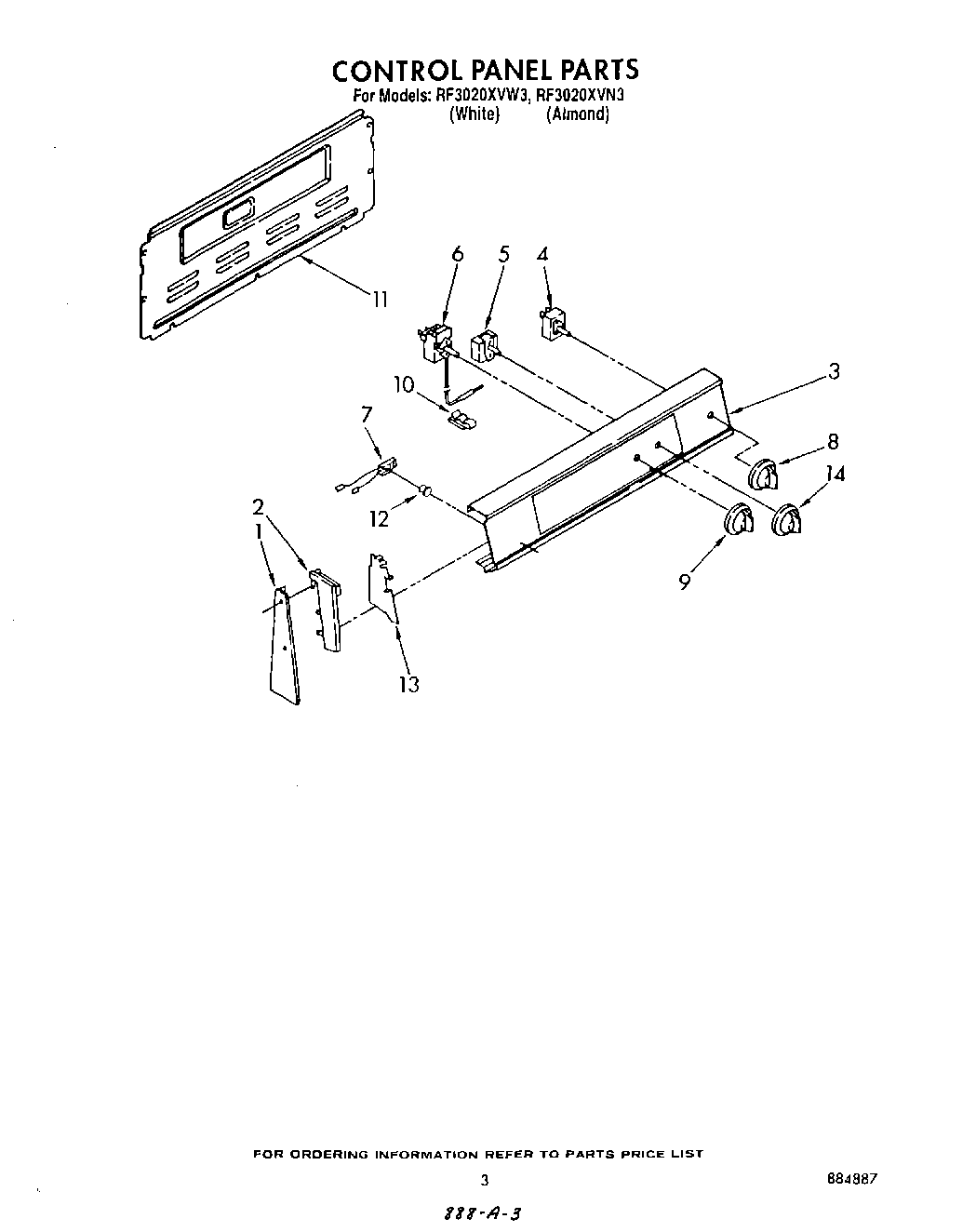

RF3020XVW3 03 – CONTROL PANEL

RF3020XVW3 03 – CONTROL PANEL

Written by

in

RF3020XVW3 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap R.H.
2End Cap L.H.
2Screw,
3Panel, Control (Almond)
3Support-Top Burner
3Washer
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5WP486579 Whirlpool Air Conditioner Screw
5Switch, Selector
6Thermostat, Oven
6Thermostat, Oven (Alt.)
6Thermostat, Oven (Alt.)
7Light, Indicator (250V)
7Light, Indicator (Surface Unit (2))
8WP3149983 Whirlpool Knob
9Knob, Temperature
10Clip, Tube
11Harness-Conduit Asm.
11SCREW
12Lens, Amber
13Shield (2)
13WP965173 Whirlpool Dishwasher Screw
14Knob, Selector
