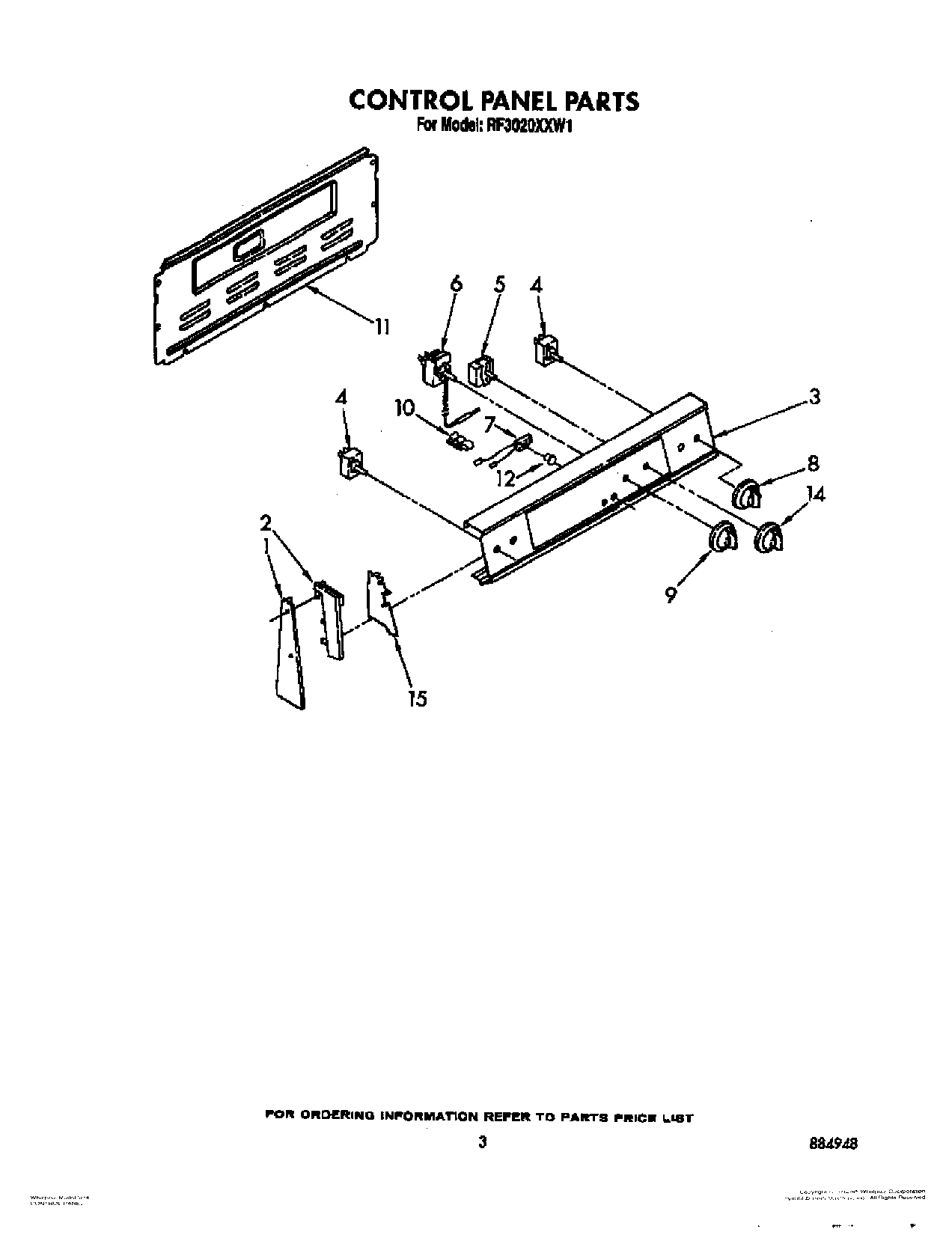

RF3020XXN1 03 – CONTROL PANEL

RF3020XXN1 03 – CONTROL PANEL

Written by

in

RF3020XXN1 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap, R.H. (White/Almond/Gold)
2(End Cap, L.H.) (White/Almond/Gold)
2Screw,
3Washer
3Panel, Control (Almond)
3Panel, Control (White)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5WP486579 Whirlpool Air Conditioner Screw
5Switch, Selector
6Thermostat, Oven (Alt.)
6Thermostat, Oven (Alt.)
6Thermostat, Oven
7Light, Indicator (Includes No. 12) (Surface Unit On)
7Light, Indicator (250V)
8WP3149983 Whirlpool Knob
9Knob, Temperature
10Clip, Tube
11SCREW
11Harness-Conduit Asm.
12Lens, Amber
14Knob, Selector
15Shield (2)
15WP965173 Whirlpool Dishwasher Screw
