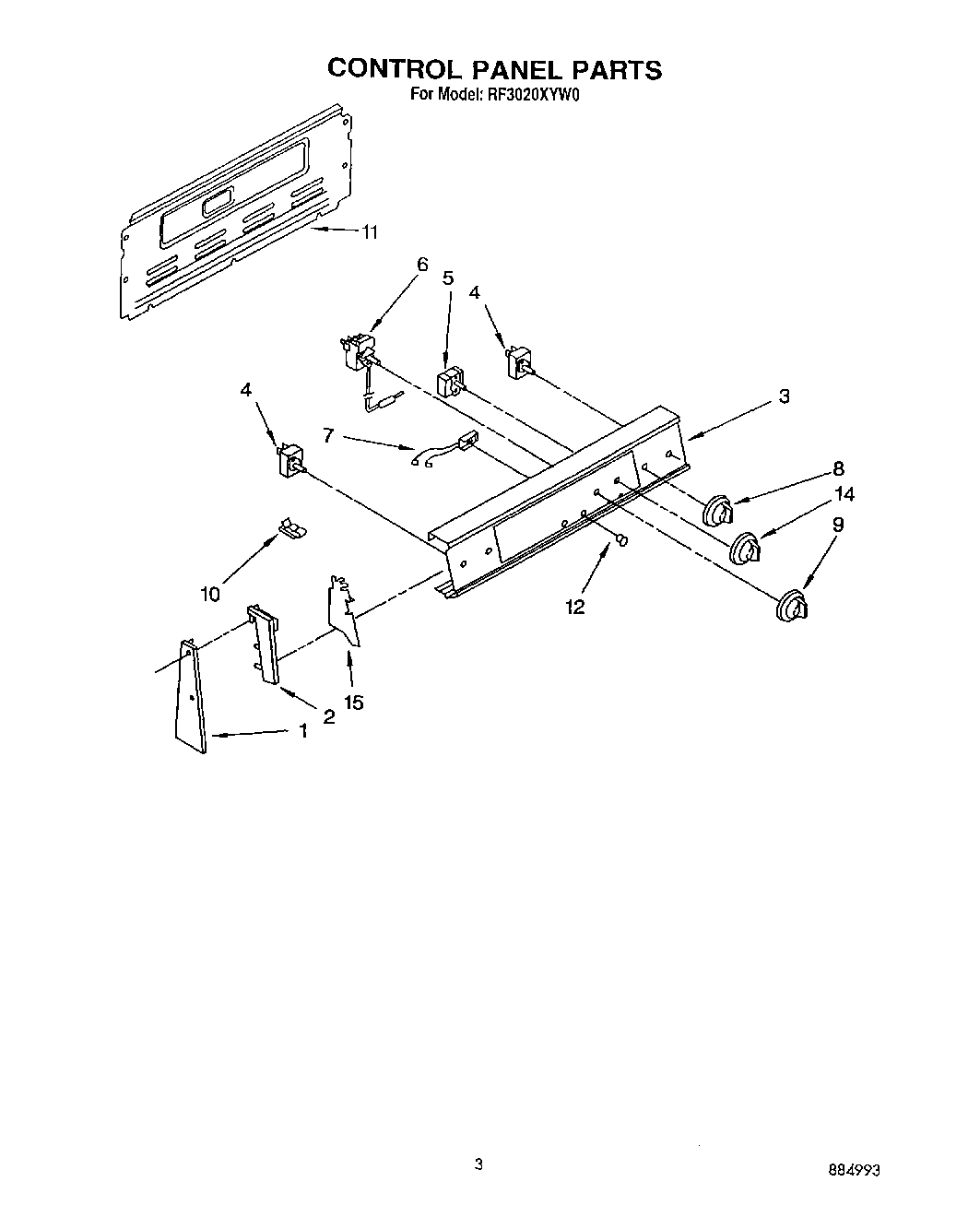

RF3020XYN0 03 – CONTROL PANEL

RF3020XYN0 03 – CONTROL PANEL

Written by

in

RF3020XYN0 03 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap, R.H. (White/Almond/Gold)
2Screw,
2End Cap, R.H. (White/Almond/Gold)
3Washer
3Panel, Control (White/Almond/Gold)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5WP486579 Whirlpool Air Conditioner Screw
5Switch, Selector
6Thermostat, Oven (Alt.)
6Thermostat, Oven
6Thermostat, Oven (Alt.)
6WP313808 Whirlpool Screw
7Light, Indicator (Includes No. 12) (Surface Unit On)
7Light, Indicator (250V)
8Knob, (4) Infinite Switch (White/Almond/Gold)
9Knob, Thermostat
10Clip, Tube
11Harness-Conduit Asm.
11SCREW
12Lens, Amber
14Knob, Selector (White/Almond/Gold)
15Shield (2)
15WP965173 Whirlpool Dishwasher Screw
