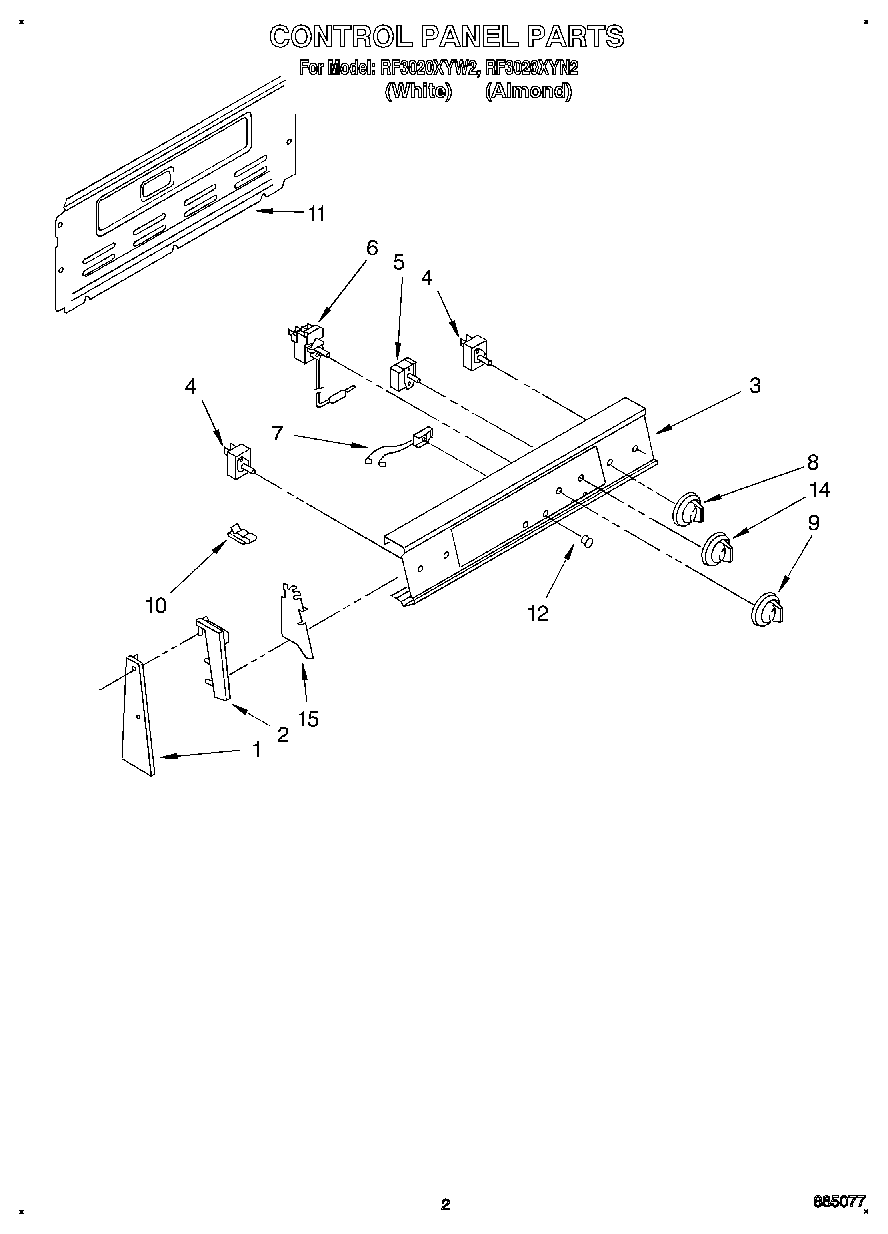

RF3020XYW2 02 – CONTROL PANELadmin2025-04-26T12:52:38+00:00RF3020XYW2 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Screw 10-32x1`` |
| 1 | Screw 10-32x7/16`` |
| 2 | End Cap, R.H. (White/Almond/Gold) |
| 2 | End Cap, R.H. (White/Almond/Gold) |
| 2 | Screw, |
| 3 | Washer |
| 3 | Panel, Control (White/Almond/Gold) |
| 4 | SWITCH-INF |
| 4 | WP3149404 Whirlpool Oven Surface Element Switch |
| 5 | Switch, Selector |
| 5 | Screw, 8-32 x 3/16 (2) |
| 6 | WP313808 Whirlpool Screw |
| 6 | Thermostat, Oven (Alt.) |
| 6 | Thermostat, Oven (Alt.) |
| 6 | Thermostat, Oven |
| 7 | Light, Indicator (250V) |
| 7 | Light, Indicator (Includes No. 12) (Surface Unit On) |
| 8 | Knob, (4) Infinite Switch (White/Almond/Gold) |
| 9 | Knob, Thermostat |
| 10 | Clip, Tube |
| 11 | Rear Cover Contr |
| 11 | SCREW |
| 12 | Lens, Amber |
| 14 | Knob, Selector (White/Almond/Gold) |
| 15 | Shield (2) |
| 15 | WP965173 Whirlpool Dishwasher Screw |
