RF302BXDQ0 02 – CONTROL PANEL
Written by
in

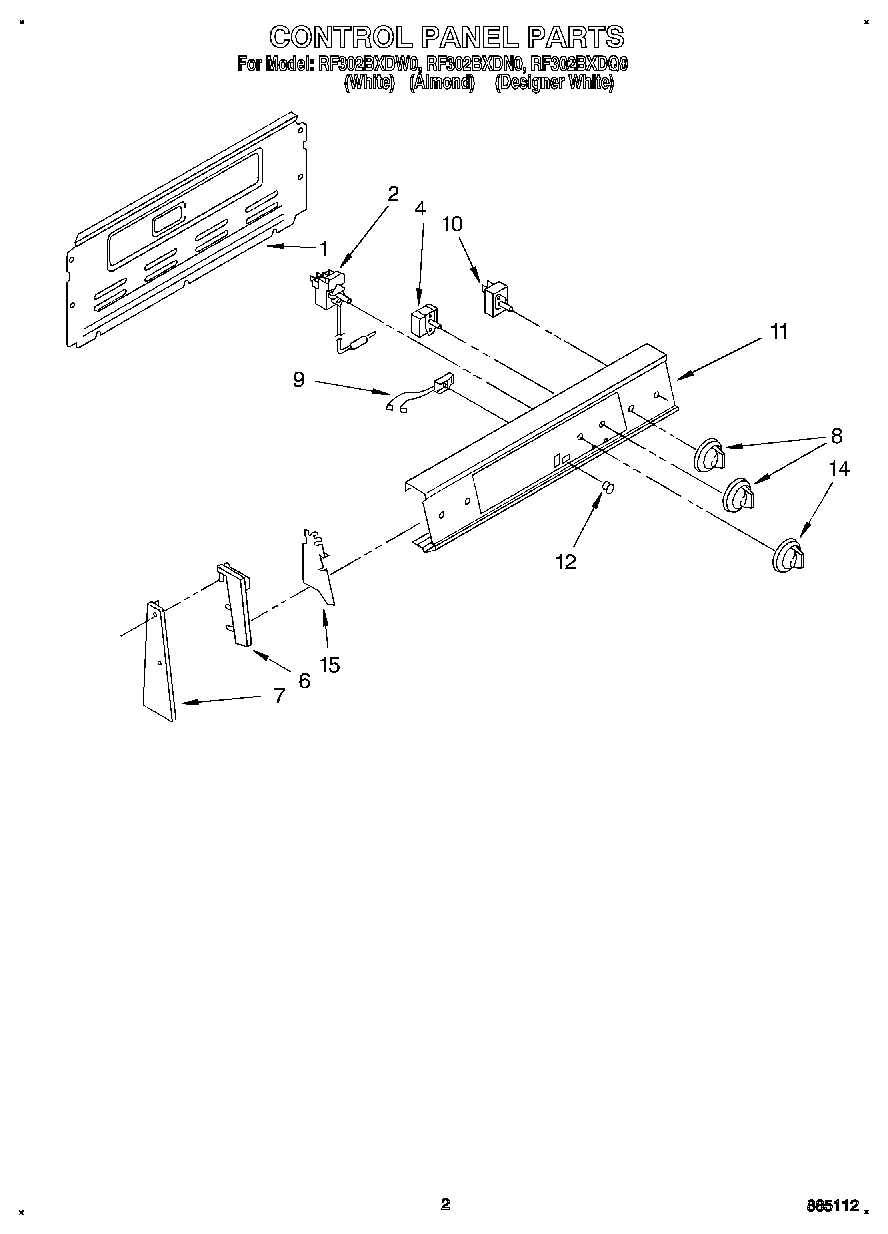

RF302BXDQ0 02 – CONTROL PANEL
Products
Position
Product
1
Rear Cover Contr
2
Thermostat, 0ven
2
WP313808 Whirlpool Screw
4
WP3188987 Whirlpool Oven Switch
6
End Cap, R.H. (Black)
6
End Cap R.H. (Designer White)
6
Screw,
6
End Cap L.H. (Designer White)
6
End Cap L.H. (Black)
7
End Trim (LH, Black)
7
End Trim R.H. (Designer White)
7
End Trim (LH, Designer White)
7
WP3390631 Whirlpool Screw
7
End Trim R.H. (Black)
7
SCREW
8
WP3196231 Whirlpool Knob
8
WP3196232 Whirlpool Knob
9
Light, Indicator (250V)
9
Indicator Light (Surface Unit On)
10
SWITCH-INF
10
WP3149404 Whirlpool Oven Surface Element Switch
10
Screw, 8-32 x 3/16 (2)
11
Panel, Control (Black)
11
Panel, Control (Designer White Mdl)
11
Washer
12
Lens, Amber
14
Knob, Thermostat (Black)
14
Knob, Thermostat (Designer White)
15
WP965173 Whirlpool Dishwasher Screw
15
Shield (2)
←
