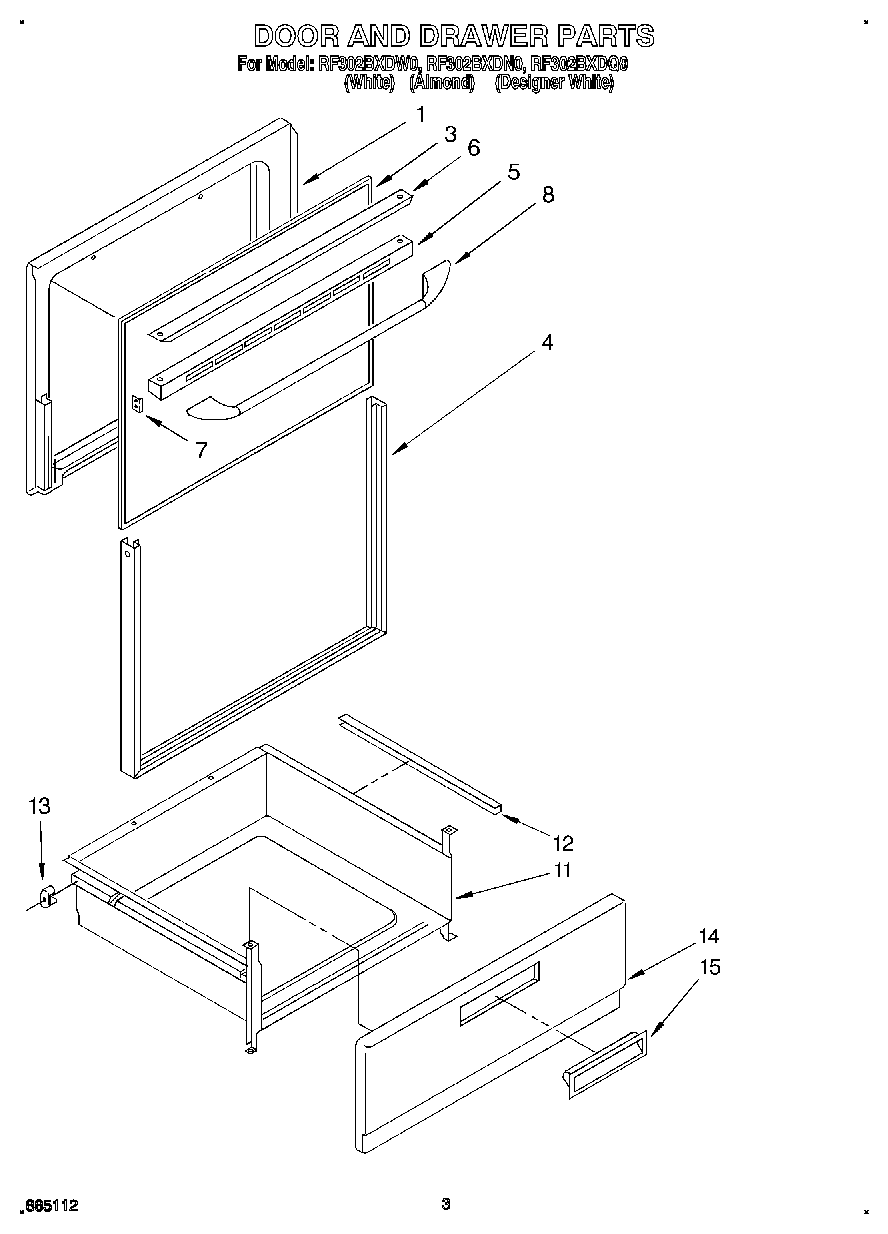

RF302BXDW0 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
1	Screw, 10A x 1/2 (2) (Black)
3	Outer Glass Panel (Designer White)
3	Panel, Door (Black Glass)
4	Frame, Door (White)
4	Frame, Door (Black)
4	Back Splash (Screw (4) 10AB x 1/2“)
4	Screw
4	Handle, Door (Screw)
4	Handle, Door (Screw (4))
5	Top, Door Frame (Designer White)
5	Top, Door Frame (Black)
6	Top, Door Frame (Screw (2))
6	Cap, Top (Designer White)
7	Clip, Mtg (2)
8	Handle, Door (Black)
8	Handle, Door (White)
8	WP999367 Whirlpool Refrigerator Screw
11	Drawer, Utility
12	Protector, Drawer (2)
13	WP308685 Whirlpool Microwave Screw
13	Glide, Rear (2)
14	Panel, Drawer (Almond)
14	Panel, Drawer (White)
14	WP488627 Whirlpool Refrigerator Screw
15	Handle, Snap-In (White)
15	Handle, Snap-In (Almond)
