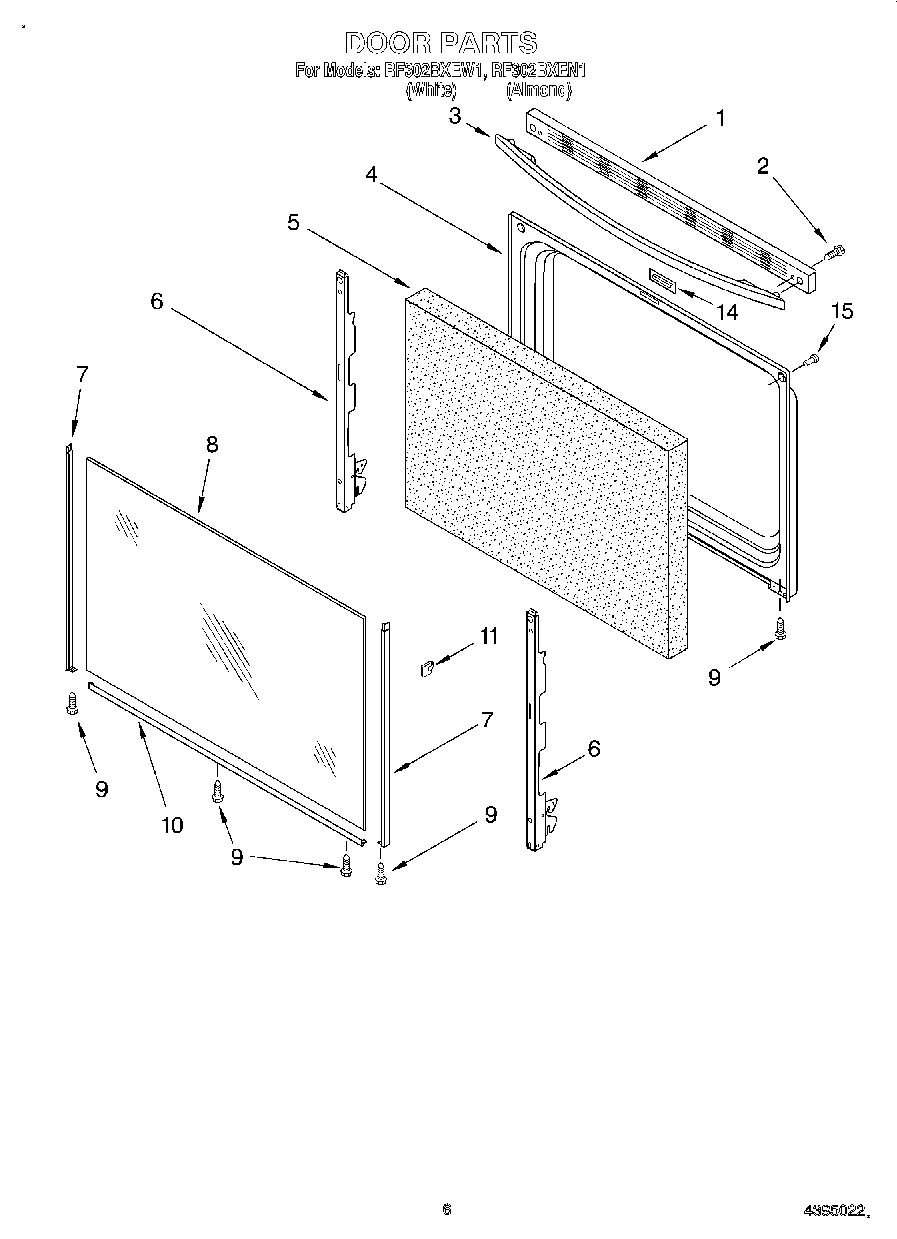

RF302BXEN1 05 – DOOR, LIT/OPTIONAL

RF302BXEN1 05 – DOOR, LIT/OPTIONAL

Written by

in

RF302BXEN1 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	3400964 Whirlpool Oven Clip
	3184020 Whirlpool Oven Wire
	WPL LIT3195946
	WP3196154 Whirlpool Screw Assembly
	Literature (Installation, Instructions (Template))
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL LIT3195944
	WPL LIT3196804
	WPL 3196801
1	WP3196164 Whirlpool Screw
1	Trim, Top (Black)
2	WP179051 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
6	Hinge, Door (2)
8	Glass, Door (Black)
9	W10491985 Whirlpool Screw
10	8184858 Whirlpool Door Trim
11	Clip, Glass (4)
14	Plug, Door
15	8212471 Whirlpool Oven Paint
15	Wire (14 Ga. 150 c Blue)
15	72113 Whirlpool Touch-Up Paint
15	Wire (14 Ga. 150 c Brown)
15	Wire (14 Ga. 150 c Green)
15	Wire (14 Ga. 150 c Orange)
15	Wire (14 Ga. 150 c Yellow)
15	Wire (12 Ga. 150 c Black)
15	18 Ga. 80~c Rating (Red)
15	Grease
15	Wire (14 Ga. 200 c Brown)
15	1
15	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
15	242831 Whirlpool Oven Wire
15	Wire, 25“ Roll (White 14 GA.)
15	Platinum (Uncut)
15	Enamal, Toast (1 Qt. Uncut)
15	Paint, Spray (13 Oz.) (Platinum)
15	Toast
15	Golden Harvest (Uncut)
15	Golden Harvest
15	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
15	Almond (Uncut)
15	WP72107 Whirlpool Touchup
15	799344 Whirlpool Refrigerator Paint
15	72017 Whirlpool Appliance Touch-Up Paint White
15	350956 Whirlpool Spray Assembly
15	WPL 72112
15	350942 Whirlpool Spray Paint
15	511873 Whirlpool Refrigerator Paint
15	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
15	Paint, Spray 13 Oz. (Avocado)
15	paint, spray 13 oz. (coffee)
15	Paint, Touch-Up 1/2 Oz. (Coffee)
15	72109 Whirlpool Dacor Avocado Touch-Up Paint
15	285006 Whirlpool Spray
15	Wire, 25` Roll (Red 14 Ga.)
15	Wire, 25` Roll (Black 14 Ga.)
15	FOIL, ALUMINUM OVEN (18“ X 25 )
15	WPW10208653 Whirlpool Insulation
15	238614 Whirlpool Bumper Hinge
15	WPL 799832
15	350930 Whirlpool White Spray Paint
