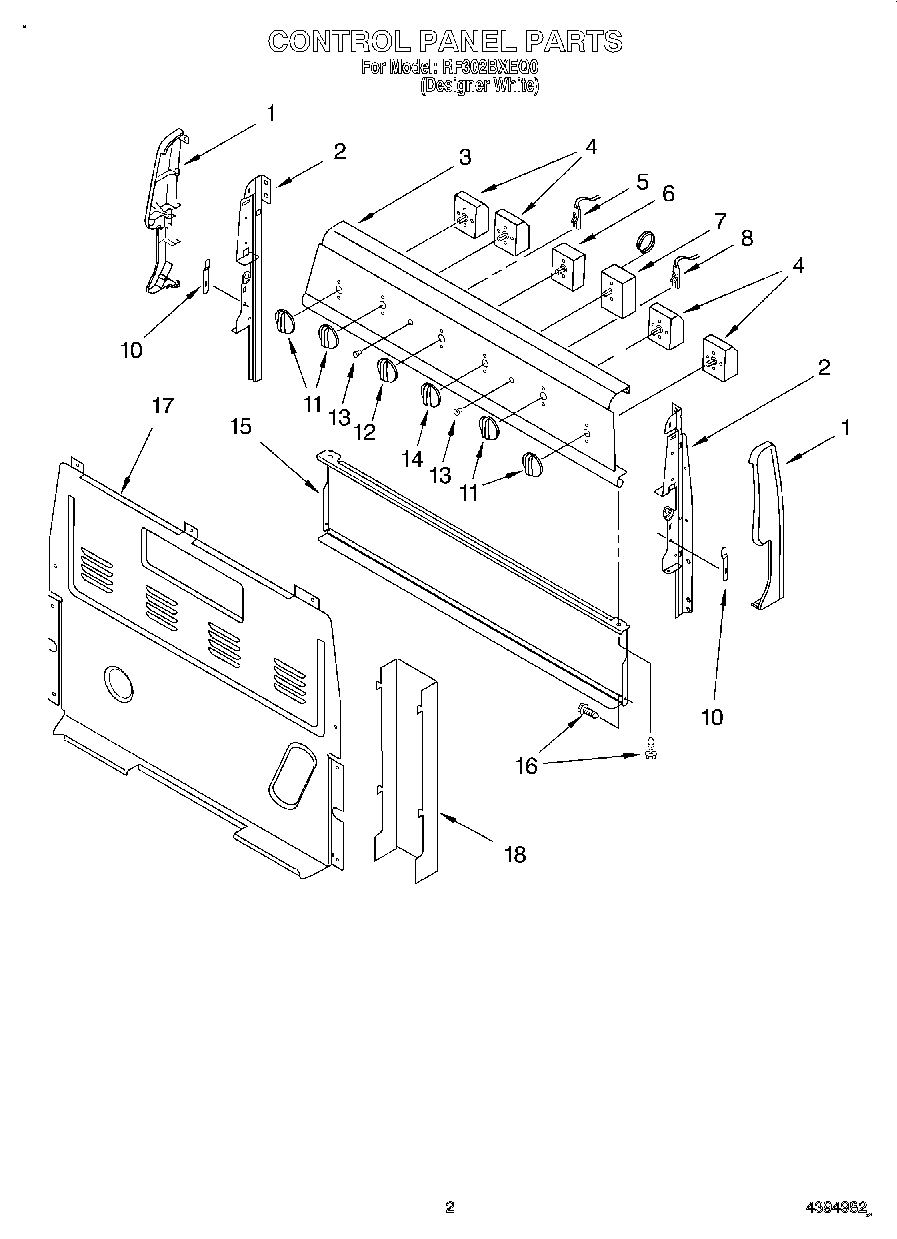

RF302BXEQ0 02 – CONTROL PANEL

RF302BXEQ0 02 – CONTROL PANEL

Written by

in

RF302BXEQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5Indicator, Surface
6WP3188987 Whirlpool Oven Switch
6Switch, Infinite (Screw (8))
7Thermostat
7WP3196170 Whirlpool Screw
8Light, Indicator (250V)
103196200 Whirlpool Clip
12WP3196232 Whirlpool Knob
13WP3196068 Whirlpool Light Lens
14Knob, Thermostat
15Shield, Heat
16Screw
17WP8272473 Whirlpool Rear Cover
18WPW10326122 Whirlpool Black Cover
18SCREW
