RF302BXEQ0 04 – DRAWER AND BROILER

RF302BXEQ0 04 – DRAWER AND BROILER

Written by

in

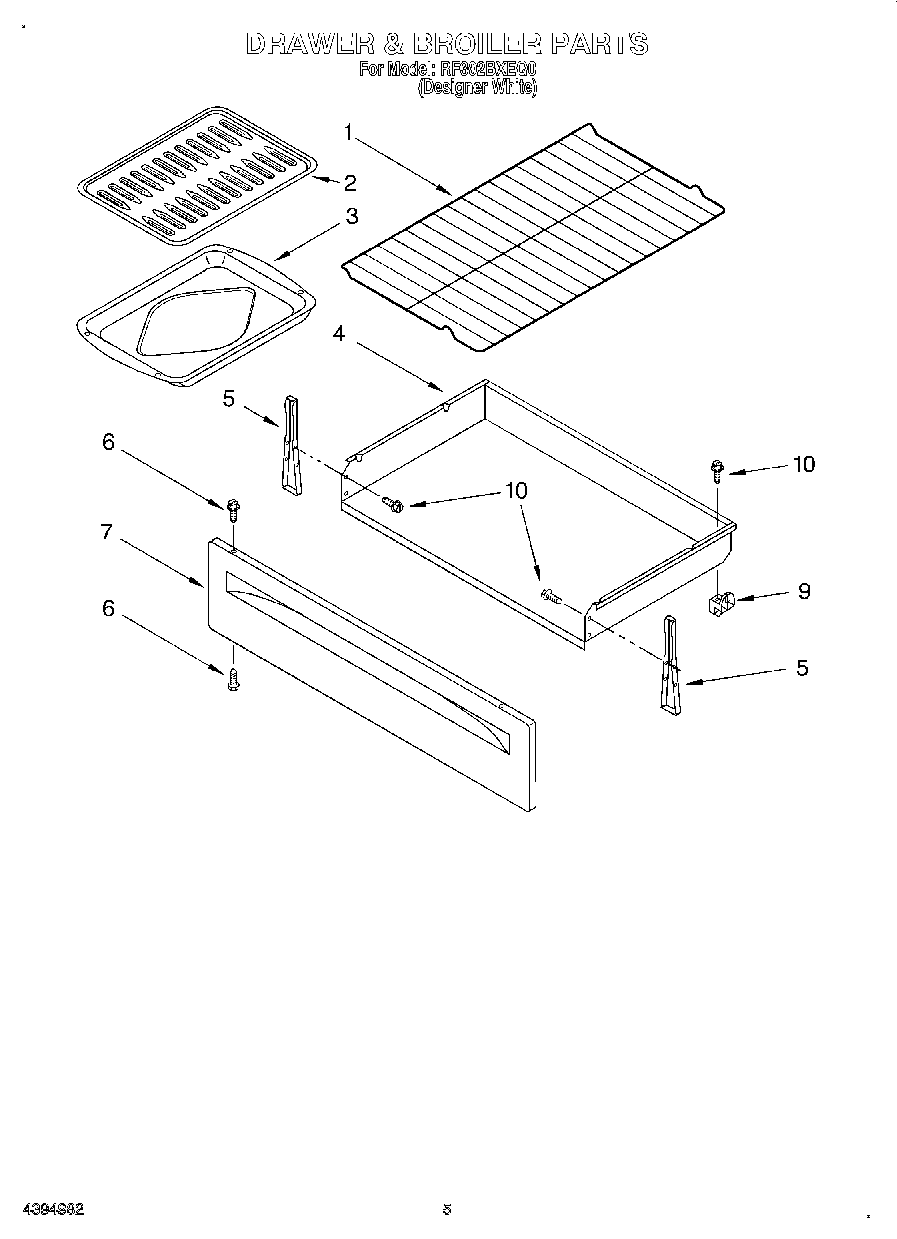

RF302BXEQ0 04 – DRAWER AND BROILER

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
63196558 Whirlpool Oven Screw
7W11219377 Whirlpool Drawer Panel
9WP8053334 Whirlpool Drawer Glide
10WP3400832 Whirlpool Screw
