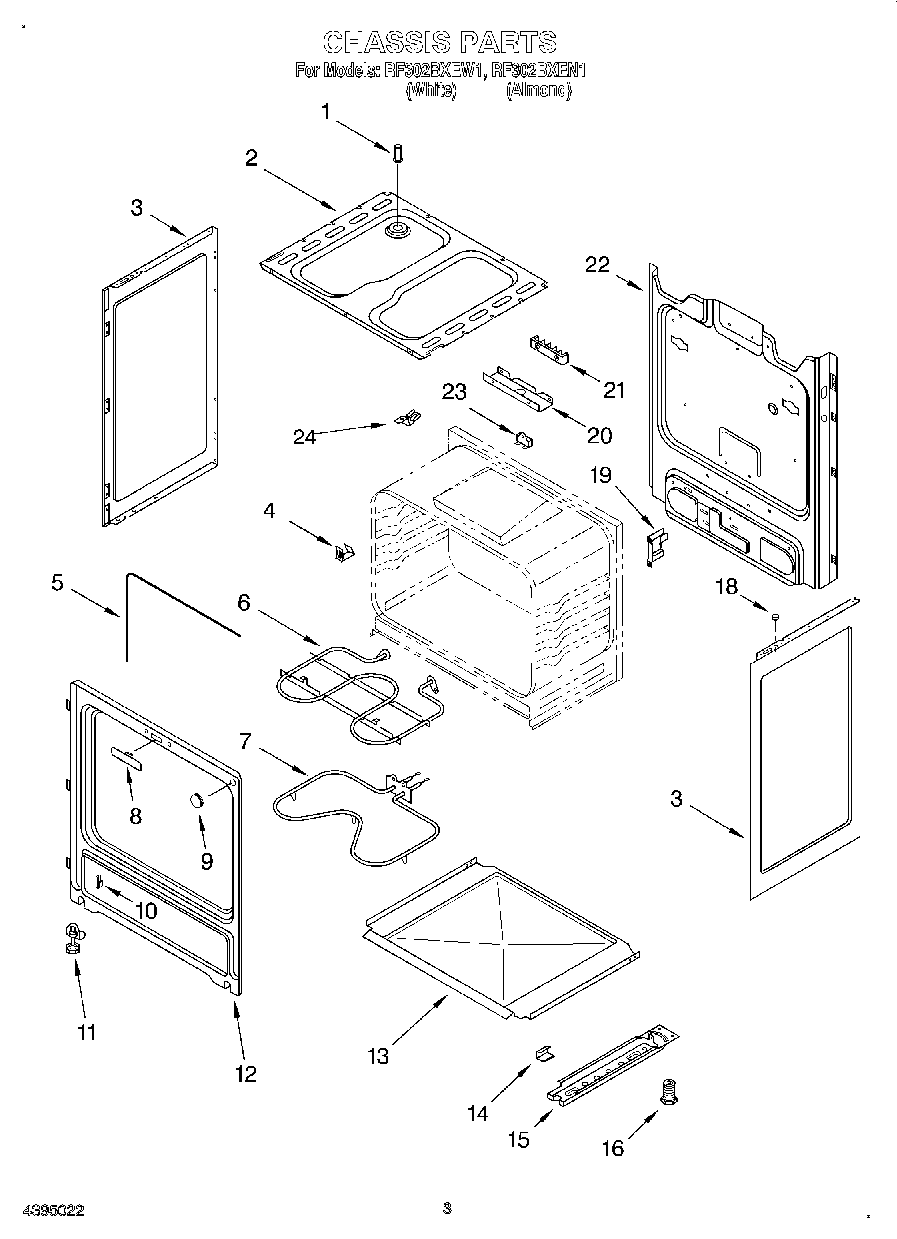

RF302BXEW1 03 – CHASSIS

Products

Position	Product
1	9755804 Whirlpool Oven Vent Tube
1	WP3196567 Whirlpool Screw
2	W11699791 Whirlpool Burner Box
2	WP3400832 Whirlpool Screw
3	Panel, Side (2) (Almond)
3	Panel, Side (2) (White)
4	98005642 Whirlpool Clip
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WP3196174 Whirlpool Screw
7	WPW10308477 Whirlpool Bake Element
8	Plug, Frame
9	Plug Button
10	WP3195546 Whirlpool Drawer Glide
11	Screw
11	WP3196037 Whirlpool Leveling Foot
12	Frame, Front
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
18	238614 Whirlpool Bumper Hinge
19	W10404688 Whirlpool Bracket Support
19	WP3196175 Whirlpool Screw
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
21	WP3400016 Whirlpool Screw Assembly
22	Back, Main
22	SCREW
23	WP3196548 Whirlpool Thermal Fuse
23	3196172 Whirlpool Oven Screw
24	W11244557 Whirlpool Screw
24	Ground Strap
24	Clip, Ground Wire
24	WPW10208653 Whirlpool Insulation
24	WP112432 Whirlpool Nut Assembly
24	WP8272612 Whirlpool Insulation
