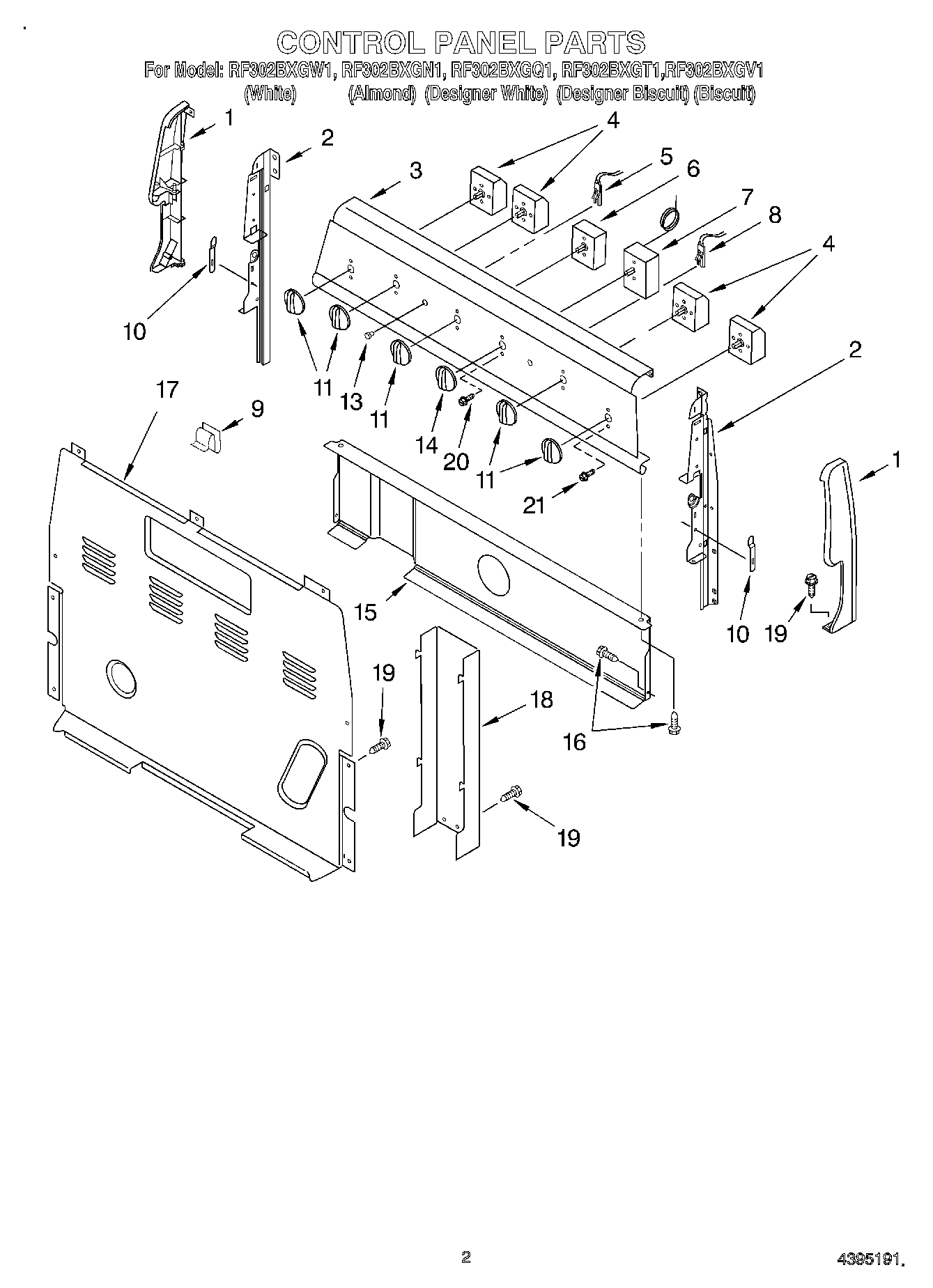

RF302BXGN1 02 – CONTROL PANELadmin2025-04-26T12:53:08+00:00RF302BXGN1 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Endcap (Biscuit Right Hand) |
| 1 | Endcap (White Right Hand) |
| 1 | Endcap (White Left Hand) |
| 1 | Endcap (Black Left Hand) |
| 1 | Endcap, Right Hand (Black) |
| 1 | Endcap (Biscuit Left Hand) |
| 2 | Support, Endcap (Left Hand) |
| 2 | Support, Endcap (Right Hand) |
| 3 | Panel, Backguard (Black) |
| 3 | Panel, Backguard (Biscuit) |
| 3 | Panel, Backguard |
| 4 | WP3149404 Whirlpool Oven Surface Element Switch |
| 4 | SWITCH-INF |
| 5 | Indicator, Surface |
| 6 | WP3188987 Whirlpool Oven Switch |
| 7 | WP3196803 Whirlpool Oven Thermostat |
| 8 | Light, Indicator (250V) |
| 9 | WP8273564 Whirlpool Clip |
| 10 | 3196200 Whirlpool Clip |
| 11 | WP3196232 Whirlpool Knob |
| 11 | WP3196231 Whirlpool Knob |
| 13 | WP3196068 Whirlpool Light Lens |
| 14 | Knob, Thermostat |
| 14 | Knob, Thermostat |
| 14 | Knob, Thermostat (Biscuit) |
| 15 | Shield, Heat |
| 16 | Screw |
| 17 | WP8272473 Whirlpool Rear Cover |
| 18 | WPW10326122 Whirlpool Black Cover |
| 19 | SCREW |
| 20 | WP3196170 Whirlpool Screw |
| 21 | WP3400882 Whirlpool Screw |
