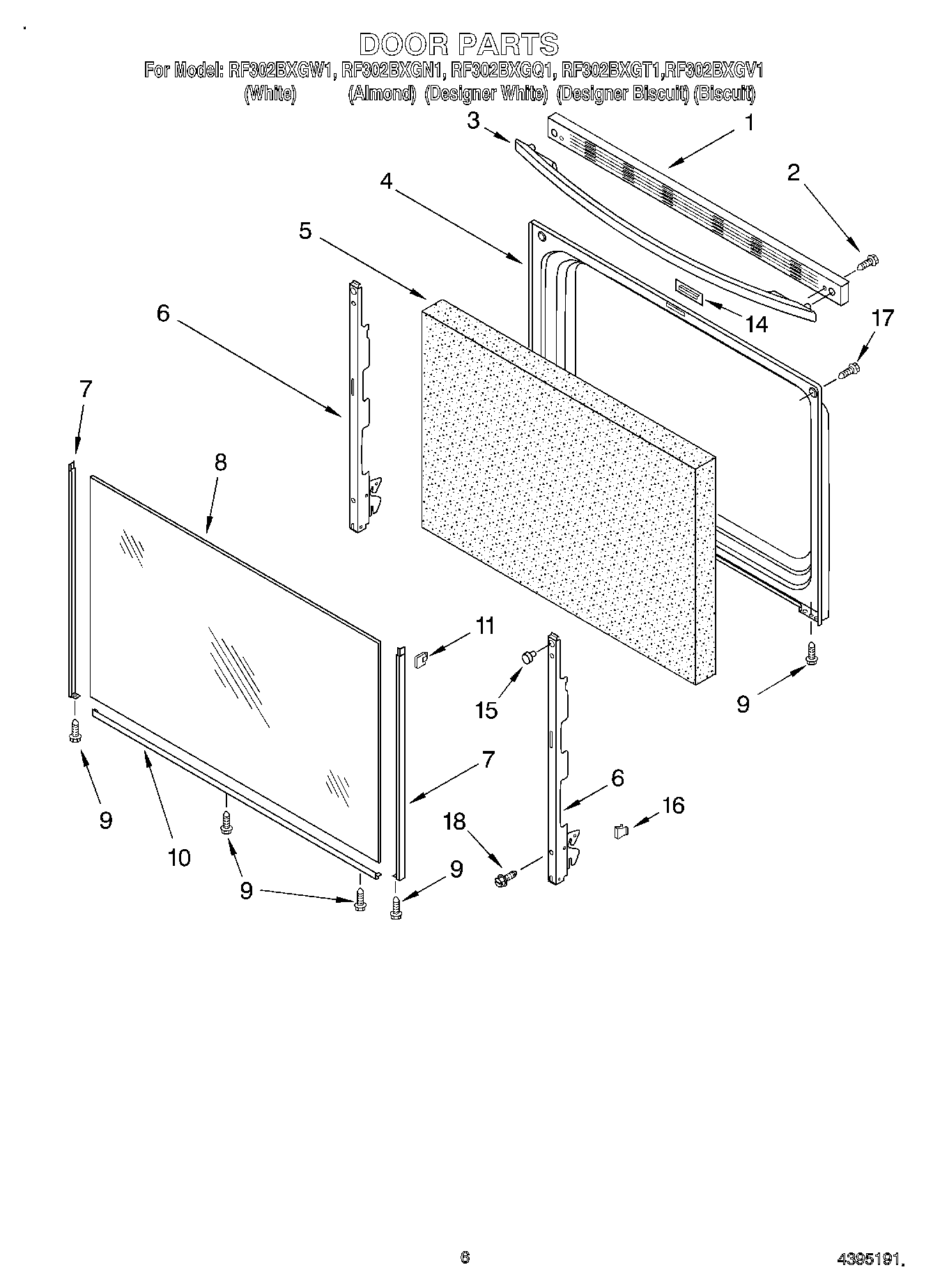

RF302BXGQ1 05 – DOOR

RF302BXGQ1 05 – DOOR

Written by

in

RF302BXGQ1 05 – DOOR

Products

PositionProduct
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3Handle, Door (Biscuit)
3WPW10202217 Whirlpool Door Handle
3WPW10202216 Whirlpool Door Handle
4Liner, Door
5WPW10278991 Whirlpool Insulation
6Hinge, Door (2)
78184860 Whirlpool Oven Door Trim
8Glass, Door (Biscuit)
8Glass, Door (Black)
8Glass, Door (White)
9W10491985 Whirlpool Screw
108184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
108184858 Whirlpool Door Trim
11Clip, Glass (4)
14Plug, Door
15238614 Whirlpool Bumper Hinge
16WP3196925 Whirlpool Clip Assembly
17WP179051 Whirlpool Screw
18WP3196174 Whirlpool Screw
181
188212471 Whirlpool Oven Paint
18Wire (14 Ga. 200 c Brown)
183184020 Whirlpool Oven Wire
18Grease
188273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
18WP3196154 Whirlpool Screw Assembly
18WPL 8273272
18W11396691 Whirlpool Element Receptacle and Wire Kit
18350942 Whirlpool Spray Paint
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Yellow)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18WPL 799832
18PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
18511873 Whirlpool Refrigerator Paint
184392901 Whirlpool Biscuit Spray Paint
184392899 Whirlpool Biscuit Touch-Up Paint
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18WP3196175 Whirlpool Screw
18Wire, 25` Roll (Black 14 Ga.)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18Clip, Ground Wire
183400964 Whirlpool Oven Clip
18814381 Whirlpool Pin
18W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18285006 Whirlpool Spray
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18350930 Whirlpool White Spray Paint
