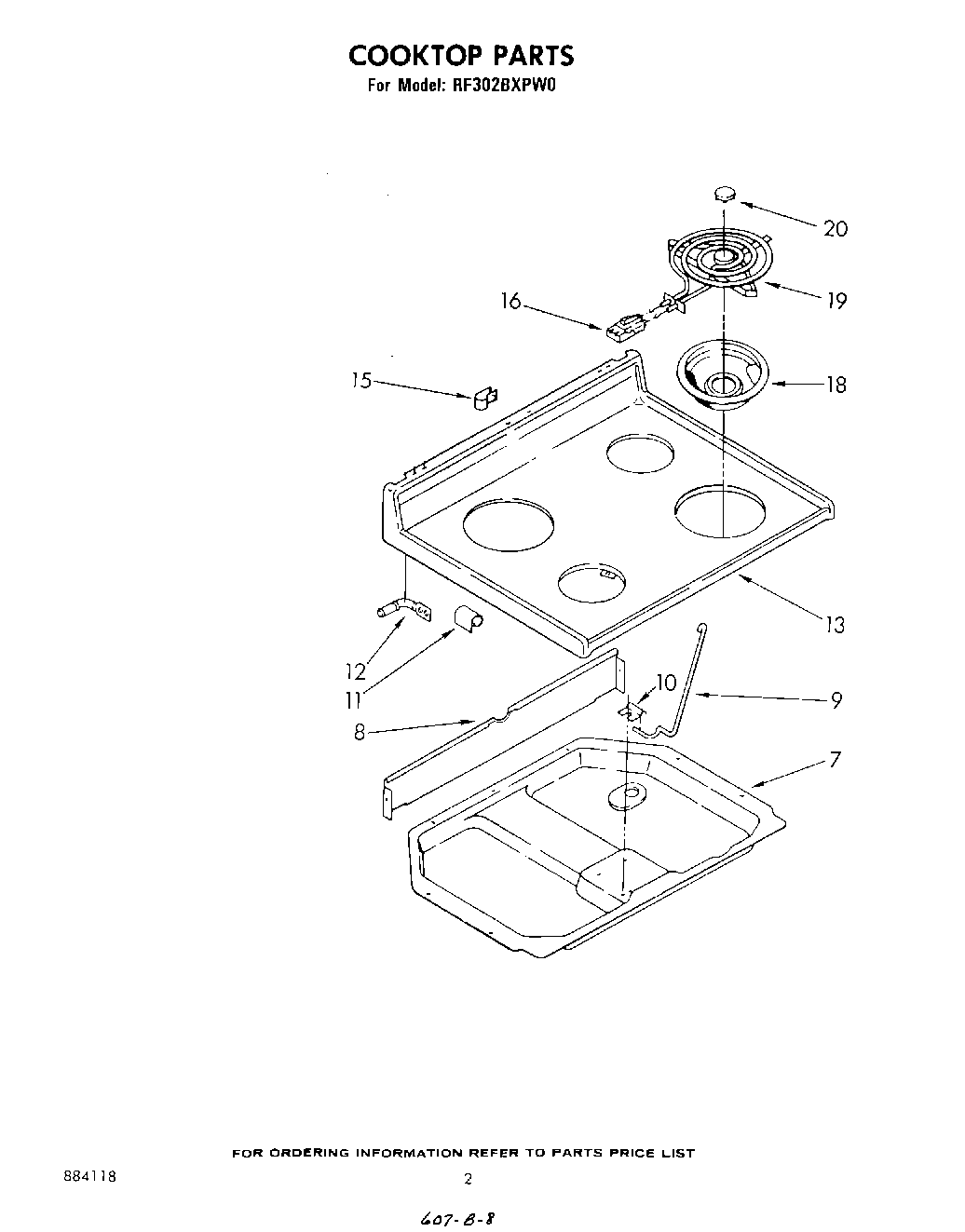

RF302BXPW0 02 – COOKTOP

Products

Position	Product
7	Burner Box
8	Shield, Wiring
9	Rod, Cooktop
10	WP3390631 Whirlpool Screw
10	Retainer, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Platinum)
13	Cooktop (Toast)
13	Cooktop (Almond)
13	Cooktop (White)
13	Cooktop (Harvest Gold)
15	WP308605 Whirlpool Refrigerator Clamp
15	SCREW
16	WP313808 Whirlpool Screw
16	BURNER RECEPTACLE KIT
18	DRIP BOWL 8" W/HOLE CHROME
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	WP660533 Whirlpool Oven 8" Surface Element
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
