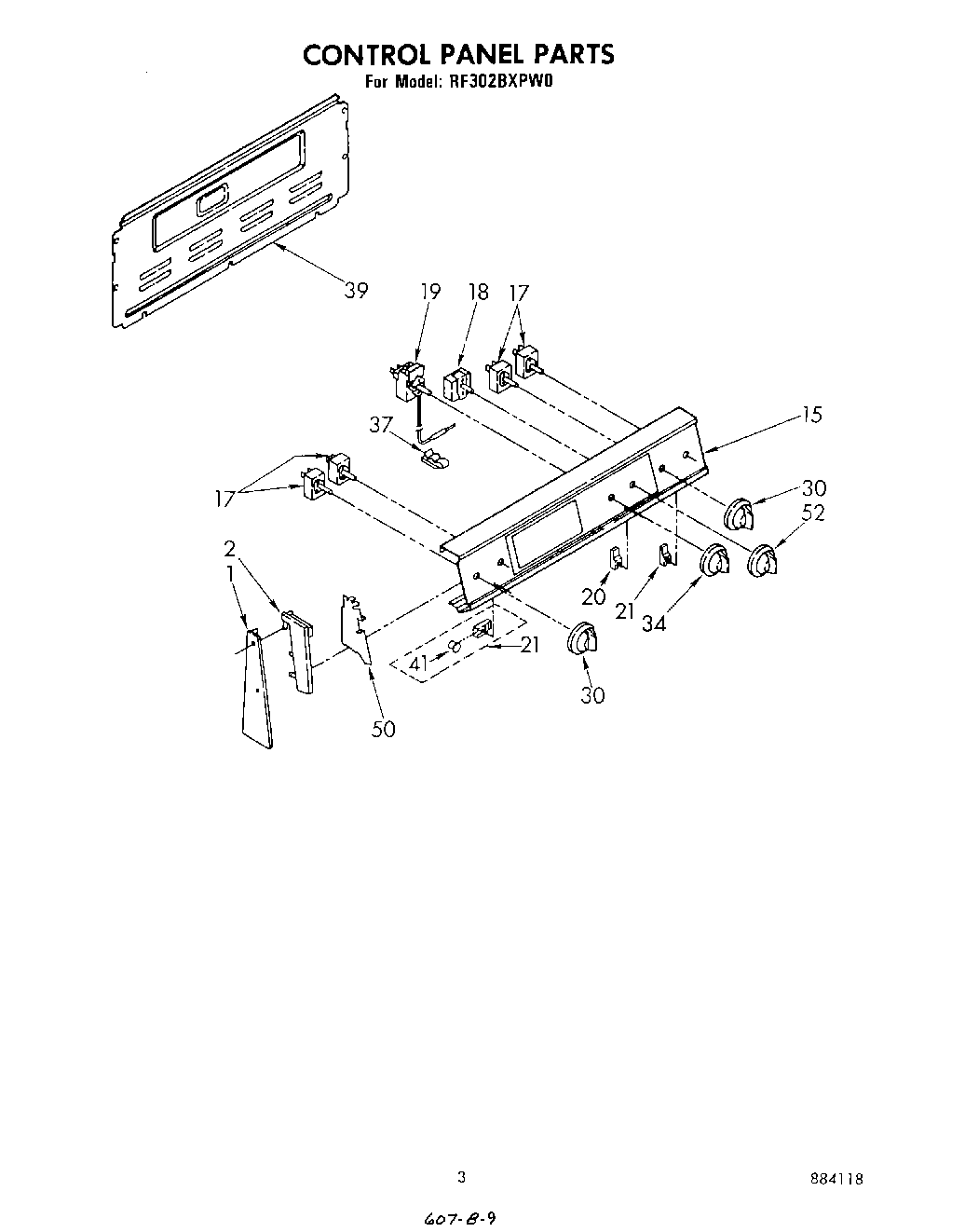

RF302BXPW0 03 – CONTROL PANEL
Written by
in
RF302BXPW0 03 – CONTROL PANEL
Products
Position
Product
1
WP3390631 Whirlpool Screw
1
Screw 10-32×7/16“
1
Screw 10-32×1“
2
End Cap L.H.
2
End Cap R.H.
2
Screw,
15
Washer
15
Panel, Control (Gold)
15
Panel, Control (Almond)
15
Panel, Control (Toast)
15
Panel, Control (White)
15
Panel, Control (Platinum)
17
WP3149404 Whirlpool Oven Surface Element Switch
17
WP3149400 Whirlpool Oven Infinite Switch
18
WP486579 Whirlpool Air Conditioner Screw
18
Switch, Selector
19
Thermostat, Oven
19
WP313808 Whirlpool Screw
20
Light, Indicator
21
Light, Indicator (Surface Unit (2))
30
Knob, Switch (4)
34
Knob, Switch
34
Screw
37
Clip, Tube
39
Harness-Conduit Asm.
39
SCREW
41
Lens, Amber
50
WP965173 Whirlpool Dishwasher Screw
50
Shield (2)
52
Knob, Selector
←
