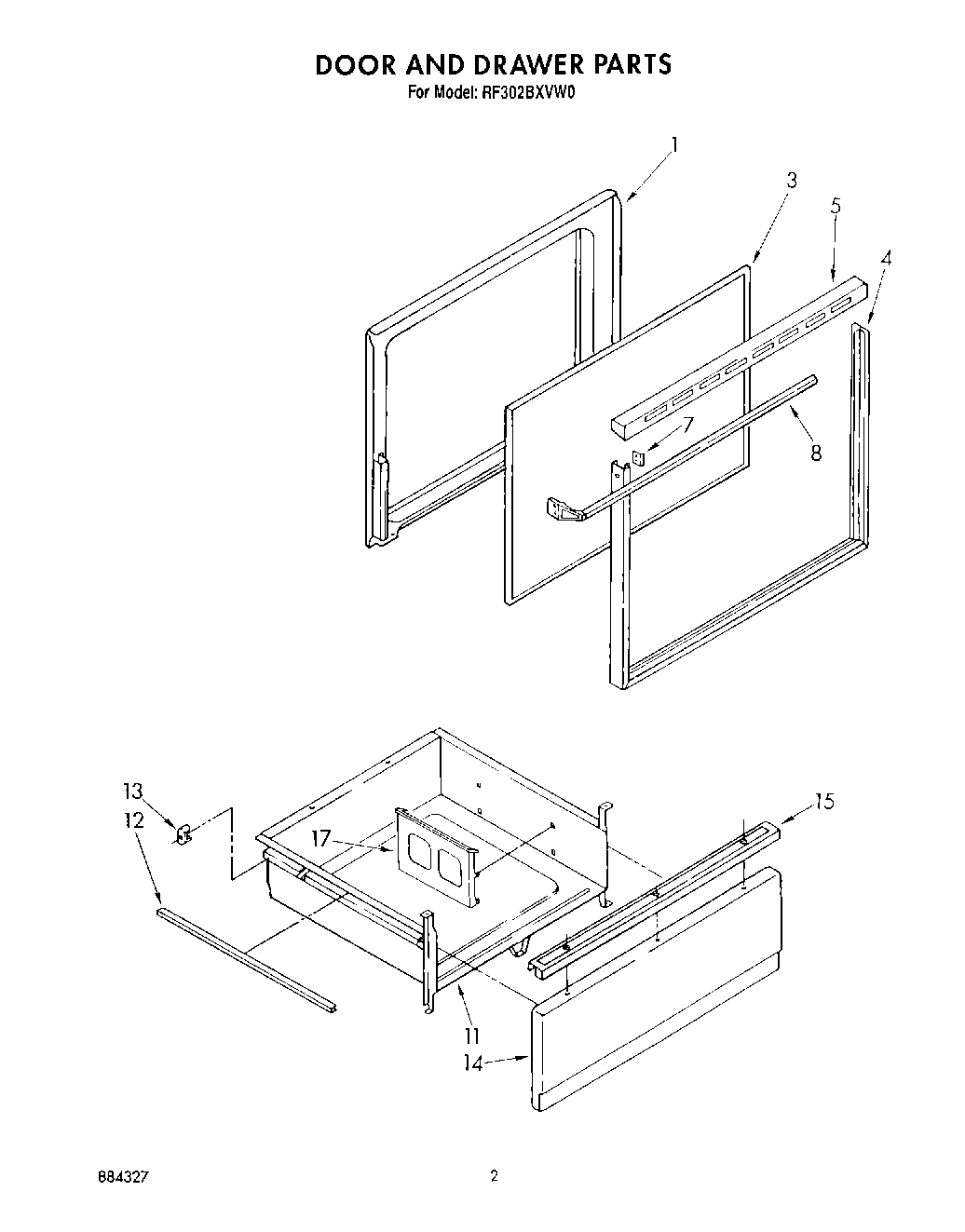

RF302BXVF0 02 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
1	Back Splash (Screw (4) 10AB x 1/2“)
3	Panel, Door (Black Glass)
4	WP355515 Whirlpool Screw
4	Frame, Door
5	Top, Door (Black Model)
7	Clip, Mtg (2)
8	Handle, Oven Door
11	Drawer, Utility
12	Protector, Drawer (2)
13	Screw, 10A x 1/2 (2) (Black)
13	Glide, Rear (2)
14	Panel Drawer (White)
14	Panel, Drawer (Almond)
14	WP488787 Whirlpool Refrigerator Screw
14	Panel, Drawer (Platinum)
14	Panel Drawer (Harvest Gold)
14	Panel, Drawer (Toast)
15	WP488627 Whirlpool Refrigerator Screw
15	Handle, Drawer
17	Rack, Literature
