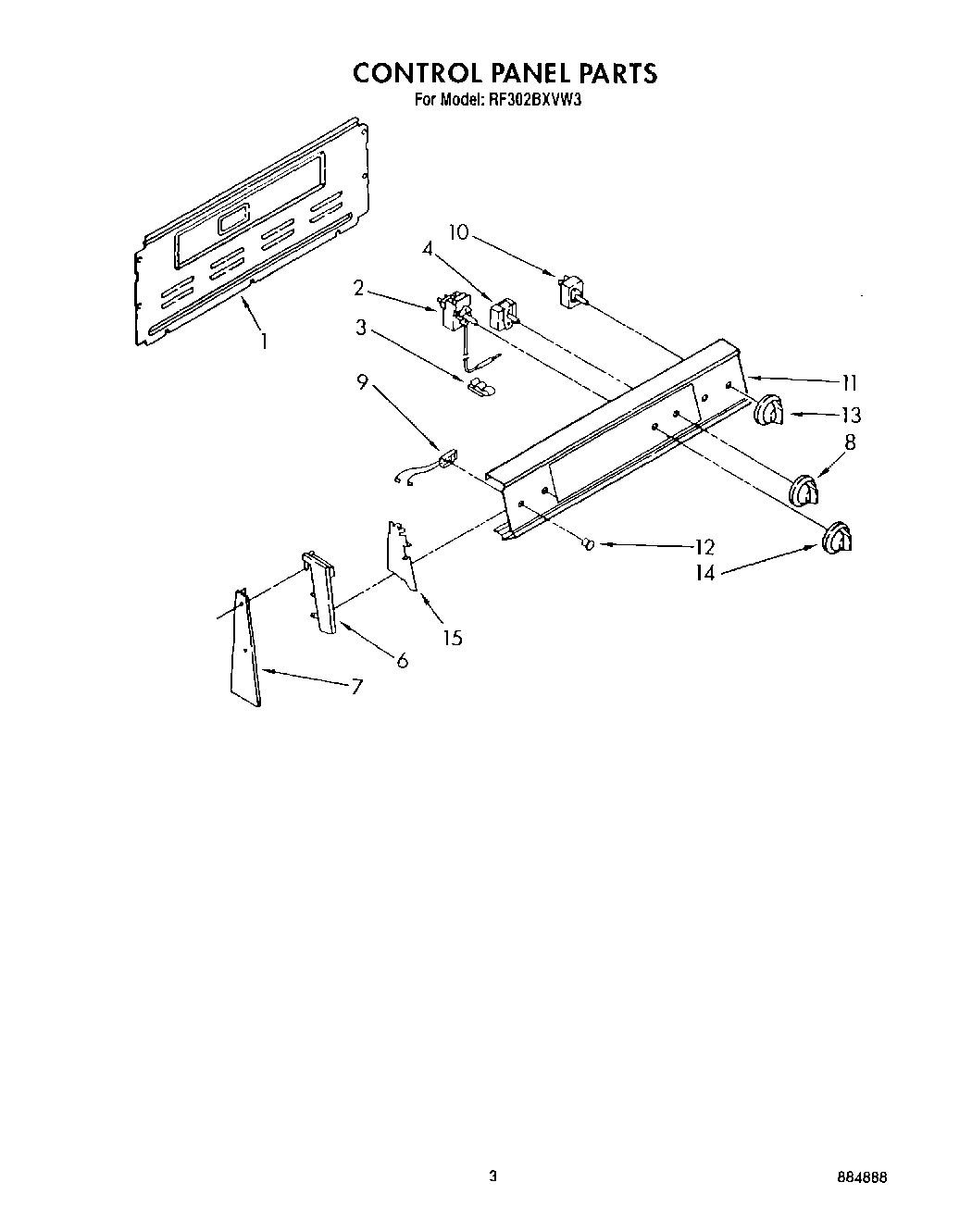

RF302BXVG3 03 – CONTROL PANEL , LITERATUREadmin2025-04-26T12:51:14+00:00RF302BXVG3 03 – CONTROL PANEL , LITERATURE
Products
| Position | Product |
|---|
| WPL LIT3149507 |
| List, Parts |
| Guide, Use & Care |
| Instructions, Installation |
| Wiring Diagram |
| 1 | Harness-Conduit Asm. |
| 2 | Thermostat, Oven |
| 2 | WP313808 Whirlpool Screw |
| 2 | Thermostat, Oven (Alt.) |
| 2 | Thermostat, Oven (Alt.) |
| 3 | Clip, Tube |
| 4 | Switch, Selector |
| 6 | End Cap L.H. |
| 6 | End Cap R.H. |
| 6 | Screw, |
| 7 | Screw 10-32x1`` |
| 7 | Screw 10-32x7/16`` |
| 7 | SCREW |
| 7 | WP3390631 Whirlpool Screw |
| 8 | Knob, Selector |
| 9 | Light, Indicator (250V) |
| 9 | Light, Indicator (Surface Unit (2)) |
| 10 | WP3149404 Whirlpool Oven Surface Element Switch |
| 10 | WP486579 Whirlpool Air Conditioner Screw |
| 10 | SWITCH-INF |
| 11 | Panel, Control (Almond) |
| 11 | Support-Top Burner |
| 11 | Washer |
| 11 | Panel, Control (Gold) |
| 12 | Lens, Amber |
| 13 | WP3149983 Whirlpool Knob |
| 14 | Knob, Temperature |
| 15 | Shield (2) |
| 15 | WP965173 Whirlpool Dishwasher Screw |
