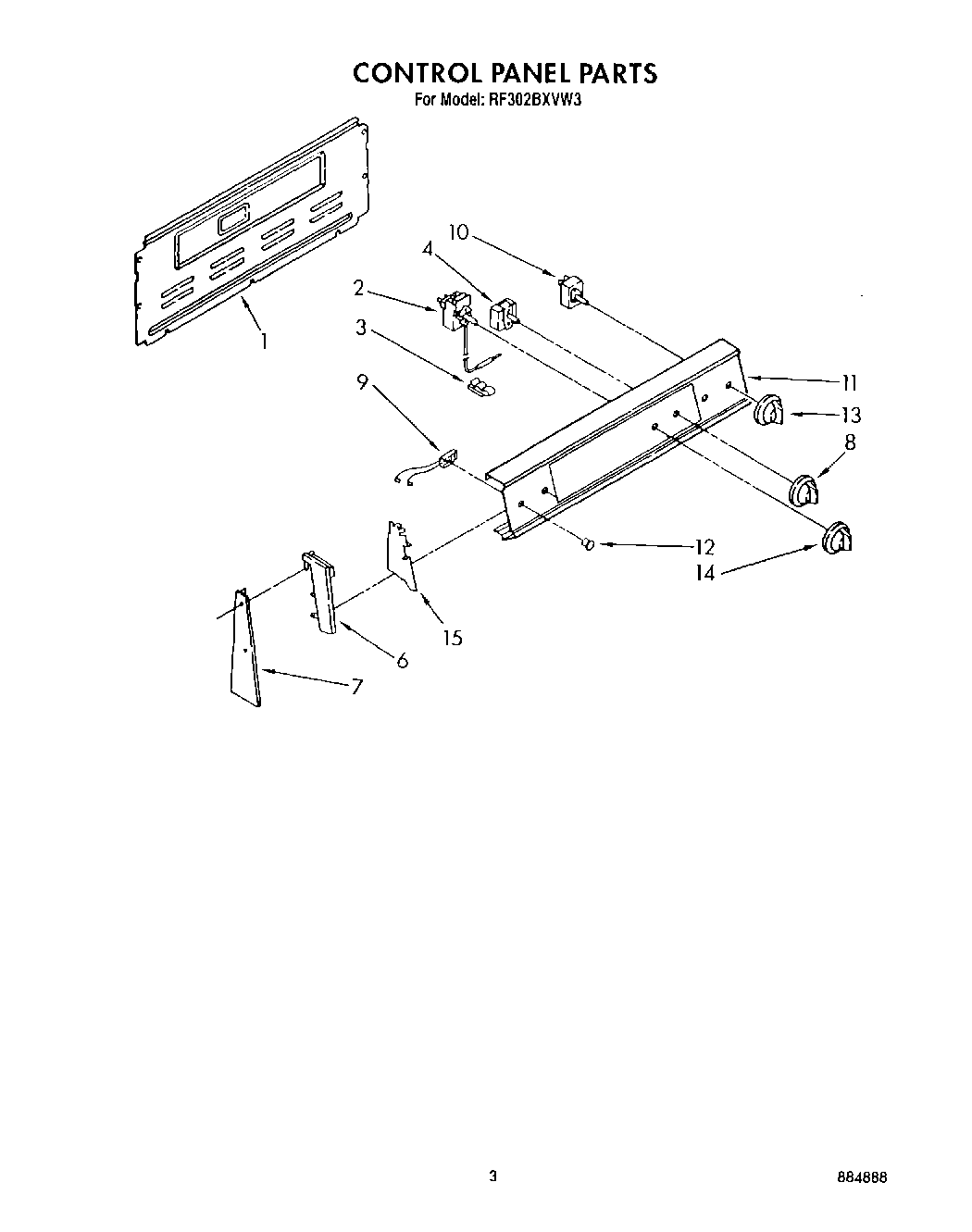

RF302BXVN3 03 – CONTROL PANEL , LITERATURE

RF302BXVN3 03 – CONTROL PANEL , LITERATURE

Written by

in

RF302BXVN3 03 – CONTROL PANEL , LITERATURE

Products

PositionProduct
WPL LIT3149507
List, Parts
Guide, Use & Care
Instructions, Installation
Wiring Diagram
1Harness-Conduit Asm.
2Thermostat, Oven
2WP313808 Whirlpool Screw
2Thermostat, Oven (Alt.)
2Thermostat, Oven (Alt.)
3Clip, Tube
4Switch, Selector
6End Cap L.H.
6End Cap R.H.
6Screw,
7Screw 10-32×1“
7Screw 10-32×7/16“
7SCREW
7WP3390631 Whirlpool Screw
8Knob, Selector
9Light, Indicator (250V)
9Light, Indicator (Surface Unit (2))
10WP3149404 Whirlpool Oven Surface Element Switch
10WP486579 Whirlpool Air Conditioner Screw
10SWITCH-INF
11Panel, Control (Almond)
11Support-Top Burner
11Washer
11Panel, Control (Gold)
12Lens, Amber
13WP3149983 Whirlpool Knob
14Knob, Temperature
15Shield (2)
15WP965173 Whirlpool Dishwasher Screw
