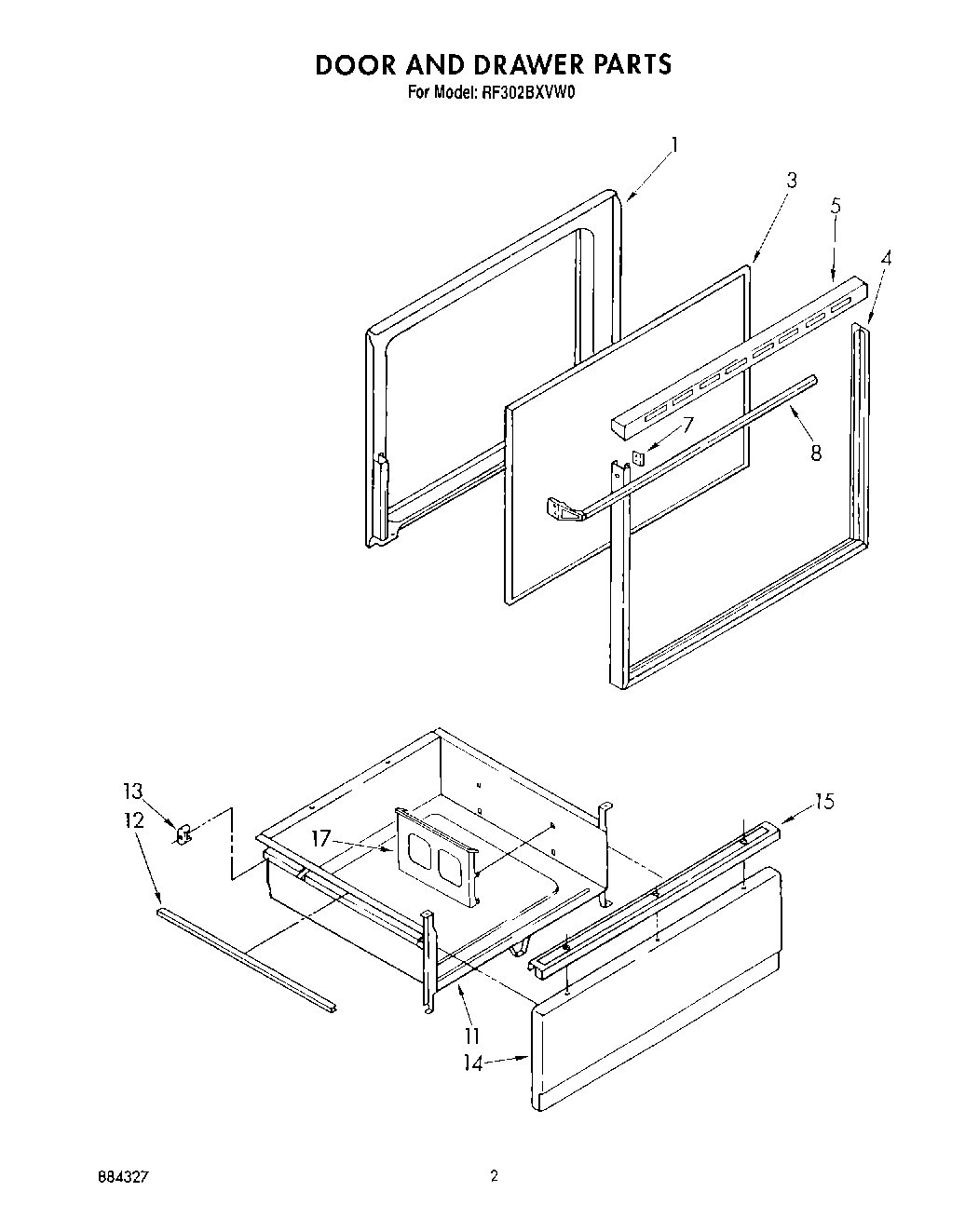

RF302BXVW0 02 – DOOR AND DRAWERadmin2025-04-26T11:05:51+00:00RF302BXVW0 02 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 1 | Back Splash (Screw (4) 10AB x 1/2``) |
| 3 | Panel, Door (Black Glass) |
| 4 | WP355515 Whirlpool Screw |
| 4 | Frame, Door |
| 5 | Top, Door (Black Model) |
| 7 | Clip, Mtg (2) |
| 8 | Handle, Oven Door |
| 11 | Drawer, Utility |
| 12 | Protector, Drawer (2) |
| 13 | Screw, 10A x 1/2 (2) (Black) |
| 13 | Glide, Rear (2) |
| 14 | Panel Drawer (White) |
| 14 | Panel, Drawer (Almond) |
| 14 | WP488787 Whirlpool Refrigerator Screw |
| 14 | Panel, Drawer (Platinum) |
| 14 | Panel Drawer (Harvest Gold) |
| 14 | Panel, Drawer (Toast) |
| 15 | WP488627 Whirlpool Refrigerator Screw |
| 15 | Handle, Drawer |
| 17 | Rack, Literature |
