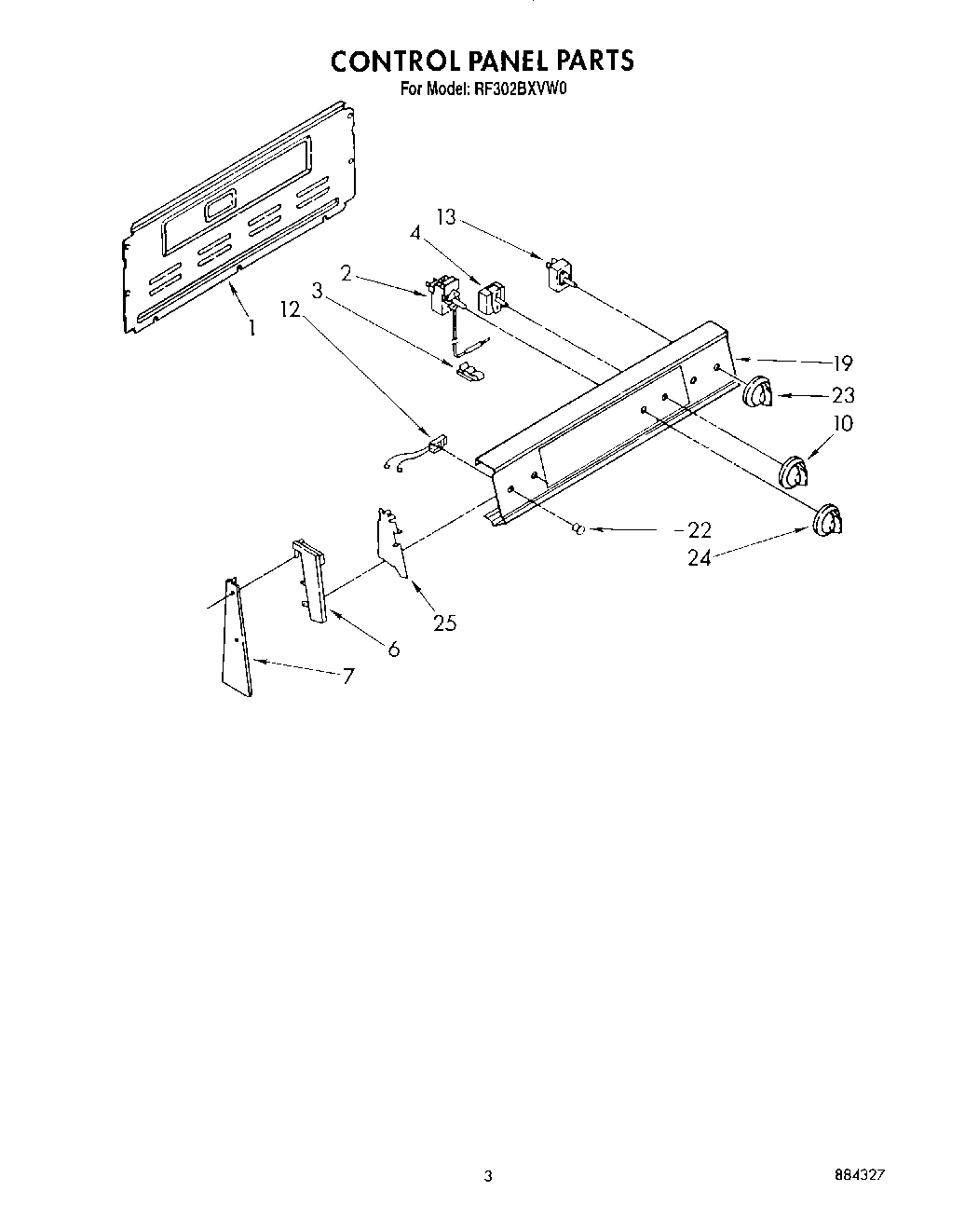

RF302BXVW0 03 – CONTROL PANELadmin2025-04-26T11:04:06+00:00RF302BXVW0 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| Instructions, Installation |
| List, Parts |
| WP313808 Whirlpool Screw |
| Guide, Use & Care |
| WPL LIT313358 |
| 1 | Harness-Conduit Asm. |
| 2 | Thermostat, Oven (Alt.) |
| 2 | Thermostat, Oven |
| 2 | Thermostat, Oven (Alt.) |
| 3 | Clip, Tube |
| 4 | Switch, Selector |
| 6 | Screw, |
| 6 | End Cap R.H. |
| 6 | End Cap L.H. |
| 7 | Screw 10-32x7/16`` |
| 7 | Screw 10-32x1`` |
| 7 | SCREW |
| 7 | WP3390631 Whirlpool Screw |
| 10 | Knob, Selector |
| 10 | WP688805 Whirlpool Spring Clip |
| 12 | Light, Indicator (250V) |
| 12 | Light, Indicator (Surface Unit (2)) |
| 13 | WP486579 Whirlpool Air Conditioner Screw |
| 13 | WP3149404 Whirlpool Oven Surface Element Switch |
| 13 | SWITCH-INF |
| 19 | Panel, Control (Platinum) |
| 19 | Panel, Control (Gold) |
| 19 | Panel, Control (Almond) |
| 19 | Panel, Control (White) |
| 19 | Washer |
| 19 | Panel, Control (Toast) |
| 22 | Lens, Amber |
| 23 | Knob, Switch (4) |
| 24 | Screw |
| 24 | Knob, Switch |
| 25 | WP965173 Whirlpool Dishwasher Screw |
| 25 | Shield (2) |
