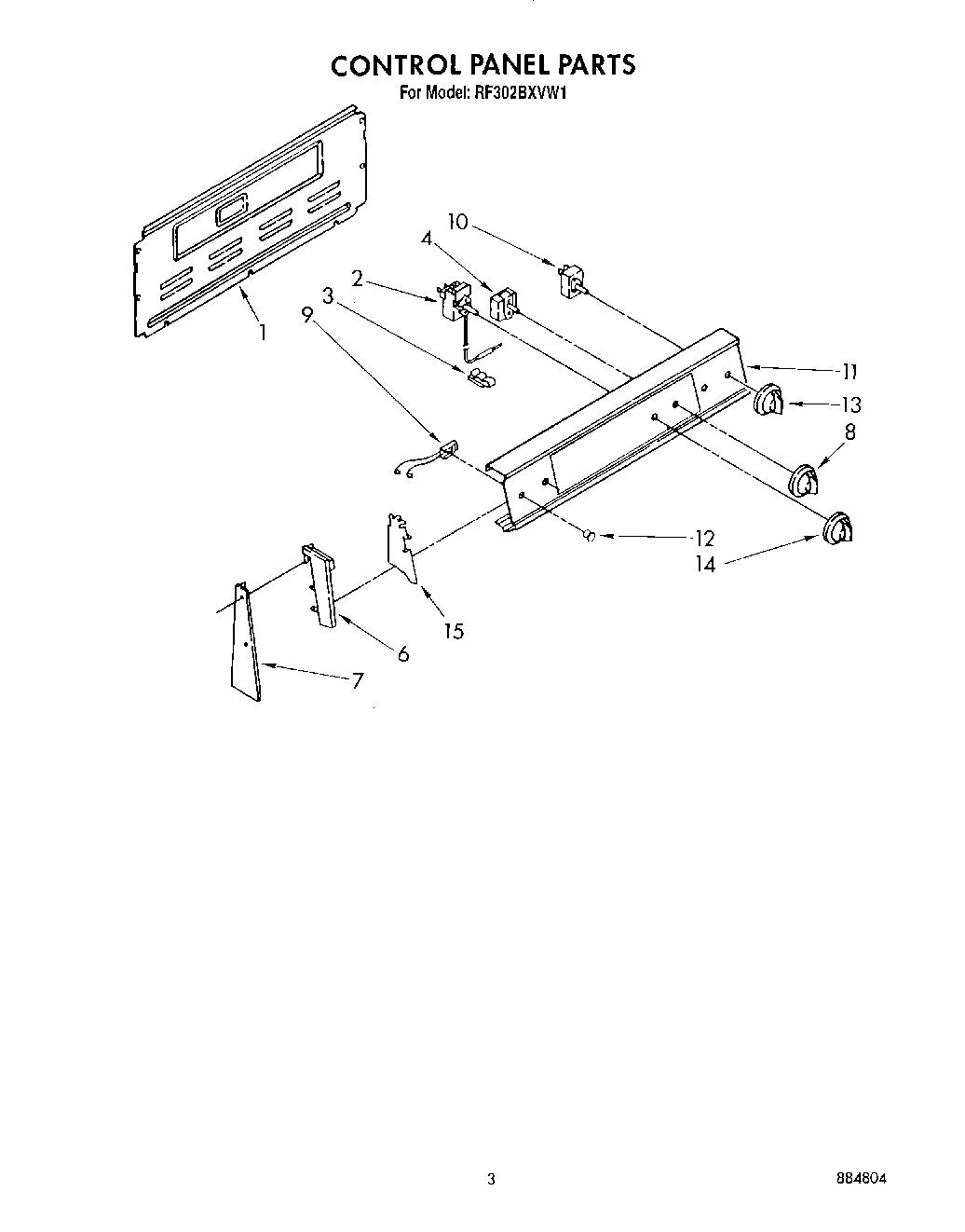

RF302BXVW1 03 – CONTROL PANEL

Products

Position	Product
	Guide, Use & Care
	Wiring Diagram
	List, Parts
	WPL LIT3149507
	WPL LIT3148614
	WP313808 Whirlpool Screw
1	Harness-Conduit Asm.
2	Thermostat, Oven
2	Thermostat, Oven (Alt.)
2	Thermostat, Oven (Alt.)
3	Clip, Tube
4	Switch, Selector
6	End Cap R.H.
6	End Cap L.H.
6	Screw,
7	Screw 10-32×7/16“
7	Screw 10-32×1“
7	SCREW
7	WP3390631 Whirlpool Screw
8	Knob, Selector
9	Light, Indicator (250V)
9	Light, Indicator (Surface Unit (2))
10	WP486579 Whirlpool Air Conditioner Screw
10	SWITCH-INF
10	WP3149404 Whirlpool Oven Surface Element Switch
11	Washer
11	Panel, Control (White)
11	Panel, Control (Almond)
11	Panel, Control (Gold)
12	Lens, Amber
13	WP3149983 Whirlpool Knob
14	Knob, Temperature
15	WP965173 Whirlpool Dishwasher Screw
15	Shield (2)
